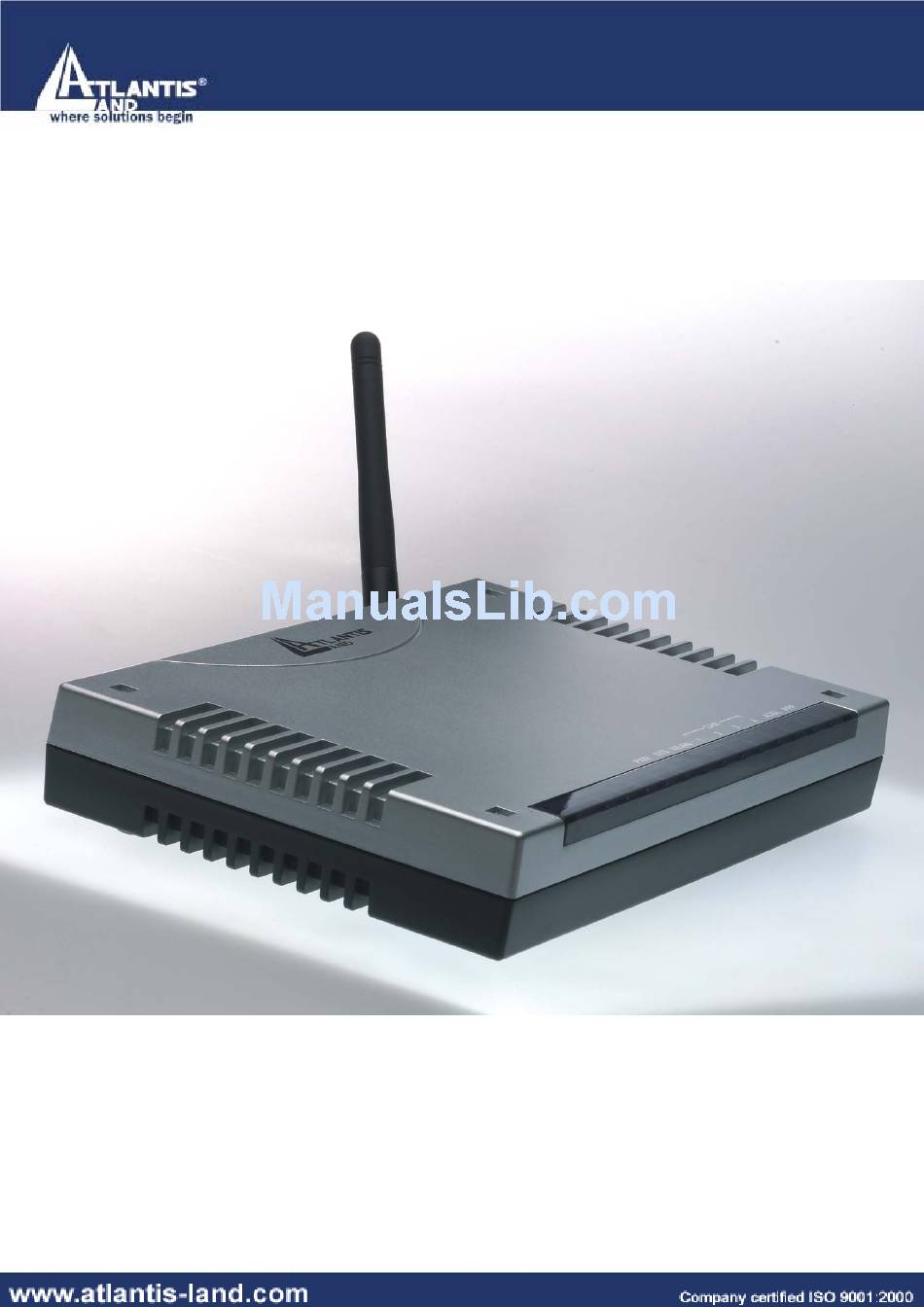

Page 1: Wireless Router
WIRELESS ROUTER ADSL A02-RA240-W54 A02-RA210-W54 USER’S MANUAL A02-RA24(1)0-W54_ME01... - Page 3 WIRELESS ROUTER ADSL Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.
-
Page 4: Table Of Contents
WIRELESS ROUTER ADSL TABLE OF CONTENTS ..........1 CHAPTER 1 1.1 A ADSL ................1 VERVIEW OF THE IRELESS OUTER 1.2 P ........................1 ACKAGE ONTENTS 1.3 W ADSL F ..................... 2 IRELESS OUTER EATURES 1.4 W ADSL A ..................4 IRELESS OUTER PPLICATION... - Page 5 WIRELESS ROUTER ADSL 3.8.2.4.3 Upgrade........................32 3.8.2.4.4 Factory Settings ...................... 33 3.8.2.4.5 Restart ........................33 3.8.2.5 Firewall .......................... 34 3.8.2.5.1 Packet Filering ......................34 3.8.2.5.2 Bridge Filtering....................... 36 3.8.2.5.3 Intrusion Detection....................36 3.8.2.5.4 Block Wan Request....................37 3.8.2.5.5 URL Blocking......................37 3.8.2.6 VPN..........................
-
Page 7: Chapter 1
WIRELESS ROUTER ADSL Chapter 1 Introduction 1.1 An Overview of the Wireless Router ADSL Broadband Sharing and IP sharing The Wireless Router ADSL supports 4 ports 10/100 Mbps auto-negotiating Fast Ethernet for connection to your local area network (LAN) and downstream (with built-in ADSL modem) rate up to 8Mbps. -
Page 8: Wireless Router Adsl Features
WIRELESS ROUTER ADSL 1.3 Wireless Router ADSL Features Wireless ADSL Router provides the following features: • ADSL Multi-Mode Standard: Supports downstream transmission rates of up to 8Mbps and upstream transmission rates of up to 1024Kbps. It also supports rate management that allows ADSL subscribers to select an Internet access speed suiting their needs and budgets. - Page 9 WIRELESS ROUTER ADSL • Dynamic Domain Name System (DDNS): The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN IP address. For example, to use the service, you must first apply an account from this free Web server http://www.dyndns.org/.
-
Page 10: Wireless Router Adsl Application
WIRELESS ROUTER ADSL 1.4 Wireless Router ADSL Application... -
Page 11: Chapter 2
Place the ADSL Wireless Router on a stable surface. Only use the power adapter that comes with the package. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections. -
Page 12: The Rear Ports
WIRELESS ROUTER ADSL 2.3 The Rear Ports PORT Meaning LINE Connect the supplied RJ-11 cable to this port (RJ-11) when connecting to the ADSL/telephone network. Connect an UTP Ethernet cable to one of the (4 *RJ-45)* four LAN ports when connecting to a PC or an office/home network of 10Mbps or 100Mbps. -
Page 13: Chapter 3
WIRELESS ROUTER ADSL Chapter 3 Configuration The ADSL Wireless Router can be configured with your Web browser. The web browser is included as a standard application in the following operation systems, UNIX, Linux, Mac OS, Windows 95/98/NT/2000/Me, and etc. The product provides a very easy and user-friendly interface for configuration. -
Page 14: Configuring Pc In Windows
WIRELESS ROUTER ADSL 3.3 Configuring PC in Windows For Windows 95/98/ME 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) in your PC. - Page 15 WIRELESS ROUTER ADSL 5. Then select the DNS Configuration tab. 6. Select the Disable DNS radio button and click “OK” to finish the configuration.
-
Page 16: For Windows Nt4.0
WIRELESS ROUTER ADSL For Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click “OK”. -
Page 17: For Windows 2000
WIRELESS ROUTER ADSL For Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click LAN Area Connection. 3. In the LAN Area Connection Status window, click Properties. - Page 18 WIRELESS ROUTER ADSL Select Internet Protocol (TCP/IP) and click Properties. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. Click “OK” to finish the configuration.
-
Page 19: For Windows Xp
WIRELESS ROUTER ADSL For Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections. 2. Double-click Local Area Connection 3. In the LAN Area Connection Status window, click Properties. - Page 20 WIRELESS ROUTER ADSL 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons 6. Click “OK” to finish the configuration.
-
Page 21: Factory Default Settings
• Wireless: SSSID= wlan-ap, Channel=6, WEP=disable 3.4.1 Username and Password The default username and password are admin and atlantis respectively. If you ever forget the password to log in, you may press the RESET button to restore the factory default settings.. -
Page 22: Information From The Isp
Open the web browser, enter the local port IP address of this ADSL Wireless Router, which defaults at http://192.168.1.254, and click “Go”, a username and password window will appear. The default username & password are admin & atlantis, in respectively... -
Page 23: Status
WIRELESS ROUTER ADSL You will get a status report web page when login successfully. At the configuration homepage, the left navigation page where bookmarks are provided links you directly to the desired setup page, including: • Status (ADSL, LAN, PPP, VPN connect Status, Learned MAC Table, Routing Table, System Log, Security Log) •... -
Page 24: Adsl Status
WIRELESS ROUTER ADSL 3.6.1.1 ADSL Status the status of your ADSL connection. It will refresh every two seconds. -
Page 25: Lan Status
WIRELESS ROUTER ADSL 3.6.1.2 LAN Status Displays the status of your Local Area Network (LAN) connection. Display the status of TCP. This screen will automatically refresh every two seconds. 3.6.1.3 PPP Status Displays the status of your PPP connection. It will refresh every ten seconds. 3.6.1.4 VPN Connect Status When you click the VPN Connect Status, it gives you a quick view to know the ADSL Router’s current status. -
Page 26: Learned Mac Table
Aging Timeout: Enter the time period for the router to memorize MAC addresses. 3.6.1.5 Routing Table Display the current routing paths of A02-RA240-W54/A02-RA210-W54. 3.6.1.6 System Log Display the system logs cumulated till the present time. You can trace the historical information... -
Page 27: Security Log
WIRELESS ROUTER ADSL 3.8.1.7 Security Log Display the information of security logs. If hacker attacks your sever, he will be isolated by the firewall function and the router will record related information. Hence, you know where the hacker comes from. -
Page 28: Configuration
WIRELESS ROUTER ADSL 3.8.2 CONFIGURATION When you click this item, you get following sub-items to configure Wireless Router ADSL: • WAN • LAN • Wireless • System • Firewall • VPN • Virtual Server • Advanced 3.8.2.1 WAN Before you start installing this device, you have to check with your ISP what kind of service (connection method) is provided such as PPPoE, PPPoA, RFC1483 bridged or routed, IPoA. - Page 29 WIRELESS ROUTER ADSL PPPoE(RFC 2516) / PPPoA(RFC 2364) Pvc0 is set as default and then press submit. The screens below contain settings for the WAN interface toward Internet. Virtual Circuit • Virtual Circuit=Enabled • Bridge=disabled • IGMP=disabled • Encapsulation= There are 5 ways :PPPoE VC-Mux, PPPoE LLC, PPPoE None, PPPoA VCMux, and PPPoA LLC.
- Page 30 WIRELESS ROUTER ADSL MAC Spoofing • MAC Spoofing, The MAC Spoofing is for solving the scenario when the ISP only recognizing the specified MAC address. • MAC Address= 00:00:00:00:00:00 Static IP Settings • Static IP Address=0.0.0.0 • Subnet Mask=0.0.0.0 • Gateway=0.0.0.0 •...
- Page 31 WIRELESS ROUTER ADSL MRU: Maximum Receive Unit indicates the peer of PPP connection the maximum size • of the PPP information field this device can be received. The default value is 1492 and is used in the beginning of the PPP negotiation. In the normal negotiation, the peer will accept this MRU and will not send packet with information field larger than this value.
- Page 32 WIRELESS ROUTER ADSL RFC 1483 Routing / Classical IP over ATM (RFC 1577) Pvc0 is set as default and then press submit. The screens below contain settings for the WAN interface toward Internet. Virtual Circuit • Virtual Circuit=Enabled • Bridge=disabled •...
- Page 33 WIRELESS ROUTER ADSL MAC Spoofing • MAC Spoofing, The MAC Spoofing is for solving the scenario when the ISP only recognizing the specified MAC address. • MAC Address= 00:00:00:00:00:00 Static IP Settings • Static IP Address= Enter the information provided by your ISP. •...
-
Page 34: Lan
WIRELESS ROUTER ADSL 3.8.2.2 LAN This screen contains settings for LAN interface attached to the LAN port. 3.8.2.2.1 LAN Configuration IP Address: Default at 192.168.1.254. This is the device IP address in LAN site. If you plan to change it to another IP address to a different ange of IP subnet. -
Page 35: Wireless
WIRELESS ROUTER ADSL Press again Submit. to reboot the Router. 3.8.2.3 Wireless When you click this item, you get following sub-items to configure Wireless Router ADSL: • Basic setting • Advanced setting • Wlan security 3.8.2.3.1 Base Settings ESSID: Enter the unique ID given to the Access Point (AP), which is already built-in to the router’s wireless interface. -
Page 36: Advanced Wireless Configuration
WIRELESS ROUTER ADSL Security: WEP Encryption: To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers highly secure data encryption, known as WEP. If you require high security for transmissions, there are two alternatives to select from: WEP 64 and WEP 128. -
Page 37: Wi-Fi Protected Access(Wpa)
WIRELESS ROUTER ADSL 3.8.2.3.3 Wi-FI Protected Access(WPA) WPA-PSK: • Data Encryption: TKIP (Temporal Key Integrity Protocol) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. • WPA Pre-Shared Key: The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters. -
Page 38: System
If you ever forget the password to log in, you may press the RESET button up to 10 seconds to restore the factory default settings. (user="admin", password="Atlantis") Please note that the maximum input for password is 16 alphanumeric characters long. Since it is case sensitive, be sure that you remember whether a letter is in upper or lower case and make sure that your Caps Lock is off. -
Page 39: Factory Settings
WIRELESS ROUTER ADSL Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections. Click Image Download. Press the Sfoglia button to specify the path of the firmware file. Then, click Upload to start upgrading. -
Page 40: Firewall
WIRELESS ROUTER ADSL 3.8.2.5 Firewall Your router includes a full DoS firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation. Please see the WAN configuration section for more details on NAT) the router acts as a “natural”... - Page 41 WIRELESS ROUTER ADSL Packet filtering function enables you to configure your router to check specified internal/external user (IP address) from Internet access, or you can disable specific service request (Port number) to /from Internet. This configuration program allows you to set up different filter rules up to 10 for different users based on their IP addresses or their network Port number.
-
Page 42: Bridge Filtering
WIRELESS ROUTER ADSL 3.8.2.5.2 Bridge Filtering MAC filtering function enables you to configure your ADSL Firewall Router to block internal user (MAC address) from Internet access. Enable / Disable: Check Enable / Disable radio button to active / disable, in respectively, the MAC address filter function. -
Page 43: Block Wan Request
WIRELESS ROUTER ADSL 3.8.2.5.4 Block Wan Request The “Block WAN Request” is a stand-alone function and not relate to whether security enable or disable. Mostly it is for preventing any scan tools from WAN site by hacker. 3.8.2.5.5 URL Blocking URL filter rules allow you to prevent users on your network from accessing particular websites by their URL. - Page 44 WIRELESS ROUTER ADSL For example, if the URL is http://www.atlantis-land.com/start.html, it will be dropped as the keyword “start” occurs in the URL. Domains Filtering: This function checks the domain name in URLs accessed against your list of domains to block or allow.
-
Page 45: Vpn
WIRELESS ROUTER ADSL 3.8.2.6 VPN The router supports IPSec VPN to establish secure, end-to-end private network connections over a public networking infrastructure. Click on Submit. Remote: • Remote Gateway IP: The IP address of the remote VPN device that is connected and establishes a VPN tunnel. - Page 46 WIRELESS ROUTER ADSL • 3DES: Stands for Triple Data Encryption Standard, it uses 168 (56*3) bits as an encryption method. Perfect Forward Secrecy: Choose whether to enable PFS using Diffie-Hellman publickey cryptography to change encryption keys during the second phase of VPN negotiation. This function will provide better security, but extends the VPN negotiation time.
-
Page 47: Ipsec Vpn
WIRELESS ROUTER ADSL 3.8.2.6.1 IPsec VPN The router supports IPSec VPN to establish secure, end-to-end private network connections over a public networking infrastructure. Remote LAN Office LAN Model Code A02-RA3+ A02-RA240-54G /A02-RA210-W54 Picture 69.121.1.31 69.121.1.32 LAN IP 192.168.1.X 192.168.2.X 255.255.255.0 255.255.255.0 Subnet Mask VPN IPSec... - Page 48 WIRELESS ROUTER ADSL • Remote LAN(A02-RA3+): • Office LAN(A02-RA240-W54):...
-
Page 49: Virtual Server
WIRELESS ROUTER ADSL 3.8.2.7 Virtual Server When you click Virtual Server, you get the following figure. Being a natural Internet firewall, this network router protects your network from being accessed by outside users. When it needs to allow outside users to access internal servers, e.g. Web server, FTP server, E-mail server or News server, this modem can act as a virtual server. - Page 50 WIRELESS ROUTER ADSL Application OutBound Inbound ICQ 98, 99a NetMeeting 2.1 a 3.01 1503 TCP, 1720 TCP VDO Live MIRC Cu-SeeMe 7648 TCP &UDP, 24032 UDP 7648 TCP &UDP, 24032 UDP PC AnyWhere 5632 UDP, 22 UDP, 5631 TCP, 5632 UDP, 22 UDP, 5631 TCP, 65301 TCP 65301 TCP Edonkey...
-
Page 51: Advanced
WIRELESS ROUTER ADSL 3.8.2.8 Advanced There are 9 items under the Advanced section: • ADSL • DNS • Dynamic DNS • NAT • RIP • SNMP • Static Route • Misc Configuration • Diagnostic Test 3.8.2.8.1 ADSL • Annex Mode Config: Default at User Select •... -
Page 52: Dynamic Dns
WIRELESS ROUTER ADSL 3.8.2.8.3 Dynamic DNS With Dynamic DNS service, a domain name can be translated into a dynamic IP address, which is often issued by ISP for dial-up service. A local server, such as Web server, Email server or FTP server, can then be easily accessed without knowing the changing IP address. - Page 53 WIRELESS ROUTER ADSL • NAT (Static): This option maps single WAN IP address to the local PC IP address. It is peer- to-peer mapping, one-to-one. For each WAN interface, only one local PC IP address can be associated with each WAN interface. Click the link Session Name Configuration to add the session name for WAN interface.
-
Page 54: Rip
WIRELESS ROUTER ADSL 3.8.2.8.5 RIP • RIP(Enable): Default at Disabled. • Supply Interval(30seconds): Time among 2 packets RIP • Expire Timeout(180seconds): Lead time before the timeout • Garbage Timeout(120 seconds) 3.8.2.8.6 SNMP Simple Network Management Protocol (SNMP) is an optional feature that may or may not be supported by your ADSL Wireless Router ADSL. -
Page 55: Static Route
WIRELESS ROUTER ADSL Trap Community: This is the password to access and view SNMP traps. The Trap Community can be up to 127 characters. Default is “trap community.” Trap SNMP Version: Select from Version 1 or Version 2. Default is Version 1. Trap IP: This is the IP address to which SNMP traps are sent. - Page 56 WIRELESS ROUTER ADSL Add: Click this button to add a new static routing. When you click this button, the next figure appears. Edit: Check the item you want to edit. Then, click the “Edit” button. Delete: Check the item you want to delete. Then, click the “Delete” button. Destination Subnet / Dest.
-
Page 57: Misc Configuration
WIRELESS ROUTER ADSL 3.8.2.8.8 MISC CONFIGURATION There are six items under the System section: • Http Remote • FTP e TFTP • • DHCP Relay • PPP reconnect on WAN access • PPP Half Bridge Http Server Access: Default at Disabled. Or you may check it and specify the IP address or a group of IPs (subnet) allowed to access router. -
Page 58: Diagnostic Test
WIRELESS ROUTER ADSL Connect PPP when ADSL is UP: Check to enable this device to automatically re-establish the PPPoE/PPPoA session whenADSL is UP. UPnP: Universal Plug and Play (UPnP) is an architecture for pervasive peer-to-peer network connectivity of PCs and intelligent devices or appliances, particularly within the home. UPnP builds on Internet standards and technologies, such as TCP/IP, HTTP, and XML, to enable these devices to automatically connect with one another and work together to make networking - particularly home networking –... -
Page 59: Chapter 4
WIRELESS ROUTER ADSL Chapter 4 Troubleshooting If the Wireless ADSL Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider. This could save you time and effort but if the symptoms persist, then consult your service provider. - Page 60 WIRELESS ROUTER ADSL Verify that the IP address and the subnet mask are consistent between the Wireless Router ADSL and the workstations.
-
Page 61: Appendix A
WIRELESS ROUTER ADSL APPENDIX A Wireless LAN Overview This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as simple as two computers with wireless LAN cards communicating in a peer-to-peer network or as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN. - Page 62 WIRELESS ROUTER ADSL permission to send it. The AP then responds with a CTS (Clear to Send) message to all other stations within its range to notify them to defer their transmission. It also reserves and confirms with the requesting station the time frame for the requested transmission. Stations can send frames smaller than the specified RTS/CTS directly to the AP without the RTS (Request To Send)/CTS (Clear to Send) handshake.
- Page 63 WIRELESS ROUTER ADSL Data Encryption with WEP WEP encryption scrambles the data transmitted between the wireless stations and the access points to keep network communications private. It encrypts unicast and multicast communications in a network. Both the wireless stations and the access points must use the same WEP key for data encryption and decryption.
- Page 64 WIRELESS ROUTER ADSL If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal characters ("0-9", "A- F"). You must configure all four keys, but only one key can be activated at any one time. The default key is key 1. WPA-PSK The key for network authentication.
-
Page 65: Traffic Shaping
WIRELESS ROUTER ADSL APPENDIX B Traffic Shaping Traffic Shaping is an agreement between the carrier and the subscriber to regulate the average rate and “burstiness” or fluctuation of data transmission over an ATM network. This agreement helps eliminate congestion, which is important for transmission of real time data such as audio and video connections. Peak Cell Rate (PCR) is the maximum rate at which the sender can send cells. -
Page 66: Appendix C
WIRELESS ROUTER ADSL APPENDIX C Technical Features Protocols IP, NAT, ARP, ICMP, DHCP(server, relay and client), RIP1/2 , SNMP, SNTP client, UPnP, Telnet server LAN port RJ-45, 4 10/100Base-T ports (1 10/100 Base-T port on A02-RA210-W54) WAN port RJ-11 (1 port ADSL) External buttons Reset, Power On/Off LED Indicators... -
Page 67: Appendix D
If you have any problems with the Wireless Router ADSL, please consult this manual. If you continue to have problems you should contact the dealer where you bought this ADSL Router. If you have any other questions you can contact the Atlantis Land company directly at the following address:...
