Transition Networks CBFTF1010-130 User Manual

Fault-tolerant redundant link protector
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

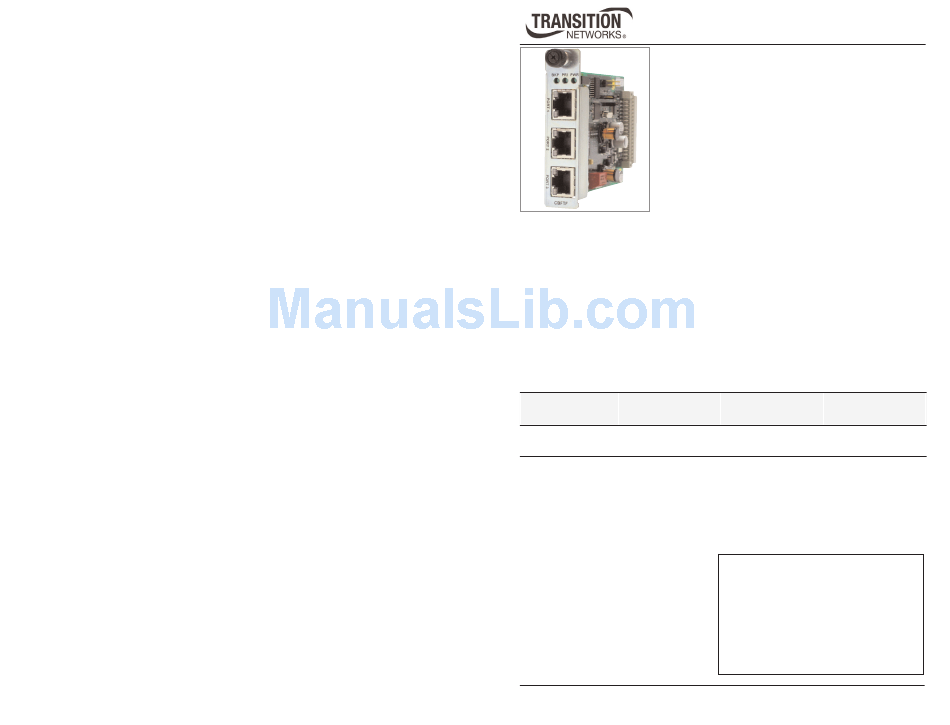

User's Guide
CBFTF1010-130 1
Link Protector
• 10/100 Base-T(x) to 10/100 Base-T(x)
Ethernet/Fast Ethernet
• Three RJ-45 Ports
The CBFTF1010-130 is a fault-tolerant redundant link protector that provides redundant
paths for fast Ethernet devices. It has three RJ-45 ports. As a redundant link protector,
typically, the main port connects to a critical 10/100 fast Ethernet device. The primary
port and the backup port connect to two different switch ports or two different ports on
separate switches. When the unit powers up, it checks the primary port for a link signal; if
the signal is present, the main and primary ports connect and the signal from the backup
port is then disabled. Any device connected to the backup port will not detect a signal at
this time. However, if the device does not detect a signal on the primary port, then the
main port and backup port connect.
Optional functionality controlled via DIP switches enable changing the transceiver from
fault-tolerant mode to switch mode.
Part Number
Port One - Copper
10/100Base-T(x)
CBFTF1010-130
RJ-45 100 M
(328 ft*)
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of th network.
0/100 Fault-Tolerant Redundant
Port Two Copper
Port Three - Copper
10/100Base-T(x)
10/100Base-T(x)
RJ-45 100 M
RJ-45 100 M
(328 ft*)
(328 ft*)
Product features . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . . . .9
Technical Specifications . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBFTF1010-130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks CBFTF1010-130

  • Page 1: Table Of Contents

    Ethernet/Fast Ethernet • Three RJ-45 Ports The CBFTF1010-130 is a fault-tolerant redundant link protector that provides redundant paths for fast Ethernet devices. It has three RJ-45 ports. As a redundant link protector, typically, the main port connects to a critical 10/100 fast Ethernet device. The primary port and the backup port connect to two different switch ports or two different ports on separate switches.

  • Page 2: Product Features

    With redundancy enable and the primary port fails, the converter automatically switches data transfer responsibilities to the backup port without disrupting network The CBFTF1010-130 bridging media converter has three RJ-45 10/100Base-TX traffic. After the primary port's failure is resolved, the converter automatically ports.
  • Page 3 CBFTF1010-130 CBFTF1010-130 Installation -- continued Installation -- continued Setting DIP switches -- continued DIP switch settings Four (4) DIP switches, see illustration below. Forced Full duplex (switch #3 UP with auto-negotiation disabled ). Also • SW 1: Auto-Negotiation when Parallel detection occurs (auto-negotiation enabled only), the device will be forced to IEEE Standard half duplex •...

  • Page 4: Operation

    CBFTF1010-130 CBFTF1010-130 Installation -- continued Operation RJ-45 cable pin assignments Status LEDs Pair 2 There are three (3) LEDs on the converter chassis front panel and two (2) on each Pair 1 TP port. Fr ont View Po wer 1 2 3 4 5 6 7 8...

  • Page 5: Cable Specifications

    Troubleshooting Copper cable (10Base-T/100Base-TX) If the CBFTF1010-130 fails or initially does not power up and function properly, answer the following questions and take the suggested corrective actions. Ensure that the correct cable type is installed to support the highest speed and mode of Is the power LED on the bridging media converter ON? operation.

  • Page 6: Technical Specifications

    YES: Go to step 7. Transition now Chat live via the Web with Transition Networks Technical Support. Log onto Is the secondary LED on the board lit (ON)? www.transition.com and click the Transition Now link. Check that the RJ-45 cable is properly inserted into the secondary port.

  • Page 7: Compliance Information

    All registered trademarks and trademarks are the property of their respective owners. Copyright restrictions © 2004-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means—graphic, electronic or mechanical—without written permission from Transition Networks.
