Summary of Contents for EDNord RSS-1200

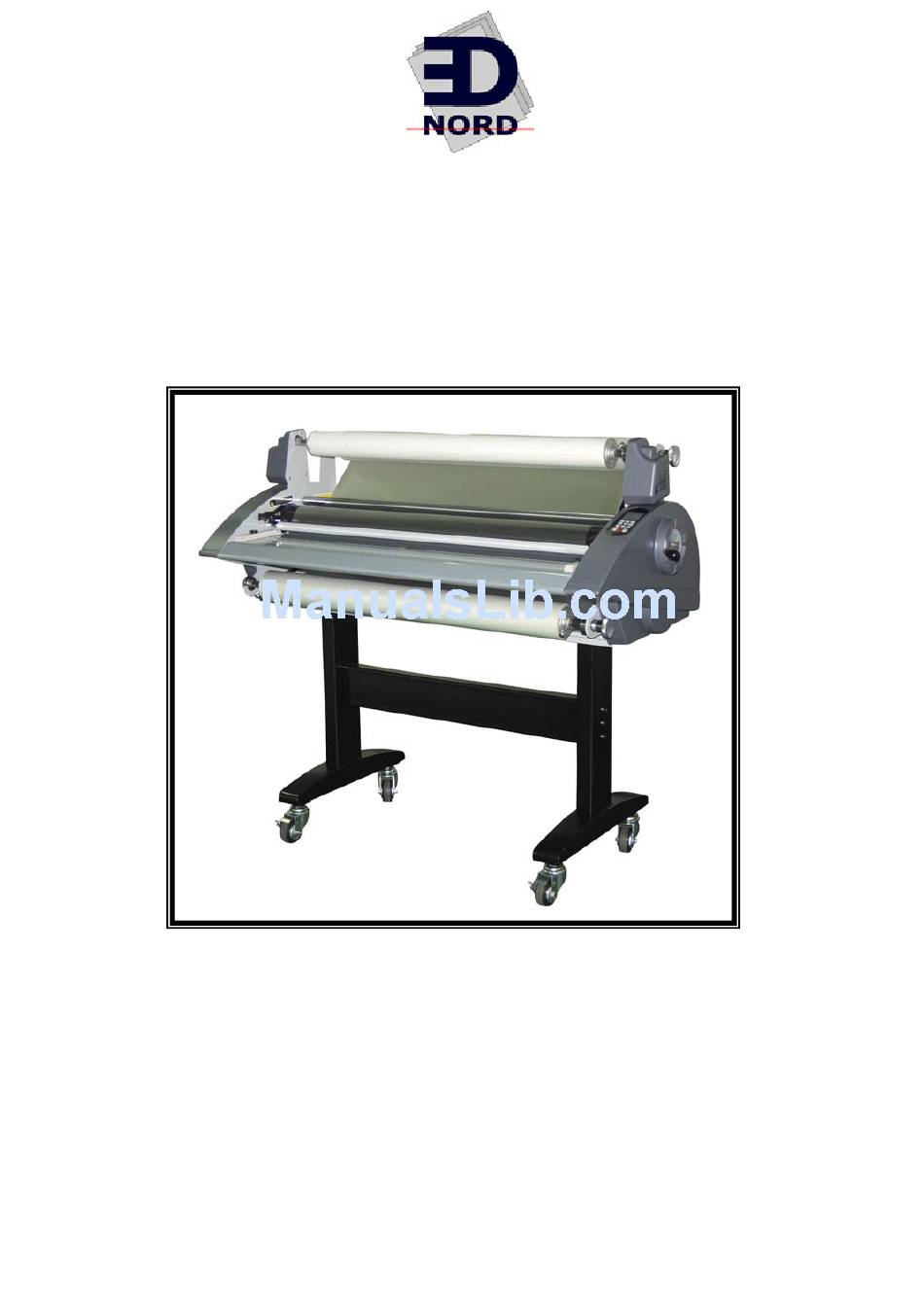

- Page 1 LAMINATORS Royal Sovereign OWNER'S MANUAL RSS-1200,1050 ,685 PLEASE READ AND SAVE INSTRUCTIONS. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 1 -...
-
Page 2: Table Of Contents
METHOD FOR USING CUTTER --------------------------------------------------------------- 1.CROSS CUTTER -------------------------------------------------------------------------------- 2.SLITERS -------------------------------------------------------------------------------------------- IMPORTANT SAFETY CONCERNS. -------------------------------------------------------- MAINTENANCE ------------------------------------------------------------------------------------- IT'S NOT OUT OF ORDER. --------------------------------------------------------------------- SPARE PART ----------------------------------------------------------------------------------------- WARRANTY --------------------------------------------------------------------------------------- MEMO ----------------------------------------------------------------------------------------------- EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 2 -... -
Page 3: Introduction
9. Do not alter or extend electric plug. Plug is configured for appropriate electrical supply. 10. The socket-outlet shall be installed mear the equipment and shall be easily accessible. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 3 -... -
Page 4: Characteristics
Max.Laminating Thickness 13mm ( 0.5in) Film Thickness 25~250mic (1 ~ 10mil) Cold and Hot Laminating Cooling Blower Paper Counting Length Measurement Take Up Film Alignment Cutter-Cross Foot-Switch EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 4 -... -
Page 5: Names Of Major Parts Of Machine
3. TAKE-UP (ASS'Y-TAKE-UP) 10. CONTROL PANEL 4. IDLER BAR (UPPER) 11. PRESSURE LEVER 5. TABLE-FRONT 12. TENSION CONTROL KNOB 6. SHOE-HEATER,UPPER 13. ALIGNMENT KNOB 7. ASS'Y-STAND 14. TAKE-UP SWITCH EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 5 -... -
Page 6: Adjustment Of Film Tension And Locations
On the contrary, when the handle is turned counter-clockwise, it is moved to left. Once proper alignment is reached, turn the Locking Nut tight against the Alignment knob so the adjustment is set. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 6 -... -
Page 7: Setting Up Film
4. Like picture 4 and 5, adhere core closely. (Make the right/left direction of fixing screw consistent.) 5. Locate film in the middle, and then fasten core fixing screw. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 7 -... -
Page 8: Hanging Film
9. Set speed at 1 and press the "RUN" button to feed film into the machine. 10. After checking the status of lamination, Place the pressure lever at the proper lamination mode. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 8 -... -
Page 9: Cold Film
**It is to be stuck on to roll up clock wise. 6. Place the sticky part of film on the upper shoe and get ready to laminate. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 9 -... -
Page 10: Control Of Roller Pressure
3. 5mm Board : Mode that you can laminate 5mm(1/4") hard board 4. 1mm hard board : Mode that you can laminate 1mm(40mil) hard board 5. Laminating : Mode that you can do laminate 25mic(1mil) to 250mic(10mil) EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 10 -... -
Page 11: Instructions For Control Panel
You can manipulate speed and temperature with the LCD controller. We designed the LCD panel for user convenience by adopting memory working condition. ***Terms*** LCD DISPLAY BUTTON EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 11 -... -
Page 12: Lcd Window
T-Check button. 6. Speed *9 different speed option. (SPEED1->1.0m(3.3ft)/min. SPEED9-> 6.0m(19.7ft)/min.) 7. PRGM *9 different memory cell (address) You can memorize 9 different working conditions. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 12 -... -
Page 13: Functions Of Buttons
: Count & Length values format RESET STOP : Stop working : Run and stop the fan : Run the rollers. : Change into Count & Length Mode MEANS EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 13 -... -
Page 14: How To Use Buttons
SPEED is blinking 6 times Before blinking finish, the operator can change the speed with 3. Each time you press the button, buzzer will ring. SPEED SPEED EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 14 -... - Page 15 The display will blink. 3.After the blinking stops, it is set the working condition you selected and shows the working condition on the display. MEMORY MEMORY EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 15 -...
-
Page 16: Cold Mode
MEMORY 6.Everytime you press the button, buzzer is ringing SPEED SPEED 7.ST/BY mode is not working at COLD mode. MEMORY MEMORY C/HOT ST/BY COLD ST/BY EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 16 -... - Page 17 2. When you want to return to working mode, Press button again. MEANS 3.Also, you can reset measure mode by pressing button.(for 2 second) RESET MEANS RESET EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 17 -...
-
Page 18: Laminating Steps
Try not to touch the document until it has cooled down. 14. After finishing your work(laminating), change the position of the Pressure Lever to "Hard Board, 1mm(40mil)". 15. Turn the Power switch off. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 18 -... - Page 19 The above laminating speed numbers are at the condition on regular voltage with almost no film tension. There might be the possibility for difference to the above numbers due to the change of voltage or adjustment of tension. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 19 -...
- Page 20 200micron 150g/㎡ (8 mil) 300g/㎡ 100g/㎡ 250micron 150g/㎡ (10 mil) 300g/㎡ *NOTE IF the surrounding conditions are different, the adjustment is necessary to be controlled a lttle. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 20 -...
-
Page 21: Cold Laminating
2. Turn the switch “Run” and “Take up motor” at the same time. 3. For worm lamination, set temperature from the hot mode. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 21 -... -
Page 22: Tips For Remote Control And Foot Switch
3. Grasp film with one hand and press the cutter downward and slide it to the direction intending to cut with another hand. 4.Press the cutter and slide it the other way. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 22 -... -
Page 23: Sliters
*When you do not use vertical cutter, please set the both cutter at the bottom of each side. It could cause you to cut your hands while installing roll film. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 23 -... -
Page 24: Important Safety Concerns
5.Please check the lubricant after long operation or you do not use for a long time. 6.Check the chain linking each gear is not loosened. The limit tension allowed is 3mm. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 24 -... -
Page 25: It's Not Out Of Order
1. Core(76mm) :6EA 4. Bolt(M8X12) : 6EA 2. Fuse(50T) : 1EA 5. Washer-spring(Φ8) : 6EA (AC 250V 6.3A) 3. Fuse(65TS) : 1EA 6. Bolt-core : 2EA (AC250V 15A) EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 25 -... -
Page 26: Warranty
(at the "Seller's" sole discretion) for said goods. Any shipment of replacement merchandise will be at 50% freight allowed. EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 26 -... -
Page 27: Memo
MEMO EDNord - Istedgade 37A - 9000 AAlborg - telefon 96333500 - 27 -...
