F F F F renzel Tube Amps
HBX-WC30 "Hot Box Wild Cat"
2011 Copyright by Frenzel Tube Amplifiers. All rights reserved. All designs, technical data, pictures, and information are
copyrighted and may not be reproduced without the permission of Frenzel Tube Amplifiers.
renzel Tube Amps
renzel Tube Amps
renzel Tube Amps
Owners Manual
Page 1
Advertisement
Table of Contents
Related Manuals for FRENZEL HBX-WC30
Summary of Contents for FRENZEL HBX-WC30
-

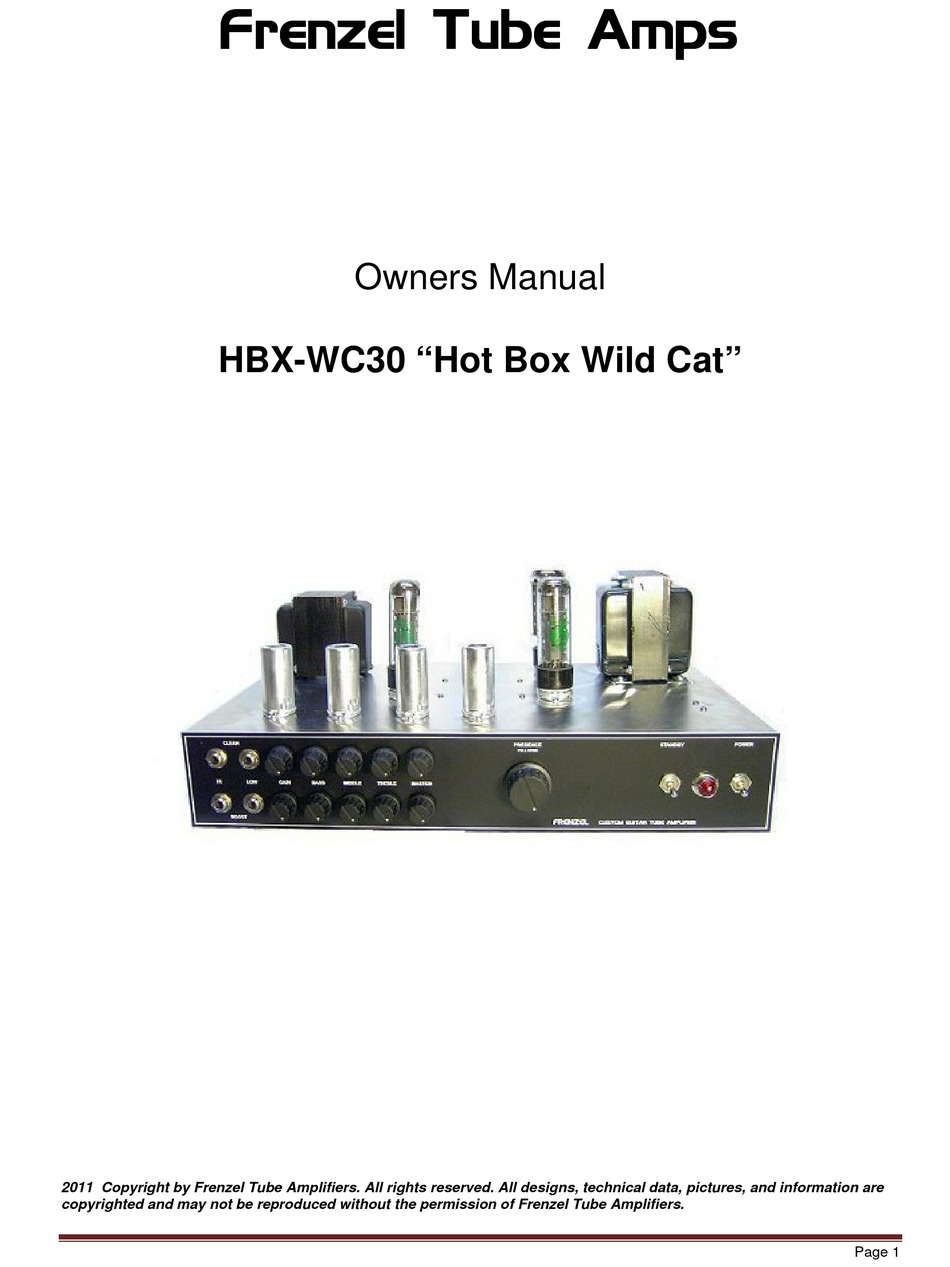

Page 1: Owners Manual
Tube Amps Owners Manual HBX-WC30 “Hot Box Wild Cat” 2011 Copyright by Frenzel Tube Amplifiers. All rights reserved. All designs, technical data, pictures, and information are copyrighted and may not be reproduced without the permission of Frenzel Tube Amplifiers. - Page 2 Tube Amps Model: Hot Box Wild Cat 30 Model No: HBX-WC30 The FRENZEL " Hot Box Wild Cat 30" design was "INSPIRED" by the classic Matchless Hot Box and the Hot Cat 30. The preamps have three stages of high gain and are modeled after the classic Hot Box preamp. We have added separate HI - LO inputs, gain controls, tone stacks, and master level controls to give you maximum tone control.
- Page 3 F F F F renzel Tube Amps renzel Tube Amps renzel Tube Amps renzel Tube Amps Class A cathode biased EL34's for the purest reproduction of sound possible. Power Output - 30 watts Power Attenuator - Built-in power attenuator provides three power levels. 7 - 15 - 30 watts. Dual Speaker Jacks Speaker Impedance Selector 4 - 8 - 16 ohms 5AR4 heavy duty rectifier for classic Fender pick attack and sag ,..
- Page 4 F F F F renzel Tube Amps renzel Tube Amps renzel Tube Amps renzel Tube Amps UPGRADE OPTIONS: 1. QUAD OF EL84'S - Replaces pair of EL34's with a quad of EL84's for that classic VOX AC30 chime. Add $100.00 2.
- Page 5 F F F F renzel Tube Amps renzel Tube Amps renzel Tube Amps renzel Tube Amps STANDBY SWITCH – turns ON high voltage to tubes. Allow tubes to warm up 3- 5 minutes before turning to ON (up) position. This protects tubes and lengthens tube life. Turn to OFF position(down) when amp temporarily not in use. REAR PANEL CONTROLS: EFFECTS LOOP –...
- Page 6 F F F F renzel Tube Amps renzel Tube Amps renzel Tube Amps renzel Tube Amps HBX - WC30 TUBE LAYOUT 12AX7 12AX7 12AX7 12AX7 V1 - CLEAN & BOOST PREAMPS V2 - CLEAN TONE STACK DRIVER V3 - BOOST TONE STACK DRIVER EL34 V5 EL34 V6 V4 - PHASE INVERTER...
