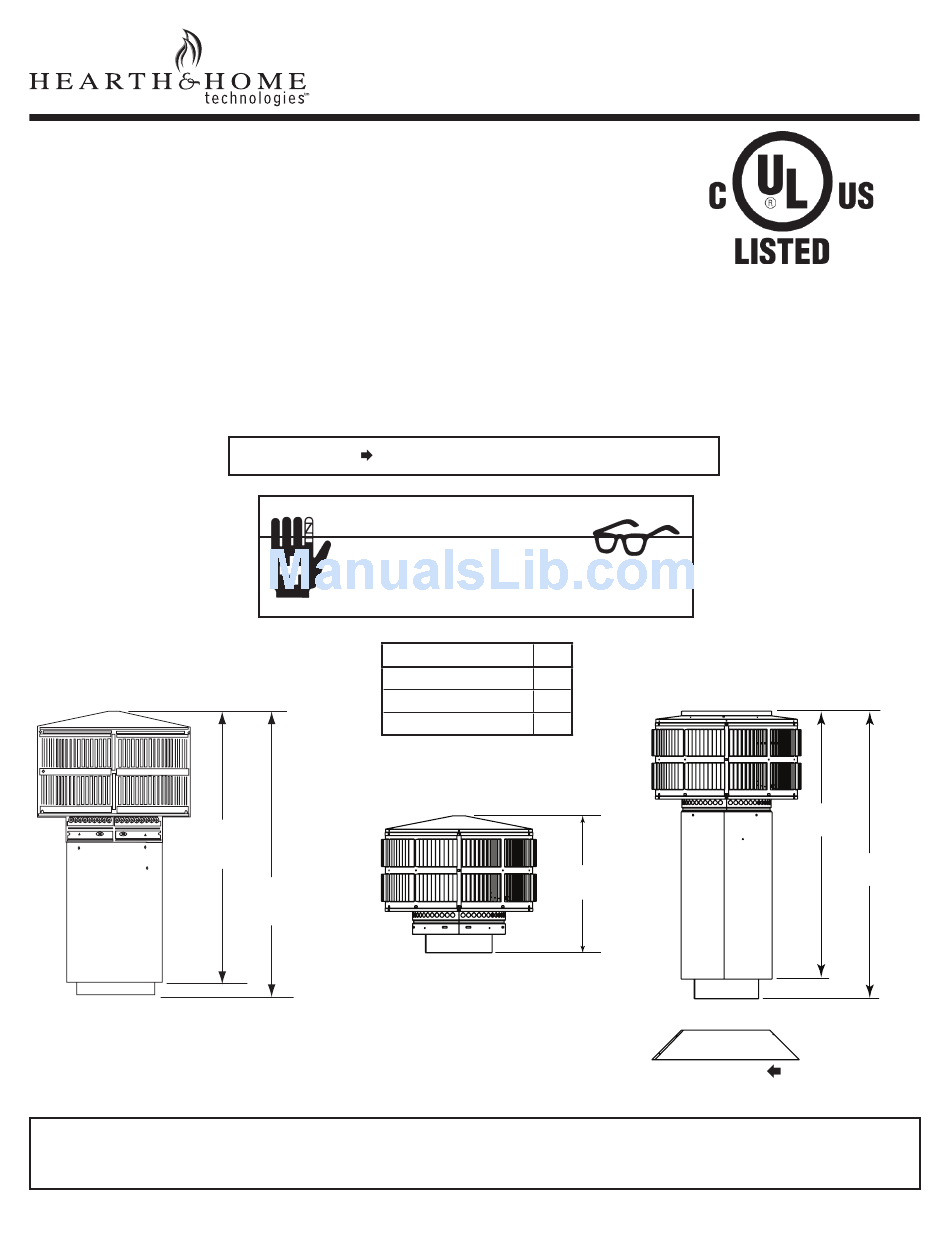

Models:
TR342, TR344, TV342

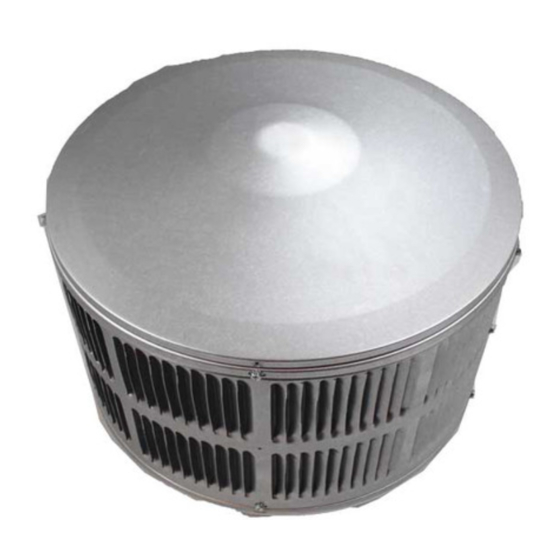

Round Termination Cap and
Storm Collar
These chimney termination caps have been tested for use with specifi c Hearth & Home Technologies inc. fi replaces and
are UL listed as fi replace parts. Refer to the installation instructions supplied with the fi replace for the correct accessories
to be used. Check with your local building code agency before you begin installation to ensure compliance with local codes,
including the need for permits and follow-up inspections. If you encounter any problems regarding code approvals, or if you
need clarifi cation of any of the instructions contained here, contact the Heatilator Technical Services Dept., Hearth & Home
Technologies Inc., phone 1-800-927-6841 or 1-888-427-3973.
32-3/8 in.
(822 mm)
TR342
Note: The chimney must extend at least 3 ft (.91 m) above the highest point where it passes through the roof and at least
2 ft (.61 m) above any portion of the building within 10 ft (3.05 m). These minimum distances comply with national code
construction requirements but do not guarantee smoke free operation.
Hearth & Home Technologies Inc. • TR342/TR344 Term Cap • 31445 Rev H • 03/06
Note: An arrow ( ) found in the text signifi es change in content.
Sharp Edges
•
Wear protective gloves and safety
glasses during installation.
Description
Termination Cap
Storm Collar
Fastener Package
34-3/8 in.
(873 mm)
CAUTION
Qty
1
1
1
15-3/4 in.
(400 mm)
TR344
Installation
Instructions
32 in.
(813 mm)
34-1/4 in.
(870 mm)
TV342
1
