- Page 1 Bluetooth GPS Receiver User’s Manual Published on 25-Jan-2007 8029407601C...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Before you begin..................4 1.1 Appearance .....................5 1.2 Checking the package content ..............6 Chapter 2 Getting started....................7 Step 1 Charging Your Battery................7 Step 2 Turn on the power switch.................8 Step 3 Connecting your handheld device with iBT-GPS ........8 Step 4 Load your GPS mapping or routing software........ -
Page 3: Note And Warning
Note and Warning - iBT-GPS uses Lithium battery. If iBT-GPS is used in temperature lower than -10 ℃ ℃ or higher than 60 , its battery charging capability will decrease. Please leave the iBT-GPS far from heat or high temperature environment. In addition, do not expose your iBT-GPS in temperature higher than 140 ℉... -
Page 4: Chapter 1 Before You Begin
Chapter 1 Before you begin Thank you for purchasing the Bluetooth GPS Receiver, iBT-GPS, a global positioning system receiver with Bluetooth wireless technology. iBT-GPS is well suited to system integrations including PDA, smart phone, Tablet PC and Notebook PC with Bluetooth devices. It can satisfy a wide variety of applications such as PDA and smart phone navigation, automotive vehicle tracking, personal positioning and sporting. -
Page 5: Appearance

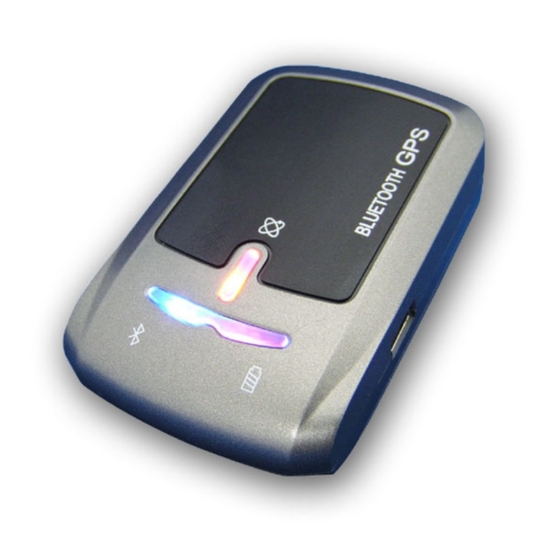

1.1 Appearance 1. Power jack (mini USB type) 2. Power switch 3. Battery status LED (red/green) 4. Bluetooth status LED (blue) 5. GPS status LED (orange) 6. Internal antenna... -
Page 6: Checking The Package Content
1.2 Checking the package content Congratulations on your purchase of the iBT-GPS with built-in Lithium rechargeable battery. Before you start using iBT-GPS, please make sure if your package includes the following items. If any item is damaged or missing, please contact your dealer at once. - Bluetooth GPS Receiver - iBT-GPS x 1 - Traveler Power Adapter x 1 - DC cigarette lighter adapter x 1... -
Page 7: Chapter 2 Getting Started
Chapter 2 Getting started Please follow the procedure step by step. Step 1 Charging Your Battery For the 1 time you use the iBT-GPS, please charge battery until it is full (the LED blinks). Take the power cable and connect it to the power jack (mini USB type). -
Page 8: Step 2 Turn On The Power Switch
Step 2 Turn on the power switch Before After Step 3 Connecting your handheld device with iBT-GPS Please refer to the user manual of PDA to enable the Bluetooth connectivity. If the connection between your device and iBT-GPS is successful, the blue LED of iBT-GPS will be blinking. Below, we provide a common procedure of software installation to set up your PDA. - Page 9 --> Start -> Bluetooth Manager 1. Open “Bluetooth Manager” on pocket pc, and establish new connection. --> Explore A Bluetooth device Tap iBT-GPS ->Next 2. Explore a Bluetooth device, and find the “iBT-GPS”...
- Page 10 Passkey 0000 (if your PDA ask for the passkey) 3. (Optional) --> Select SPP slave->Next Finish 4. Connect to Serial Port Profile (SPP) Slave...
-
Page 11: Step 4 Load Your Gps Mapping Or Routing Software
--> Tap and Hold iBT-GPS: SPP Done slave, Connect 5. Finish Bluetooth Manager Setup Step 4 Load your GPS mapping or routing software , along with the corresponding maps of the areas that you plan to travel Step 5 Start the application and select the correct COM port &... -
Page 12: Chapter 3 How To Test Your Bluetooth Gps Receiver
Chapter 3 How to test your Bluetooth GPS Receiver ? The testing program only supports the Microsoft Windows CE & Pocket PC based PDA platform. 3.1 Software Installation You have to first synchronize the PDA and your PC, and run the “Setup.exe”... -
Page 13: Gps Test
3.2 GPS Test Once you have completed the setup of your Bluetooth device, you may check to see if your GpsView software is attempting to fix your position. You can do this by opening your GPS software. If it fails, you should select the correct COM port and Baud Rate (4800~115200) to start receiving GPS data. -
Page 14: Appendix A. Led Display
Appendix A. LED Display The Bluetooth GPS Receiver has three LED lights, one is Bluetooth Status LED, the 2 one is Battery Status LED, the 3 one is GPS Status LED. The status table of LED shows as follows: Category SYMBOL COLOR STATUS Function Bluetooth Status... -
Page 15: Appendix B. Fuzzy Auto On/Off
Appendix B. Fuzzy Auto On/Off iBT-GPS supports fuzzy auto on/off. It can automatically enter the sleeping mode after your turning off the Bluetooth connectivity, thus you can always power it on with very low power consumption. With fuzzy auto on/off, if the connection between your device and iBT-GPS is successful, iBT-GPS will wake up itself and the blue LED of iBT-GPS will be quickly blinking again (every 2 sec) and the orange LED of iBT-GPS will also be on. - Page 16 Velocity Accuracy Without aid: 0.1m/s DGPS (WAAS,EGNOS,MSAS):0.05m/s Acceleration Without aid:<4g DGPS (WAAS,EGNOS,MSAS):<4g Timing Accuracy 50 ns RMS Reacquisition Time <1s Hot start Warm start Cold start Sensitivity Acquisition:-144dBm Tracking:-158dBm Update Dynamic Altitude Maximum 18,000m Velocity Maximum 515m/s Acceleration Maximum 4g Power Input Voltage Vin : DC 5.0V±10%...
- Page 17 NMEA0183 v3.01 (Default: GGA, GSA, GSV, RMC) Environment Operating Temperature -10 ~ 60C Storage Temperature -20 ~ 60C Charging 0 ~ 45C Bluetooth Standard Fully compliant with Bluetooth V1.2 Output Power 0dBm (Typical),ClassII Range Up to 15 meters Bluetooth Profile Serial Port Profile(SPP) Frequency 2.4G ~ 2.4835GHz ISM Band...
-
Page 18: Appendix D. Frequently Asked Questions
Appendix D. Frequently Asked Questions Q: The GPS Demo software GpsView doesn’t seem to be making any connections with my Bluetooth GPS receiver. How do I make it work? A: You will need to make sure your PDA is paired with Bluetooth device. Follow the section “Chapter 2. -
Page 19: Appendix E. How To Change Battery
Appendix E. How to change battery Step 1 Press the button to right side Step 4 Fit new battery into iBT-GPS Step 2 Open the cover of battery Step 5 From R to L close the cover Step 3 Take out the battery Step 6 Done... -
Page 20: Appendix F. Helpful Tips
Appendix F. Helpful tips Your iBT-GPS should be treated with care and properly maintained to ensure the best performance. Keep in mind these helpful tips when using your receiver: - Some vehicles having heavy metallic sun protecting coating on windshields, which may affect signal receptions - Driving in and around high buildings may affect signal receptions. -
Page 21: Appendix G. Certification
Appendix G. Certification FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interface, and 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 22 Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website. "www.hc-sc.gc.ca/rab" CE Notices Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive...
-
Page 23: Appendix H. Warranty Information
Appendix H. Warranty Information Thank you for your purchase of GPS product from the company. The company warrants this product to be free from defects in materials and workmanship for one year from the date of purchase. The warranty for accessories is six months. The stamp of distributor or a copy of the original sales receipt is required as the proof of purchase for warranty repairs. - Page 24 Warranty Model number: Series number: Data of purchase: Name: Address: City, Zip code: State, Country: E-mail address: Distributor Stamp Here...
