www.rhydolabz.com
Document :
Datasheet
Model # :
GPS - 1268
Date
:
10-Jan -10

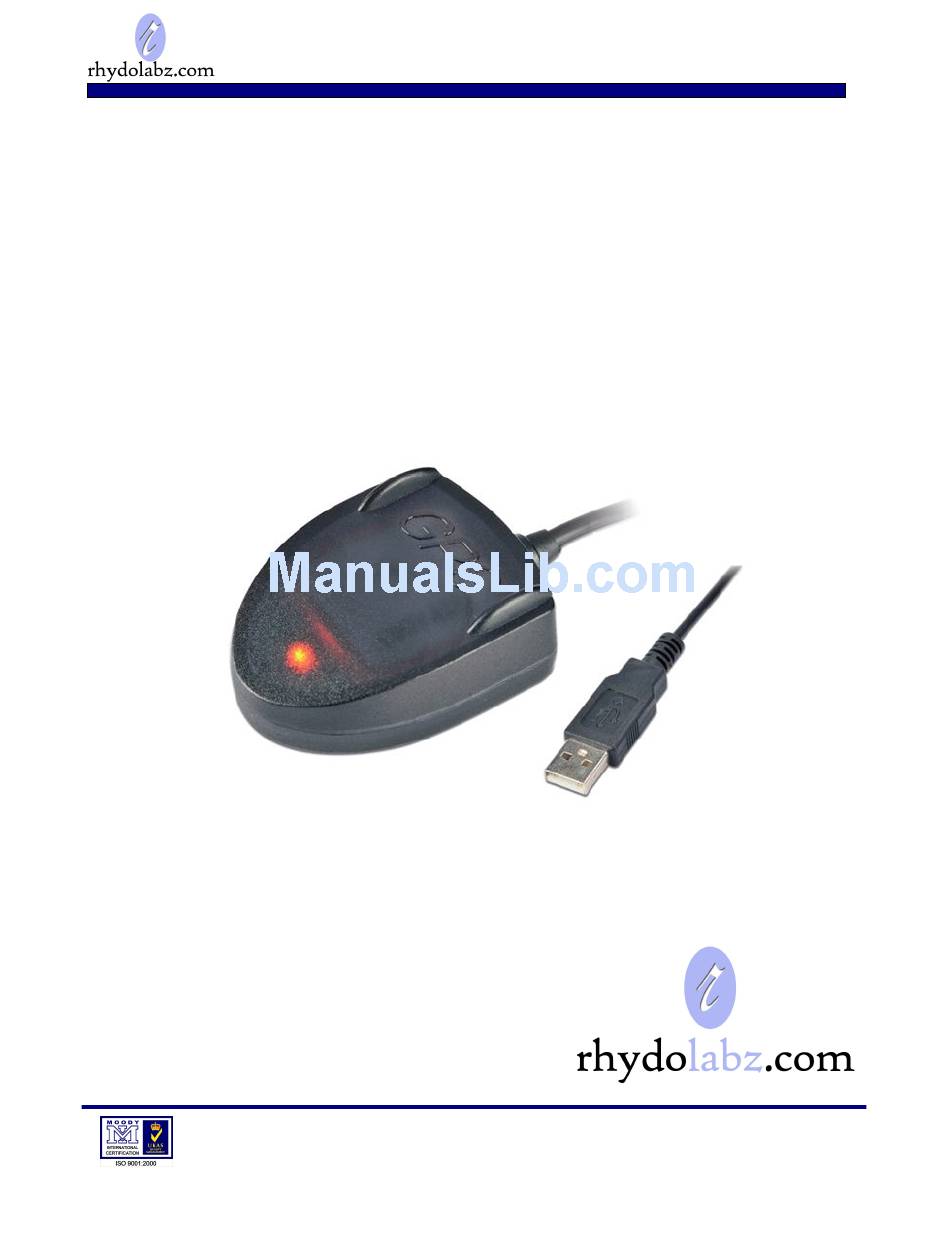

Mini G-Mouse-USB
User Manual
Rhydo Technologies (P) Ltd.
(An ISO 9001:2008 Certified R&D Company)
Golden Plaza, Chitoor Road,
Cochin – 682018, Kerala State, India
Phone
: 0091- 484-2370444, 2371666
Cell
: 0091- 99466 70444
Fax
: 0091 - 484-2370579
E-mail : info@rhydolabz.com,
sales@rhydolabz.com
WebSite :
http://www.rhydolabz.com
We bring the world to you..
Advertisement
Table of Contents
Summary of Contents for Rhydolabz GPS-1268
- Page 1 (An ISO 9001:2008 Certified R&D Company) Golden Plaza, Chitoor Road, Cochin – 682018, Kerala State, India Phone : 0091- 484-2370444, 2371666 Cell : 0091- 99466 70444 : 0091 - 484-2370579 E-mail : info@rhydolabz.com, sales@rhydolabz.com WebSite : http://www.rhydolabz.com We bring the world to you..
- Page 2 History History Date Rev. Description 2008/06/11 First Release (Preliminary) 2008/12/16 Second Release (Preliminary) 2008/04/04 Formally Release Page 6 :Change Spec :Cable length is 2 meter . Page 6 : Remove cable customization 2009/05/15 Page 5: Add LED status description...
-
Page 3: System Block
SYSTEM BLOCK 2.8V TCXO 3.3V Regulator RTC Backup Battery GPS Single Chip Crystal Connector We bring the world to you.. - Page 4 Description The miniGMouse-USB is a GPS module. It is a GPS receiver providing a solution that high position and speed accuracy performances as well as high sensitivity and tracking capabilities in urban conditions .The GPS chipsets inside the module are designed by MediaTek Inc., which is the world's leading digital media solution provider and largest fab-less IC company in Taiwan.
-
Page 5: Pin Configuration
Mechanical Dimension：(Unit: mm) (Male) Pin Configuration Pin Definition Name Description 1 USB_PW DC Supply Power Input 2 D_ USB Port D- Signal 3 D+ USB Port D+ Signal 4 GND Ground LED Status: Led Indicator Description GPS positioning status... -
Page 6: Specification
Specification General Chipset MTK MT3329 Frequency L1, 1575.42MHz C/A Code 1.023 MHz Channels 66 channels SBAS WAAS, EGNOS,MSAS Supported Datum WGS84(Default), Tokyo-M, Tokyo-A, User Define Dimensions Length/Width/Height 46(L)x33(W)x17.3(H)mm, without cable Cable Length Performance Characteristics Without aid：3.0m 2D-RMS Position Accuracy <... - Page 7 Acquisition (Open sky, stationary) Less than 1 second Reacquisition Time 1.0s (Typical) Hot start 34s (Typical) Warm start 35s (Typical) Cold start Dynamic Altitude Maximum 18,000m Velocity Maximum 515m/s Acceleration Maximum 4G Power Input Voltage DC 5.0V ±5% Acquisition：48mA Typical Power Consumption @ 5.0V...
- Page 8 NMEA Output Sentence Table-1 lists each of the NMEA output sentences specifically developed and defined by MTK for use within MTK products NMEA Output Sentence Table-1 Option Description Time, position and fix type data. GPS receiver operating mode, active satellites used in the position solution, and DOP values.
- Page 9 GGA—Global Positioning System Fixed Data. Time, Position and fix related data for a GPS receiver Table-2 contains the values for the following example： $GPGGA,064951.000,2307.1256,N,12016.4438,E,1,8,0.95,39.9,M,17.8,M,,*65 GGA Data Format Table-2 Name Example Units Description Message ID $GPGGA GGA protocol header UTC Time 064951.000...
- Page 10 GSA—GNSS DOP and Active Satellites Table-4 contains the values for the following example： $GPGSA,A,3,29,21,26,15,18,09,06,10,,,,,2.32,0.95,2.11*00 GSA Data Format Table-4 Name Example Units Description Message ID $GPGSA GSA protocol header See Table-5 Mode 1 Mode 2 See Table-6 Satellite Used SV on Channel 1...
- Page 11 GSV—GNSS Satellites in View Table-7 contains the values for the following example： $GPGSV,3,1,09,29,36,029,42,21,46,314,43,26,44,020,43,15,21,321,39*7D $GPGSV,3,2,09,18,26,314,40,09,57,170,44,06,20,229,37,10,26,084,37*77 $GPGSV,3,3,09,07,,,26*73 GSV Data Format Table-7 Name Example Units Description Message ID $GPGSV GSV protocol header Number of Range 1 to 3 Messages (Depending on the number of...
- Page 12 RMC—Recommended Minimum Navigation Information Table-8 contains the values for the following example： $GPRMC,064951.000,A,2307.1256,N,12016.4438,E,0.03,165.48,260406,,,A*55 RMC Data Format Table-8 Name Example Units Description Message ID $GPRMC RMC protocol header UTC Time 064951.000 hhmmss.sss Status A=data valid or V=data not valid Latitude 2307.1256...
- Page 13 VTG—Course and speed information relative to the ground. Table-9 contains the values for the following example： $GPVTG,165.48,T,,M,0.03,N,0.06,K,A*37 VTG Data Format Table-9 Name Example Units Description Message ID $GPVTG VTG protocol header Course 165.48 degrees Measured heading Reference True Course...
-
Page 14: Technical Support
All products are tested for their best performance before shipping, still rhydoLABZ is offering One year Free service warranty (Components cost + Shipping cost will be charged from Customer ).
