Summary of Contents for Ultra Disk DVR 7

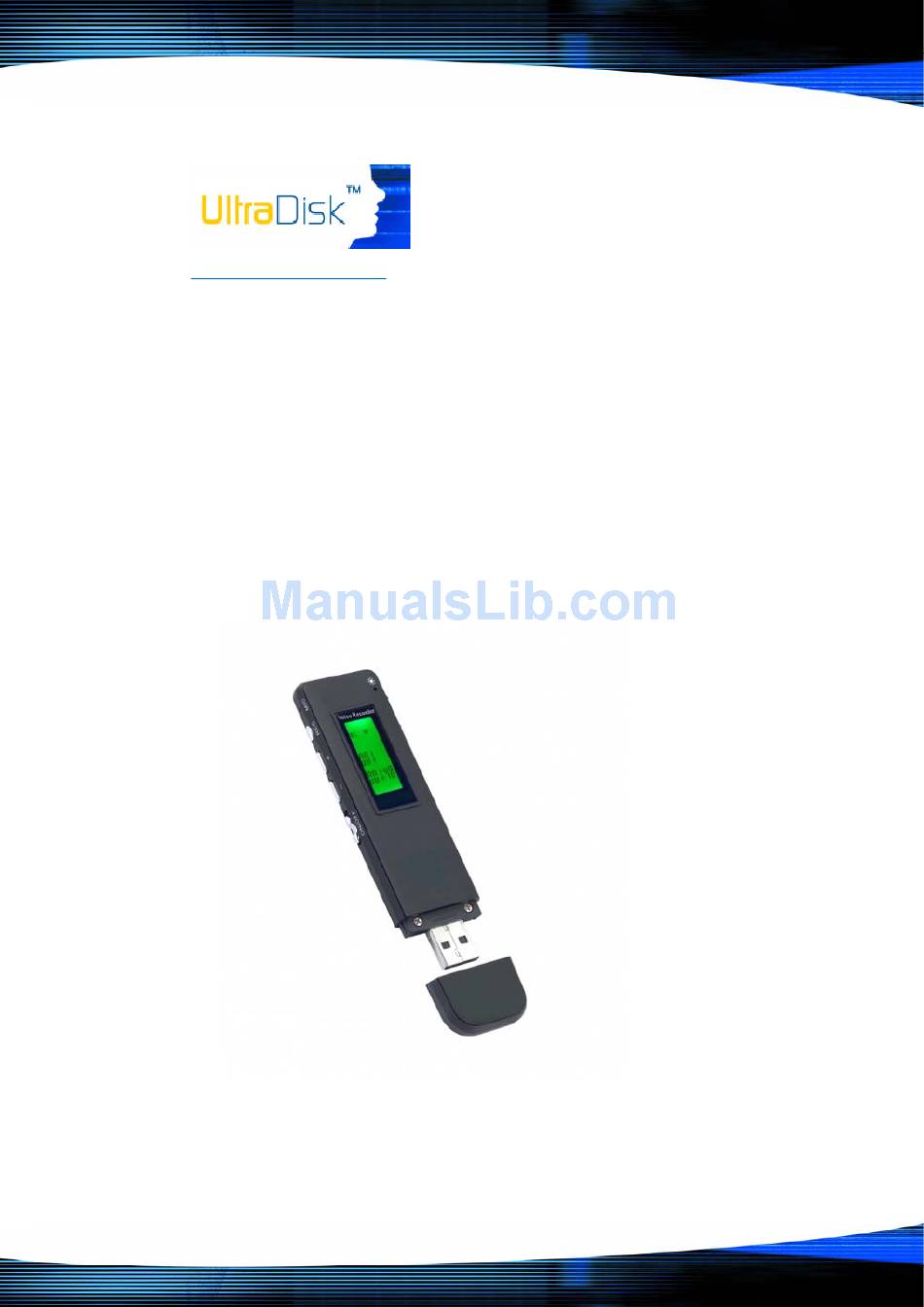

- Page 1 Digital Voice Recorder User Manual DVR 7 P a g e Copyright UltraDisk™ 2009 All rights reserved...
-
Page 2: Table Of Contents
Table of Contents Function overview ............... 2 Technical specifications ..............2 Precautions ................. 3 Appearance and buttons ............... 4 Operation ................... 5 Turn on the recorder ..............5 Turn off the recorder ..............5 Low battery indication： ............... 5 One-key Record /stop recording ............ 5 Setting the recording mode ............ -
Page 3: Function Overview
Function overview • One-key recording. • Three recording modes. • LP is hold and recording, ACT format • SP is good quality recording & Voice Activated recording, WAV format. • HP is high-Quality recording, MP3 format • Recording monitor and hearing aid function. •... -
Page 4: Precautions
Precautions Please turn off the recorder and push the power switch to “OFF” side if you are not using the recorder for a long time. Please recharge the battery properly when the low- battery indication shows on the screen. Please read the instruction manual carefully before using. -
Page 5: Appearance And Buttons
Appearance and buttons (1) Play/stop playing（ (2) Menu/Delete（M ) (3) Forward（ (4) Backward（ ） ） (5) Record（REC） (6) Volume（+） (7) Volume（-） (7) Power Switch（OFF/ON) (9) Earphone（ (10) Signal-in（ ） ） (11) Screen (12) USB plug (13) indicator light (14) Built-in Microphone P a g e Copyright UltraDisk™... -
Page 6: Operation
Operation Turn on the recorder If the power switch is at the OFF side. Push the power switch（OFF/ON）to the “ON” side. The screen will light up in 5 seconds, the recorder is turned on. Hold and press button when the recorder is off, the recorder is turned on. -
Page 7: Setting The Recording Mode
SP recording mode is the defaulted recording mode in the recorder. And it is also defaulted as Voice Activated Recording. Setting the recording mode Setting recording mode: Press “Menu” button to enter into the main menu. Press the button to select the recording modes. -
Page 8: Recording Telephone Conversations
will automatically start recording when the microphone detects sound input. The screen shows: Attention: When screen shows “FUL”, it indicates the disk is full or the battery is low. Please check which it is by connecting to the PC. If the memory is full some files should be deleted to keep enough space to save new recording files &... -
Page 9: Record Through External Microphone
Step 3．Select the suitable recording mode in the recorder. Press “REC” button to start recording. Record through external Microphone: Step 1. Insert the external Microphone in the Jack. Step 2. Turn on the recorder. Press “REC” button to start recording. Record audio via Line-in: Step 1. -
Page 10: Automatic Section-Break
Automatic section-break After recording for a full 4 hours, the recorder will automatically start a new file to continue recording. Play LP & SP recordings. Press button in the main menu to select the recording file menu “VOS”. Press “M” button to enter into the recording file menu. -
Page 11: Record-Time Setting
Record-time setting Press button at standby mode to select the time-setting mode： Press “M” button to enter in. Press button to select the part which should be adjusted. The selected part will flash. Press “VOL+/VOL-” button to adjust the part. After finishing setting the time, the recorder will automatically confirm the setting. -
Page 12: Music Player Mode
Music player Mode To enter into music mode press button at standby mode to select the Music plater, as picture 1. Press “M” button to enter into the music standby mode as picture 2. Please Note: If there’s no music or HP recording in the recorder. -
Page 13: Delete
Stop repeating：The recorder it will repeat all the time when repeating recorded files. Press “REC” button or press “M” button to stop repeating playback. The recorder will automatically stop repeating after playing a section for 3 times when repeating music files. Delete In the recording and playing mode, select the file which should be deleted. -
Page 14: Scan Channel
Scan Channel: Briefly press button for manual scanning. Press and hold button for automatic scanning. If the channel is scanned, the recorder will stop to playback the channel automatically. Save the scanned channel: Briefly press “REC” button to save the channel when recorder has scanned and found the new radio channel. -
Page 15: Recharge The Battery
Recharge the battery Please insert the USB plug into the recharger. Insert the charger into the AC plug (110V-250V). The recorder’s indicator light light up, the recharger’s red and green indicator light up indicates power recharge is proceeding. After the recharge is over. -
Page 16: Installation Of Drivers
Installation of drivers Place the accompanying CD into the CD ROM of PC (or manually operate the “set up. exe” in the CD), enter in installation interface, click “Next” button, click “Next” button after selecting installation path. Click “Next” to start installing the program. After successful installation, click “Close”... -
Page 17: Trouble Shooting
Attention: Before converting the ACT file, please rename or backup the recording file in WAV format which has the same code with ACT format need to convert. For example: We want to convert “REC001 ACT” to WAV format. Before converting it, we have to rename the “REC001”.
