ZyXEL Communications NSA221 Support Note

ZyXEL Communications NSA221 Support Note

2-bay network attached storage and media server
Hide thumbs Also See for NSA221:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
NSA221
Support Note
Version 1.00
May, 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSA221 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications NSA221

Summary of Contents for ZyXEL Communications NSA221

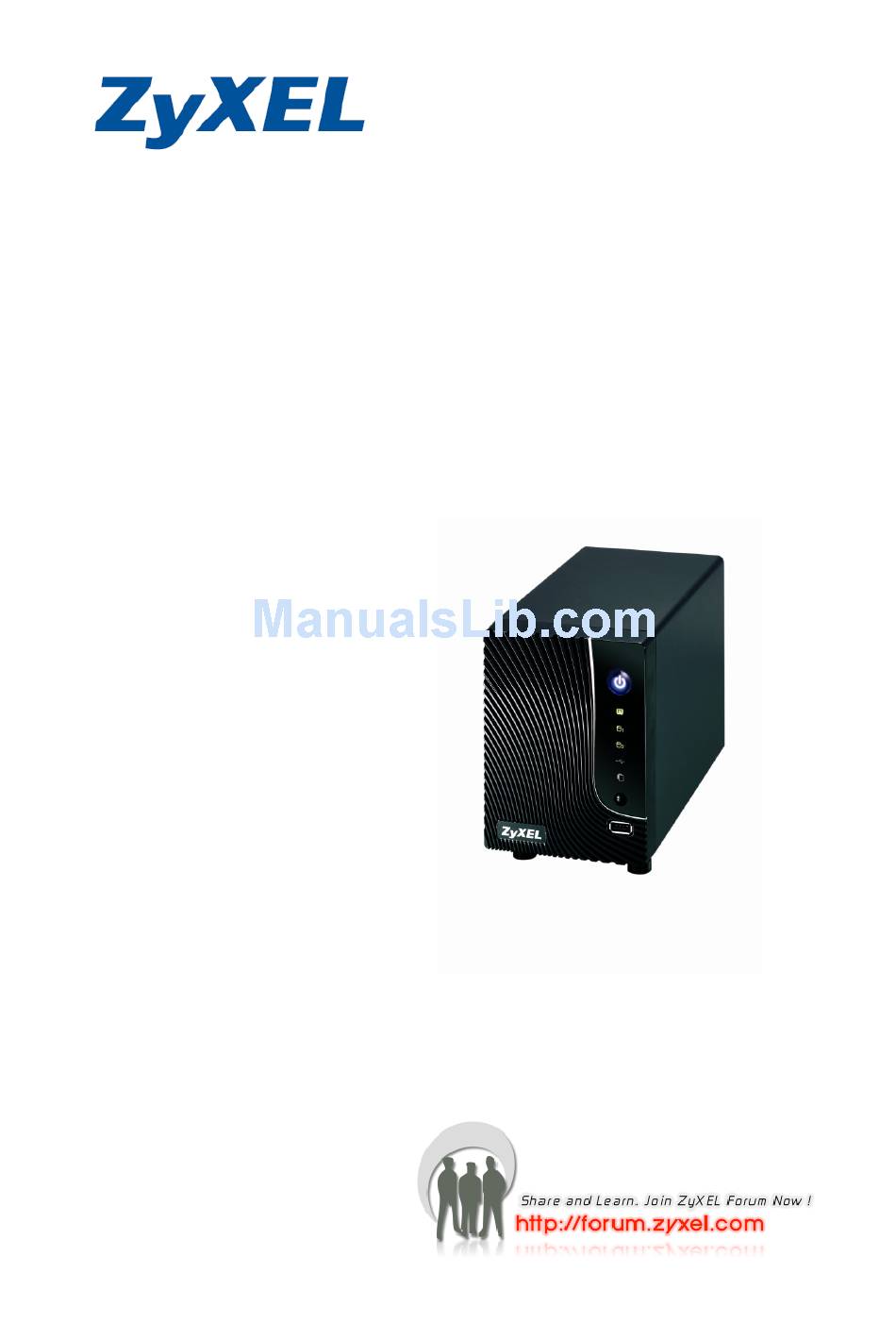

  • Page 1 NSA221 Support Note Version 1.00 May, 2010...

  • Page 2: Table Of Contents

    4. Which kind of the media server does NSA221 apply? ............. 22 5. Does NSA221 support DLNA media server? ..............22 6. Which kind of video file formats are supported by NSA221? .......... 22 7. Which kind of audio file formats are supported by NSA221? .......... 22 8.

  • Page 3: Chapter 1 Applications

    1. NAS Starter Utility 1.1 NAS Starter Utility Installation After you install a new hard drive on the NSA221, please make sure to use the NAS Starter Utility to discover and access the NSA221 to assign an IP address by DHCP or a static IP.

  • Page 4: Nsa221 Initialization

    After successful installation, click the “NAS Starter Utility”. The first screen of NSU shows the result of NSA Discovery. Click your NSA221’s button and click Run the Initialization Wizard to set up the NAS221. If the connection is green, it means this NAS is able to be reached by the PC shown in the screen.
  • Page 5 Figure 9. Choose a wizard type Figure 10. Change the password. Check if the settings are correct and click Next to begin configuring NSA221. Figure 11. Confirm settings. Figure 12. NAS is under setting. Figure 13. Configuration is finished.

  • Page 6: Network Setting

    Click Import files or folders with zPilot to launch zPilot. When you would like to upload files to NSA221, just drag files onto zPilot icon. The files will be automatically uploaded and sorted based on their types: Music, Photo and Video. The files which are not the categorized in Music, Photo or Video will be uploaded to the Public folder.

  • Page 7: Directory

    1.5 Directory Click Show the directory of the NAS and enter your username and password. Then the directory of NSA221 will pop up. You will see the files you uploaded through zPilot are automatically categorized by their types. Figure 19. NSU main menu.

  • Page 8: Device Management

    1.6 Device Management Click Manage the device and enter admin’s username and password to access NSA221’s GUI. Then the administrator can manage the device and change the configurations. Figure 19. NSU main menu. Figure 20. Enter admin’s username and password to login GUI.

  • Page 9: Play Media Files From Home Screen

    The username can be admin or other regular users. The Home screen displays. You can click on the icon to listen to the music, watch the movies or enjoy the photos stored in the NSA221. Figure 24. NSA221 Home Screen.
  • Page 10 You can select one category in the list to play the music. Figure 25. Play the music by selecting the category. Just click on the song to start playing the music. Figure 26. Music Folder. Figure 27. Music List. If you find that the media files can’t display correctly, please check the status in Applications >...

  • Page 11: Auto Upload Service

    Tube website (http://www.youtube.com). Additionally, automatically FTP uploading is supported in NSA221. To use this feature, you need to download the same package as NSA210’s. 2.1 Auto-upload pictures to Flickr For sharing pictures in Flickr website (http://www.Flickr.com), NSA221 supports automatically uploading pictures in given folder in NSA221.
  • Page 12 In the following popup browser, you need to authorize the connection between your account and your NSA221. Figure 29. Authorization between your account and NSA221. The following figure shows that you agree this link after press “OK” button. Figure 30. Successful Authorization.
  • Page 13 NSA221. Figure 31. Press “Get Ready”. You also can check the service status in NSA221 under Auto Upload > Flickr/YouTube. In this case, we can see the storage status in your Fickr account. Figure 32. Monitor the service status.
  • Page 14 Figure 33. Configure “Grace Period” in the GUI. In this example, we configure the grace period as two minutes. This means that NSA221 will upload any new added pictures in the folder you specify after 15 minutes since you press apply button.
  • Page 15 Please specify the given folder that NSA221 will watch and upload the pictures after applying configuration. Figure 35. Specify the folder. Please remember to press “APPLY” button after specifying the given folder. NSA221 will monitor any need added pictures in the folder you assigned after you press apply button.
  • Page 16 After 15 minutes, NSA221 will upload new added photos to Flickr website. In this example, we can see one picture has been uploaded to Flickr website. Figure 37. Uploaded photo.

  • Page 17: Package Management

    3. Package Management Package management is used to set up more useful applications in NSA221. This feature enables user to use the following applications: BackupPlanner, DyDNS, Gallery, NFS, PHP-MySQL-phpMyAdmin, SMART, SqueezeCenter, Wordpress and eMule. Firstly, click Applications > Package Management to display the screen. Then the applications are listed as below.
  • Page 18 Figure 39. Additional links in the navigation panel after applications installed and enabled. Figure 40. Original navigation panel before applications installed. For Gallery, PHP-MySQL-phpMyAdmin, SqueezeCenter and Wordpress, you can access the applications’ web configurators through the Package Management screen or enter the IP address shown in the GUI in your web browser.

  • Page 19: Gallery

    Figure 41. Applications’ link. 3.1 Gallery Gallery is a web-based application that allows NSA221 to host photos. You can upload photos in the local computers or stored in NSA221. Use the administrator account of NSA221 to log in to the Gallery GUI.
  • Page 20 Figure 43. Use Admin account to log in. Figure 44. Upload photos from NSA221. Figure 45. Add selected files. Then you can view the uploaded photos and edit photos in the screen.
  • Page 21 Figure 46. Uploaded photos.

  • Page 22: Chapter 2 Faq

    External file system: FAT32, FAT16, EXT2, EXT3 and Reiser FS. 4. Which kind of the multimedia server does NSA221 support? NSA221 supports Squeeze Center, DLNA server, UPnP AV Server, iTunes Server. 5. Does NSA221 support DLNA media server? Yes. NSA221 supports DLNA 1.5 compliant media server.
  • Page 23 9. Which kinds of web browsers are supported by NSA221? NSA221 supports Internet Explorer 6.0 and later versions, and Firefox 2.00 and later versions. Currently, NSA221 cannot support Safari now.
