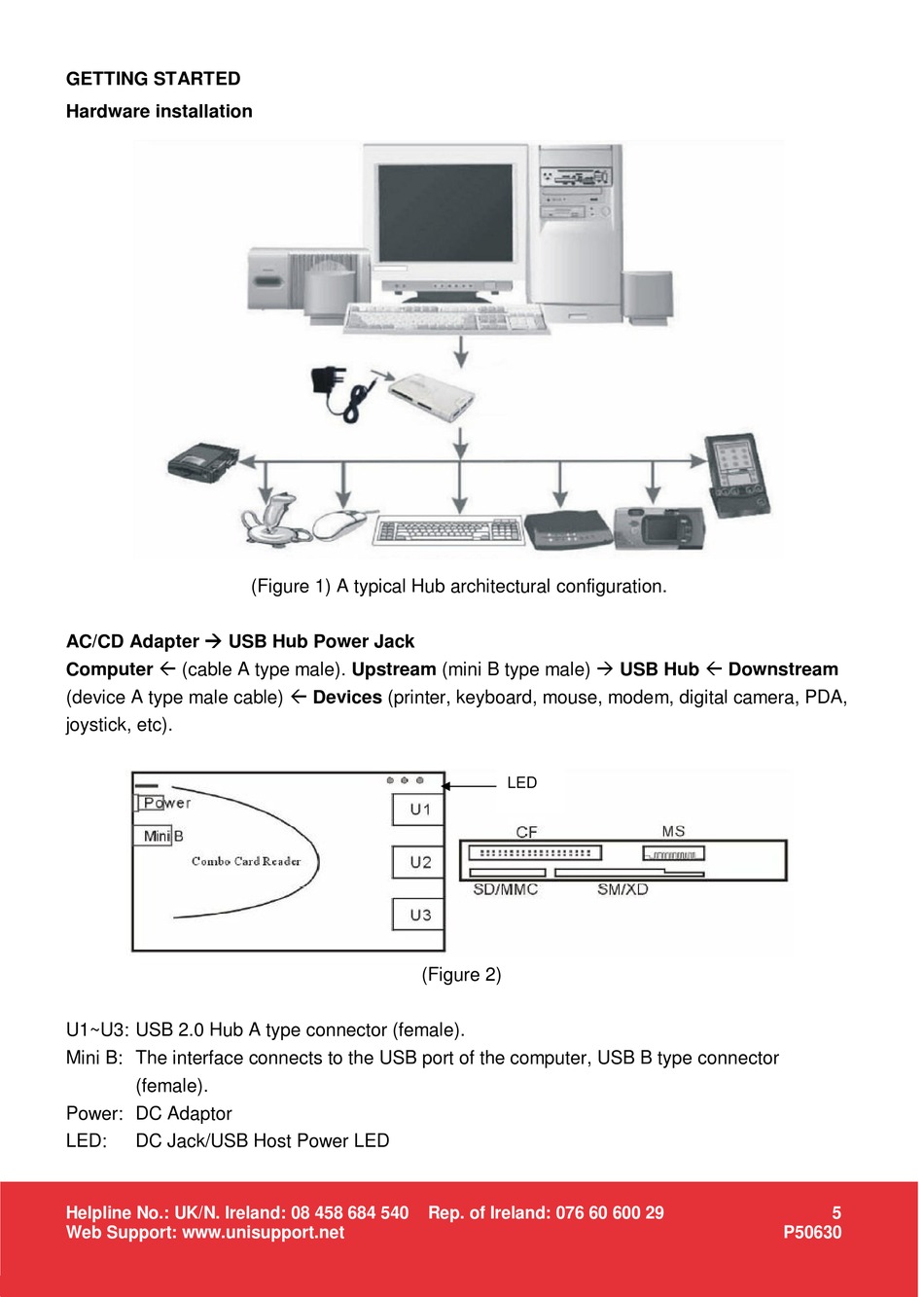

GETTING STARTED

Hardware installation
AC/CD Adapter  USB Hub Power Jack
Computer  (cable A type male). Upstream (mini B type male)  USB Hub  Downstream
(device A type male cable)  Devices (printer, keyboard, mouse, modem, digital camera, PDA,
joystick, etc).
U1~U3: USB 2.0 Hub A type connector (female).
Mini B: The interface connects to the USB port of the computer, USB B type connector
(female).
Power: DC Adaptor
LED: DC Jack/USB Host Power LED
Helpline No.: UK/N. Ireland: 08 458 684 540
Web Support: www.unisupport.net
(Figure 1) A typical Hub architectural configuration.
(Figure 2)
LED
