ScanExpress S40 User Manual

A4 portable scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

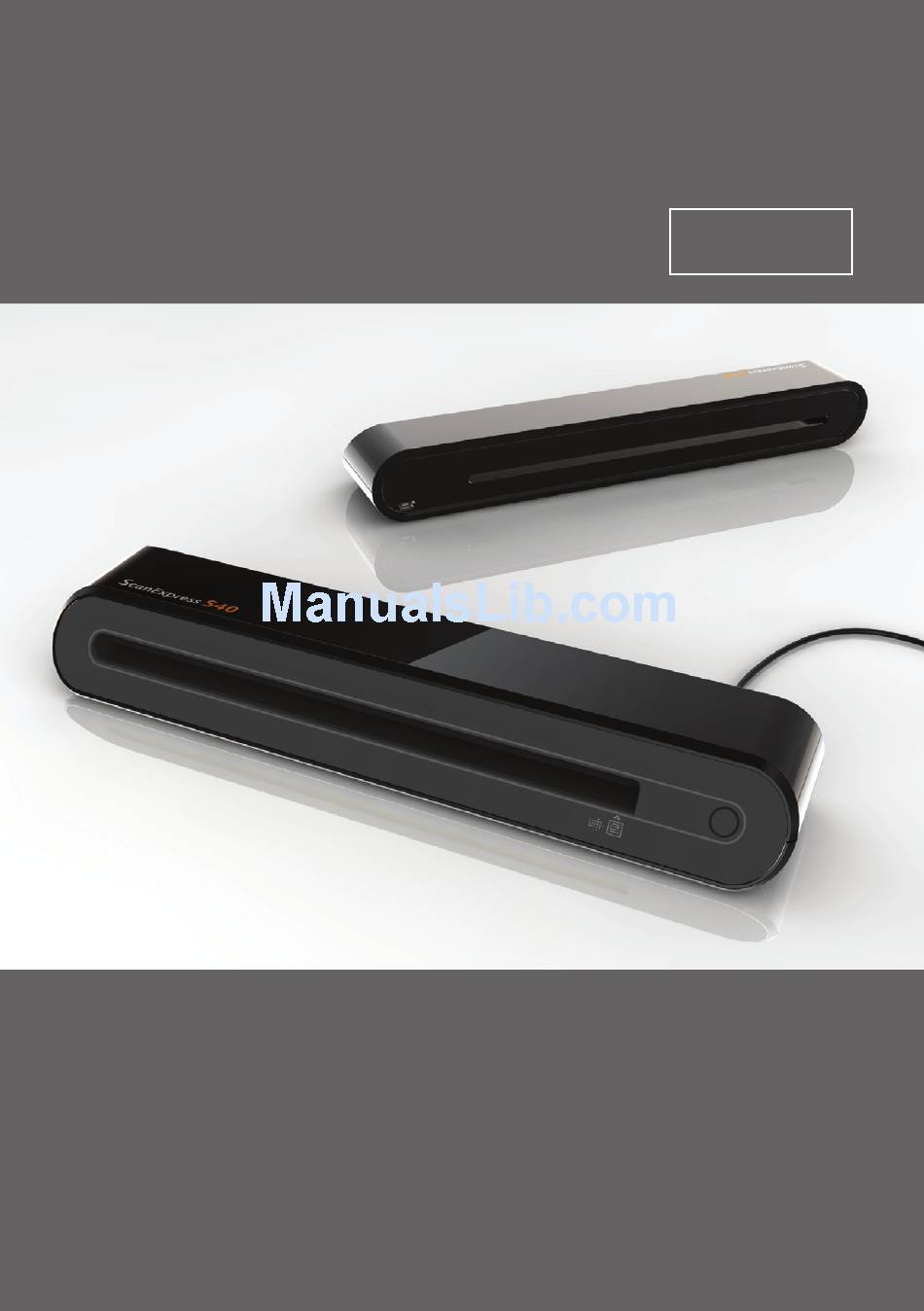

ScanExpress S40
A4 Portable Scanner
ENGLISH
User Manual
Thank you
for purchasing this Portable Scanner. With this
ideal portable scanner, you can easily carry it around with you to
special events or meetings. A convenient USB interface power supply
is used, there is no need for batteries and AC power supply. Read the
following instructions for more details.
The style and parts of the product shown in this manual may be
different from the actual unit due to various models.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S40 and is the answer not in the manual?

Questions and answers

Summary of Contents for ScanExpress S40

  • Page 1 ScanExpress S40 A4 Portable Scanner ENGLISH User Manual Thank you for purchasing this Portable Scanner. With this ideal portable scanner, you can easily carry it around with you to special events or meetings. A convenient USB interface power supply is used, there is no need for batteries and AC power supply. Read the following instructions for more details.

  • Page 2: Table Of Contents

    - Installing the Scanner Driver..........5 - Installing Other Softwares..........5 Installing Hardware..........6 Direct Scanning Using the Scan Pad on the Scanner.7 - ScanExpress workspace overview.........7 - Scan Setting...................7 - Scanning and Processing Image..........8 - Calibrate or Clean the Scanner..........8 TWAIN Software Scanning (for PC)......9 - TWAIN Driver................9...

  • Page 3: Safety Information

    Safety Information • Keep away from water or moisture and dusty areas. • Never store in hot and very cold areas. • Only use attachments/accessories specifi ed by the manufacturer. • No objects filled with liquids, such as vases, shall be placed on apparatus.

  • Page 4: Getting Familiar With The Product

    Getting Familiar with the Product Package Contents Scanner USB Cable Installation CD User Manual Carry pouch User Manual Calibration paper Scanner Parts Front View Rear View 1. Paper Feed Slot 3. USB Port 2. LED Power Indicator/Scan 4. Paper withdraw slot...

  • Page 5: Installing Software

    Installing Software ATTENTION: 4. InstallShield Wizard will Please complete the software remind you when the software installation before connecting the installation is complete. scanner. Do not connect USB cable to the scanner or PC at this stage. Installing the Scanner Driver 1.

  • Page 6: Installing Hardware

    Note: Two pop-ups will appear at the right side of task bar after the computer detects the new ScanExpress S40 Scanner hardware being inserted. 2. The Windows Hardware Manager will detect the hardware and start to install it.

  • Page 7: Direct Scanning Using The Scan Pad On The Scanner

    Direct Scanning Using the Scan Pad on the Scanner Please click on the ScanExpress 1. Scan 2. Calibrate and Clean ) from Program list in Start menu to start the program as 3. Rotate clockwise 90° following steps: 4. Rotate counter-clockwise 90°...

  • Page 8: Scanning And Processing Image

    Fax Viewer to view the Note: Position the paper aligning exported TIFF fi le. with the right side of the feed slot 5. To exit the Scanexpress window, if it is smaller than A4 size. press "Exit" icon on the toolbar.

  • Page 9: Twain Software Scanning (For Pc)

    PhotoShop). document is grasped by the 2. Click on File → Import to select feed slot. ScanExpress S40 Scanner Note: Position the paper to start the scanner's TWAIN aligning with the right side of driver. The Figure 1 will appear the feed slot if it is smaller than on the screen.

  • Page 10: Enhance Setting

    Filters Setting 3. A scan preview window appears on the screen and then displays it in the TWAIN- The Filters Tab allows you to adjust compliant application (where the individual effects of the scanned you opened up the scanner's image by applying various fi lters to TWAIN window) after scanning the image, prior to scanning.

  • Page 11: Twain Software Scanning (For Mac)

    TWAIN Software Scanning (for Mac) 3. Once the destination has been This chapter is for the installation selected, click "Install" button of the ScanExpress S40 TWAIN to contiune the installation driver in Macintosh OS 10.4 or procedure. higher version. Once the driver...

  • Page 12: Start A Scan

    Setting section on page 9 for the setting details. 1. Start the TWAIN-compliant application (eg. Adobe PhotoShop). 2. Click on File → Import select ScanExpress S40 Scanner to start the scanner’s TWAIN driver. The Figure 1 will appear on the screen.

  • Page 13: Calibrate Or Clean The Scanner

    Calibrate or Clean the Scanner • To get high image quality and good recognition results, please calibrate and clean the scanner before scanning documents. • Calibration allows you to adjust the color of the scanned images so that the appearance of the image closely matches the colors of your original document.

  • Page 14: Specification

    Specifi cation Scanner Type Color CIS Sheet feed Resolution Optical: 600 dpi (H) x 600 dpi (V) Scan Area Max. 216 x 355 mm (Legal Size) Light Source Interface USB 2.0 Scanning Mode Color mode, Gray Mode, Line Art Scanning Speed 4ppm at A4 300 dpi B/W 2.7ppm at A4 300 dpi color System Support...

  • Page 15: Troubleshooting

    Troubleshooting • Check to make sure the USB cable is fi rmly plugged into the scanner and the computer. • Please calibrate or clean the scanner if the scan result is poor quality.
  • Page 16 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
