QuickSpecs
Overview
Introduction
Introduction
Introduction
Introduction
Gain a competitive edge with our simplest and most affordable thin client! Designed for remote computing solutions in ICA and RDP
environments, you will experience desktop-like performance in task-oriented work environments such as general office, medical,
financial, educational, government, and call centers.

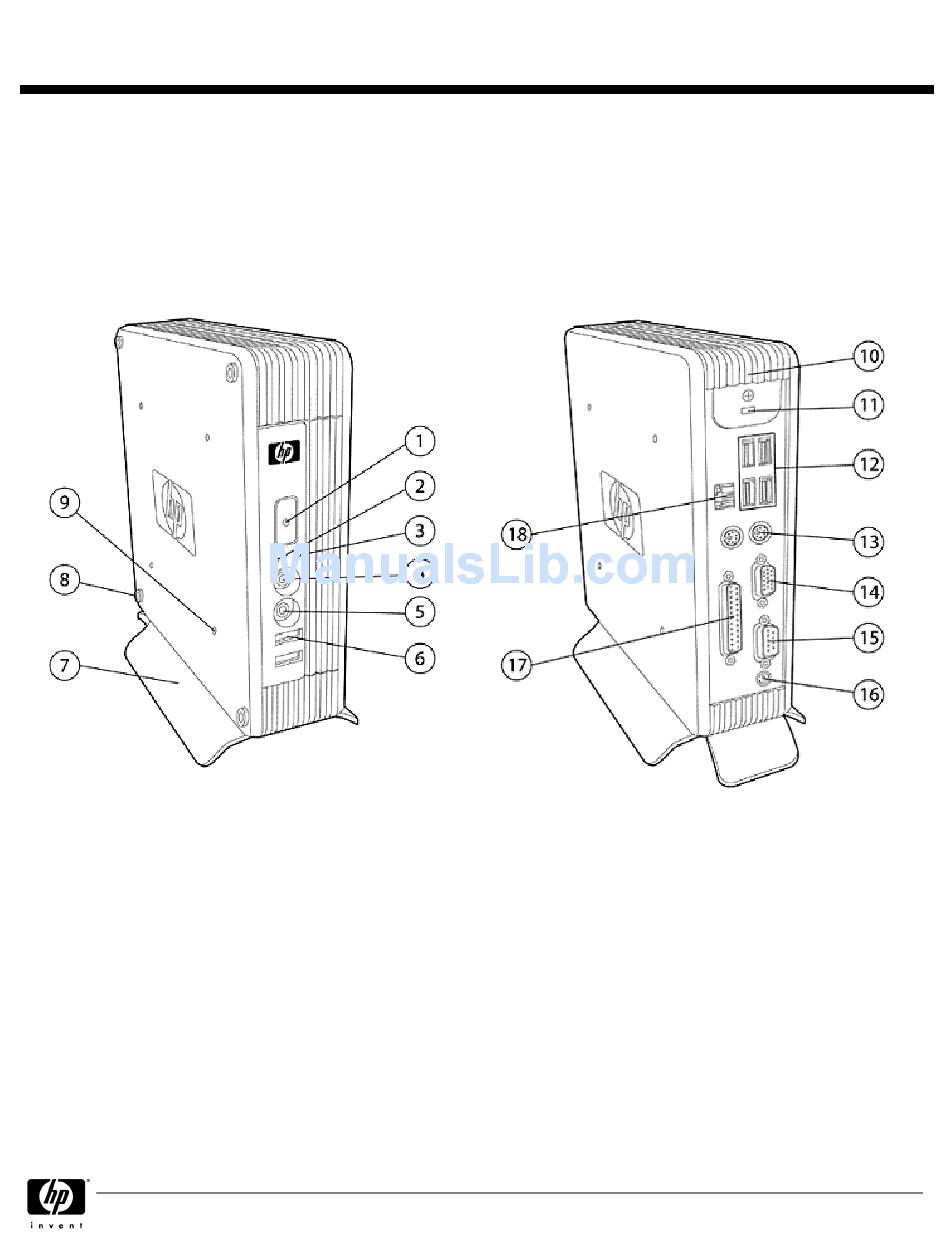

1.
Power button
2.
Flash activity indicator
3.
Power on indicator
4.
Audio connector (headphone out)
5.
Audio connector (mic in)
6.
USB connectors (2)
7.
Vertical stand
8.
Feet (4) for horizontal orientation
9.
HP Quick Release mounting points (4)
DA - 12660
North America — Version 14 — March 18, 2009
10.
Secure USB compartment
11.
Kensington lock slot
12.
USB connectors (4)
13.
PS/2 connectors (2)
14.
VGA connector
15.
Serial port connector
16.
+12V DC power input
17.
Parallel port connector
18.
10/100 RJ-45
HP Compaq t5135 Thin Client
HP Compaq t5135 Thin Client
HP Compaq t5135 Thin Client
HP Compaq t5135 Thin Client
Page 1

Advertisement

loading

Related Manuals for HP Compaq t5135

Summary of Contents for HP Compaq t5135

  • Page 1 QuickSpecs HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client Overview Introduction Introduction Introduction Introduction Gain a competitive edge with our simplest and most affordable thin client! Designed for remote computing solutions in ICA and RDP environments, you will experience desktop-like performance in task-oriented work environments such as general office, medical, financial, educational, government, and call centers.
  • Page 2 USB wireless and Flash devices. Run your HP t5135 in the familiar local mode with settings stored locally, or run it in a "stateless" (network) mode with settings stored remotely. Take the unit out of the box, attach it to the network and it downloads settings automatically. This is our easiest client ever to deploy and manage, and it's perfect for office environments with open seating.

  • Page 3: Standard Features - Models

    QuickSpecs HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client Standard Features - Models Models Models Models Models RK271AA#ABA RK271AA#ABA RK271AA#ABA RK271AA#ABA Model Name Model Name Model Name Model Name...
  • Page 4 ELO Touch 1515L Flat Panel – USB/serial combo E849124 ELO Touch 1725C CRT – USB/serial combo E248189 ELO Touch 1526C CRT – USB/serial combo E833965 HP L5006tm LCD Touchscreen – USB/serial combo RB146AA Security Security HP USB Smartcard Keyboard ED707AA...
  • Page 5 Option available directly from third party. Only serial is supported. Service levels and response times for HP Care Packs may vary depending on your geographic location. Restrictions and limitations apply. For details, visit http://www.hp.com/go/carepack. 4U4847E is available in all regions; U4849E is available in Americas and Asia-Pacific/Japan.

  • Page 6: Technical Specifications

    QuickSpecs HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client HP Compaq t5135 Thin Client Technical Specifications Processor Processor Processor Processor VIA Eden 400 MHz Chipsets Chipsets Chipsets Chipsets Northbridge: VIA CN700; Southbridge: VIA VT8237...
  • Page 7 Software Included Software Included HP ThinState Tools, Citrix ICA, rdesktop RDP client, VNC Shadow, ThinPrint .print TCP client Full license of Altiris Deployment Solution (client agent) is preinstalled on every thin client. Altiris Deployment Solution (management console) is available as a free download from Altiris at: http://www.altiris.com/hptc...
  • Page 8 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
  • Page 9 HP products and services are set forth in the express limited warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
