RedPlate TweedyDrive Operations Guide
Welcome to the RedPlate Family, thank you for your purchase of a RedPlate TweedyDrive
amplifier. Please take a moment and review this manual for an understanding of all the
available features (or just put all the knobs at noon and play).
This Manual applies to TweedyDrive models produced after 6/01/2012.

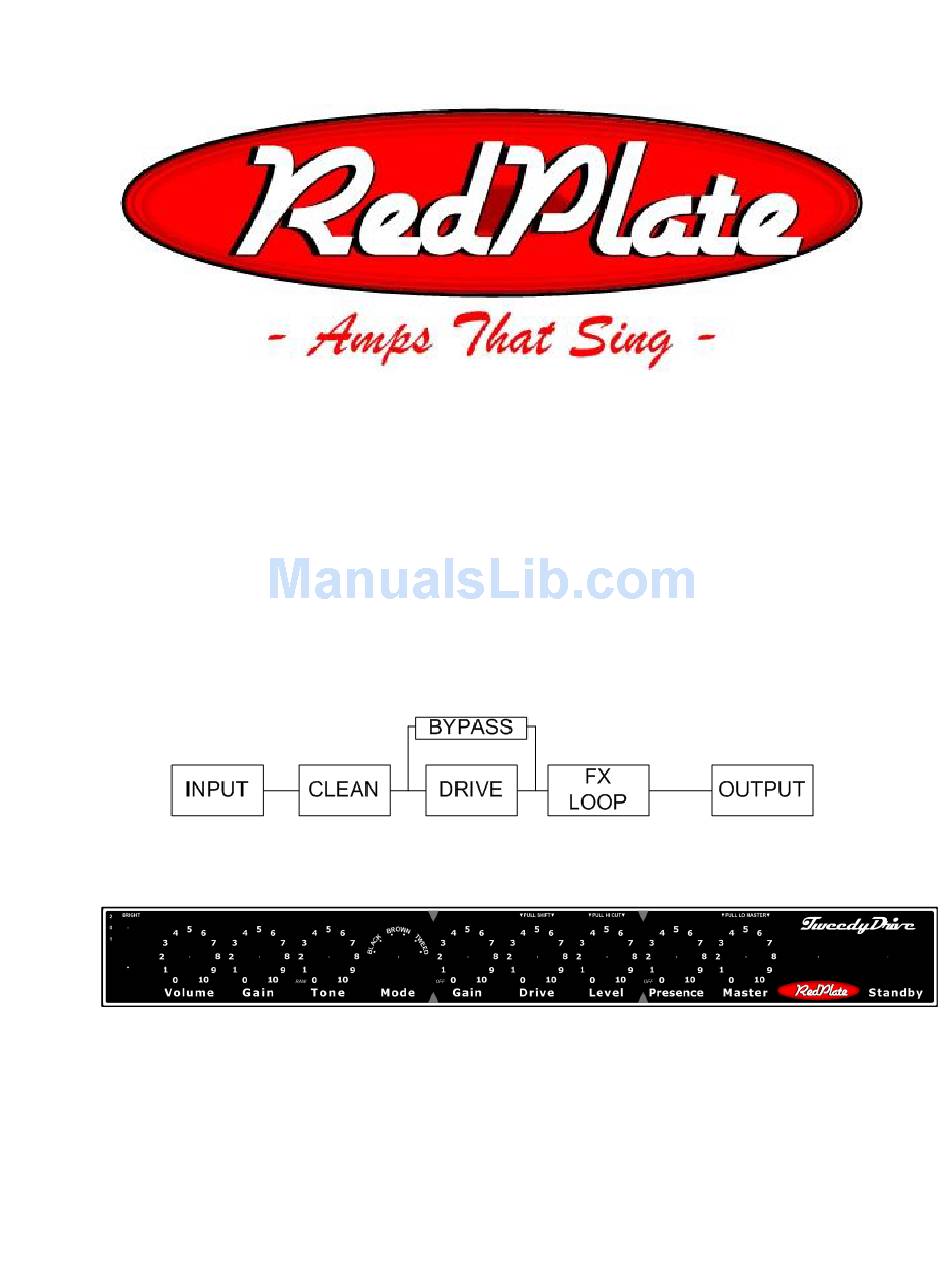

Signal Path Block Diagram:
FRONT PANEL:
Input Jack – Typical High impedance input to the amplifier. Designed to be "Pedal Friendly" in
the unlikely event you will ever use a pedal in front of the TweedyDrive.
TweedyDrive
Operations Manual
TWEED PREAMP SECTION
