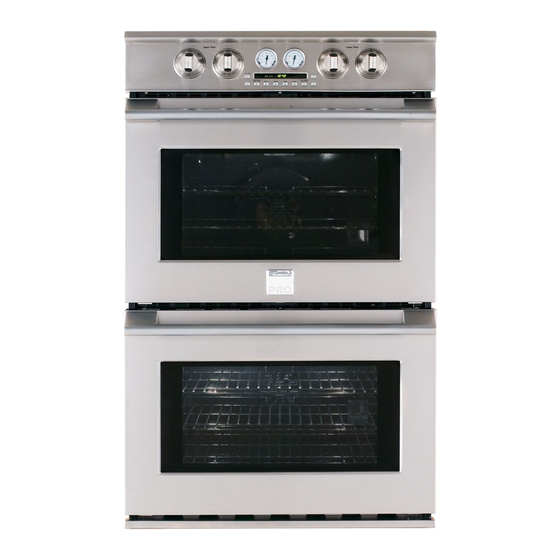

Page 1
All repair parts listed are available for immediate purchase or special order when you visit your nearest Sears Parts & Repair Center, or the Service Department at most Sears stores. To order parts by phone, call the toll-free number listed to the left or visit sears.com.
790.42003604 CONTROL PANEL CAUTION: Use the Kenmore part number to order part, not the illustration number. 08/07...
Page 3
790.42003604 CONTROL PANEL CAUTION: Use the Kenmore part number to order part, not the illustration number. POS. NO PART NO. DESCRIPTION 318257300 Shield, oven top 318260100 Cover, box 316460300 Board, display 5304453707 Screw, control mtg. 318600800 Keypad, switch 318603702 Panel, control assy, black...
790.42003604 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A BU79042003601 08/07...
Page 5
790.42003604 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. POS. NO PART NO. DESCRIPTION 318259205 Back, main 318258902 Shield, insulation, upper 318601900 Rack, oven, (3) 318365800 Rack, broiler pan 318368300 Pin, locking, (2)
Page 6
790.42003604 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A BU79042003601 08/07...
Page 7
790.42003604 UPPER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. POS. NO PART NO. DESCRIPTION 08016432 Screw, truss head, 8-18 x 0.375 108A 318251300 Bracket, fan support 316136400 Blade, fan 316136600 Nut, fan retainer...
790.42003604 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A BL79042003602 08/07...
Page 9
790.42003604 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. POS. NO PART NO. DESCRIPTION 318259205 Back, main 318258902 Shield, insulation, upper 318601900 Rack, oven, (3) 318368300 Pin, locking, (2) 318603801 Ladder, oven rack, (2)
Page 10
790.42003604 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. 108A BL79042003602 08/07...
Page 11
790.42003604 LOWER OVEN CAUTION: Use the Kenmore part number to order part, not the illustration number. POS. NO PART NO. DESCRIPTION 316136400 Blade, fan 316136600 Nut, fan retainer 119# 318004900 Switch, thermal 125* 5303316994 Insulation, 3.81 x 3.13 125# 316415800...
Page 12
790.42003604 DOORS CAUTION: Use the Kenmore part number to order part, not the illustration number. D79042003601 08/07...
Page 13
790.42003604 DOORS CAUTION: Use the Kenmore part number to order part, not the illustration number. POS. NO PART NO. DESCRIPTION 318260401 Trim, oven door, side, (2) 318260520 Baffle, door 318372000 Insulation, door, (2) 318372002 Insulation, door, (2) 316117500 Glass, oven door, heat barrier...
