Summary of Contents for Roth Audio BAR3

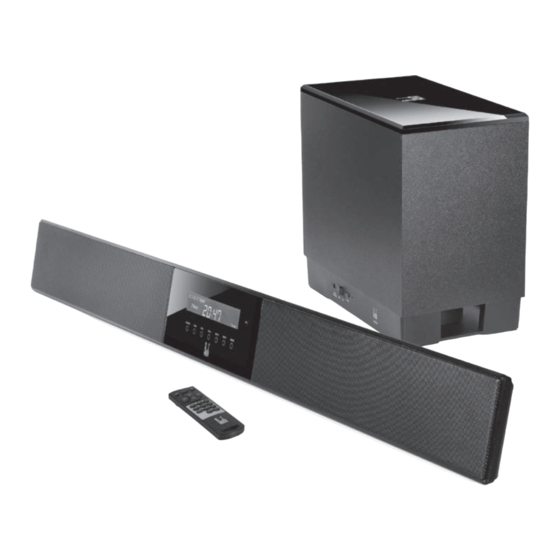

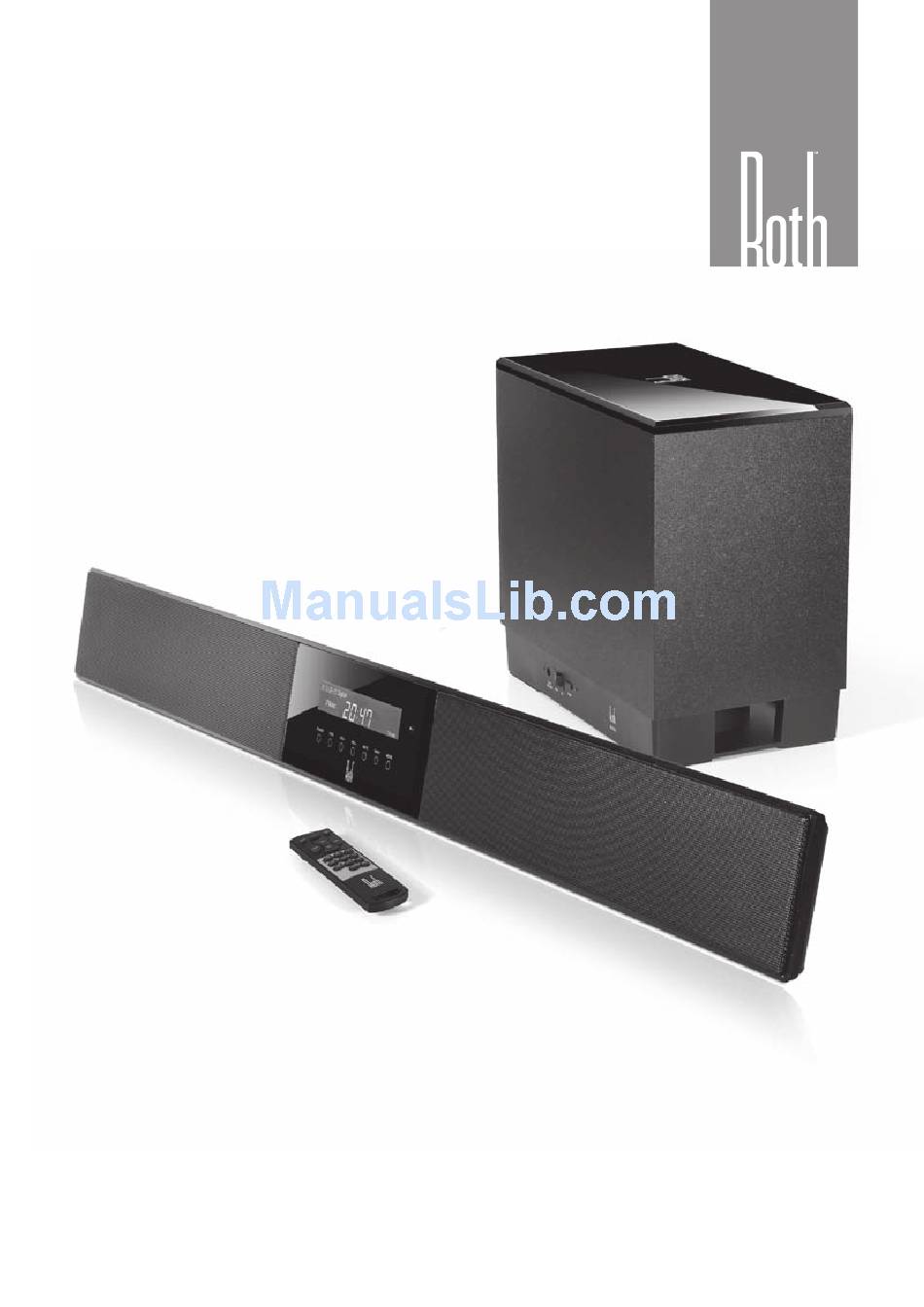

- Page 1 Roth BAR3 high-Power Soundbar with on-board DSP and Wireless Subwoofer turn it up.
-
Page 2: Important Safety Instructions
“dangerous voltage” within the maintenance (servicing) instructions in the product’s enclosure that may be of a sufficient magnitude literature accompanying the appliance. to constitute a risk of electric shock to a person. 2 | Roth BAR3 Sub Zero User Manual... -
Page 3: Wiring Instructions
USeR MANUAL enGLISH Caution risk of electric shock do not open to prevent the risk of electric shock. do not open this product. no user- serviceable parts inside. refer servicing to qualified service personnel. SerVIcInG WIrInG InStructIonS Do not attempt to service this product yourself as opening the the supply cable will be either 2-core or 3-core. -
Page 4: Front Display
Use the Vol +/- buttons to adjust the value then press the Input button to switch to the month then day, hour & minute fields. Analogue Audio Inputs optical (toslink) Digital Input 4 | Roth BAR3 Sub Zero User Manual... -
Page 5: Connections And Settings
USeR MANUAL enGLISH Connections & Settings 1. connecting to your tV’s Digital toslink audio Soundbar remote then connect your Soundbar’s 12 Volt output: If your tV has an optical digital audio output power supply to live wall power and to the input power (usually located on the rear connection panel), use the jack on the rear of the Sound bar. - Page 6 Subwoofer’s relative volume level using the Sub+ & Sub-buttons on your Soundbar remote. the Subwoofer comes with an Auto-on/off circuit. this circuit will activate the Subwoofer when the Soundbar is active and deactivate it when the Soundbar is turned off. 6 | Roth BAR3 Sub Zero User Manual...
- Page 7 USeR MANUAL enGLISH flush Wall mounting Instructions: Please note: the hanging methodology employed with this product is intended for mounting on walls of standard construction, which includes most residential and business office environments. Such environments are constructed with wooden studs behind the walls that will securely accept the enclosed screw.
-
Page 8: Specifications
Specifications Design BAR: Metal Grill. 4 mid-range drivers, 2 tweeters SUB: Glossy mirror-top finish. Wireless operation Wall Mount Capable LeD Display with Display Dimmer (to off) Volume, Mute, DSP Mode controls touch Sensitive Front Panel performance: BAR: 60 Watts SUB: 100 Watts (Wireless) Wide Frequency Response 40~20,000hz Input Sensitivity - 500mv 8 DSP Settings: Cinema, theatre, Sport, Game,...
