SpeakerCraft AIM MDU One Owner's Manual

Surface mount speaker system

OWNER'S MANUAL

AIM MDU

Surface Mount Speaker System

AIM MDU One

Table of Contents

Need help?

Do you have a question about the AIM MDU One and is the answer not in the manual?

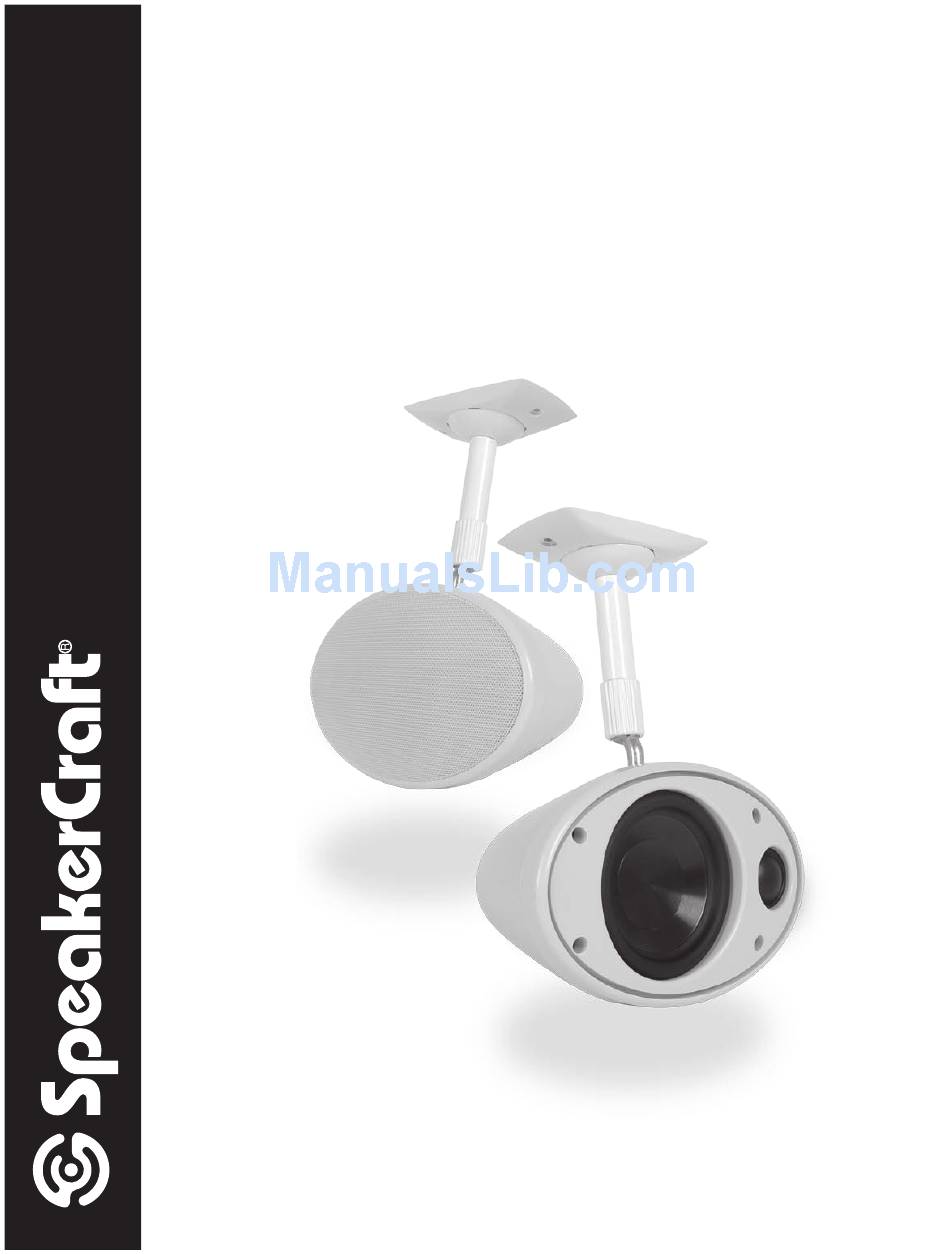

Page 1 OWNER’S MANUAL AIM MDU Surface Mount Speaker System AIM MDU One...
Page 2: Speaker Placement
SPEAKER PLACEMENT When following the below recommendations, please keep in mind that placement can be on the ceilings or walls. The AIM MDU speakers can be used as a pair for stereo listening, or for all five channels of a home theater system: front left and right, center, and rear left and right.
Page 3 SPEAKER WIRING AND MOUNTING Follow steps 1 through 6 and refer to Illustration on page 3. Step 1 Connect the pigtail wire to the speaker wire protruding from FIGURE 2 the ceiling. Observe the proper polarity with your amplifier (+ Connect wires to + and –...
Page 4 FIGURE 6 Tilting and tightening the tension ILLUSTRATION Installation Process WALL MOUNTING Example...
Page 5: Specifications
SPECIFICATIONS AIM MDU One Speaker Type: 2-Way In-Ceiling Speaker High Frequency Driver: 1” Silk Dome Tweeter with Ferro Fluid cooled Motor Structure Low Frequency Driver: 4” IMG Woofer Impedance: 8 ohm compatible Sensitivity: 87dB 1W/1m Frequency Response: 78Hz - 20kHz...
Page 6: Limited Lifetime Warranty
SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below. If this model is no longer available and can not be repaired effectively, SpeakerCraft, at its sole option, may replace the unit with a current model of equal or greater value.
