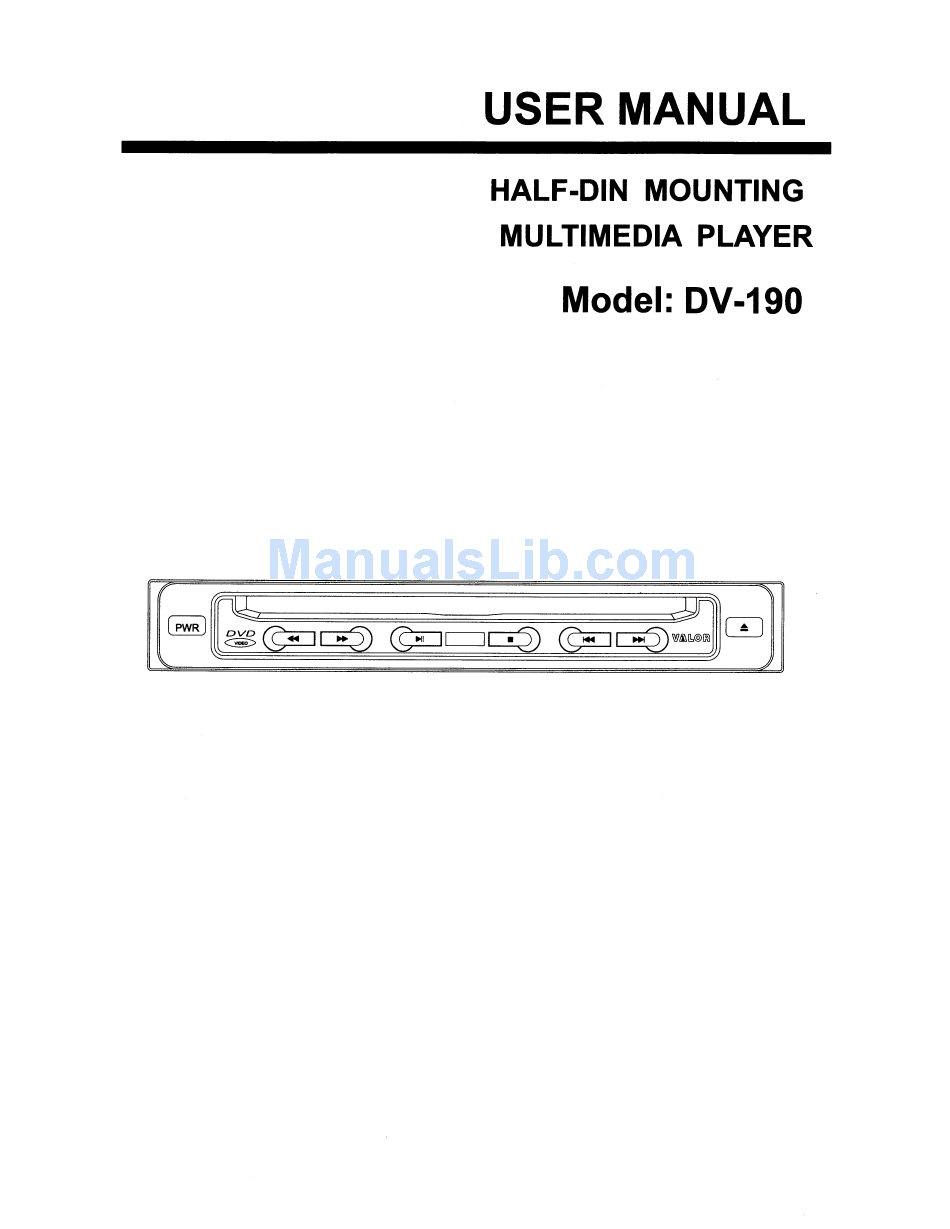

Page 1 USER MANUAL HALF-DIN MOUNTING MULTIMEDIA PLAYER Model: DV-190...
Page 2: Table Of Contents
If you take a few minutes to look through it, you'll learn how to use all the features of your new VALOR Half-Din Mounting Mobile Multimedia(DVDNCD/CD/MP3/WMA)Player for maximum enjoyment.
Page 3: Installation
Before installing or using this unit, please read this manual carefully to . ensure correct operation. Keep the manual at hand for future reference. We recommend having your DV-190 installed by an authorized installer or reputable installation center. Install Brackets * Note: To prevent a short circuit, be sure to turn off the ignition and remove the negative(-) battery cable prior to installation.
Page 4: Wire Connection
WIRE CONNECTION DV-190 ...J ...J ...J ...J ...J > < < ..J :> < < < < 0 0 0 CD CD ® TERMINAL NO COLOR REMARK DC 12V JACK DC IN 12V BLACK GROUND DIGITAL AUDIO OUT EXTERNAL REMOTE...
Page 5: Unit Display
UNIT DISPLAY ® ® REMOTE CONTROL ® G)---+-+t-E~ .+++-+------ )------+-+++ 1+-+-------\..7 )---..,..---+-t+-=:::=..=±=;:~~:::::44--l---{ :>r++--+------@ - 5 -...
Page 6: General Operation
General Operation 1. Power on - Press the PWR(1 both in the front and remote control) button to turn on the unit, and the PWR button will be in red and the other buttons on the front of the unit will light up in blue. - Press the PWR button again to turn off the unit.
Page 7 General Operation 6. Volume Press the +VOL or -VOL button (16 and 17 buttons in the remote control)to control the volume. 16 is highest, is lowest volume. -The volume can remain in previous loudness when turns on. 7. Mute Press the Mute button (14 button in the remote control) to switch "Mute on"...
Page 8: Setup Operation
SETUP OPERATION Press SET UP button(19 in the remote control) to display SET UP menu. ,~ ,~ Using ... ,'" buttons, move curser to the desired position and press ENT to operate. Press curser to back to menu. Language 1. Menu Language: English, French, Spanish, Pycck 2.
Page 9: Audio Cd Operation
AUDIO CD OPERATION When you input CD to the slot, and the CD display will show in the screen, which has current track list on the left side and CD Setup Menu on the right. Program Play You can playa program by selecting the desired tracks in the list. 1.
Page 10 AUDIO CD OPERATION - Edit Mode Using ... , button to select EDIT MODE bar on the Program List. Press ENT(24 button in remote control) to select it. After entering a Edit Mode, press ENT to select the wanted track. - Program View Using ...
Page 11: Video Cd Operation
VIDEO CD OPERATION When you input VCD to the slot, and the VCD will play automaticaly and VCD display will show in the screen. Play and Repeat Same with the Audio CD Operation (Page 8). PSC(Play Back Control) can be used with a VCD or SVCD that has PBC built into the disc.
Page 12 DVD OPERAliON Menu When playa OVO, press Menu button(18 button in the remote control) to get back to Root Menu screen of the OVO. Title When playa OVO, press Title button(13 button in the remote control) to change the main language of the OVD. Subtitle When playa OVO, press Subtitle button(11 button in the remote control) to select subtitle language of the OVO.
Page 13: Dvd Operation
DVD OPERATION Zoom Use the Zoom function to enlarge the video image. Press ZOOM button (28 button in the remote control) to zoom in. Three "zoom in" status (Zoom 1,Zoom2,Zoom3) and "zoom off' status can be selected. NTSC I PAL Conversion Press NT/PAL button to convert DVD display mode.
Page 14: Troubleshooting
TROUBLESHOOTING Problem Corrective Actions Confirm the power is on. Confirm the connection is good. Confirm the body is in a state of an instant stop. No image or the Confirm the disc is stained with alien materials or damaged. screen quality is bad It can be not replayed when the manufacturing state of disc is or shakes.
Page 15 Problem Corrective Actions I cannot choose a ratio A DVD disc is manufactured as 16:9 wide, 4:3 Movie, and 4:3 of a screen. screen according to a normal state of manufacture, a 16:9 wide disc can be seen as a 16:9 wide, 4:3 movie or 4:3 enlarged mode, and a 4:3 disc always provides a 4:3 screen.
Page 16: Specifications
SPECIFICATION DVD Output Mode NTSC I PAL Dynamic Range 90dB SIN Ratio 100dB Output Audio Output 2 VOLT RMS OUT Digital Audio 20HZ-20KHZ Video Output 1.0Vp-p: 75 OHM LOAD 1.0Vp-p: 75 OHM LOAD Input Audio Input Video Input External Remote Power Requirements DC 12V Dimension...
Page 18 Place Postage Here V,1LOR MULTIMEDIA Valor Warranty Validation Dept V,lLOR 18061 Arenth Ave City of Industry . CA 91748 ONE YEAR LIMITED WARRANTY...
Page 19 MULTIMEDIA MULTIMEDIA Please complete all fields to validate your Valor Multimedia limited warranty. Remember to include a copy of your dated sales invoice. Failure to return this card will result in warranty coverage starting on the date ONE YEAR LIMITED WARRANTY of manufacture based on your serial number, Special warranty provisions will only be honored if this card is returned complete.
