Summary of Contents for Spectare 7 in 1 Player

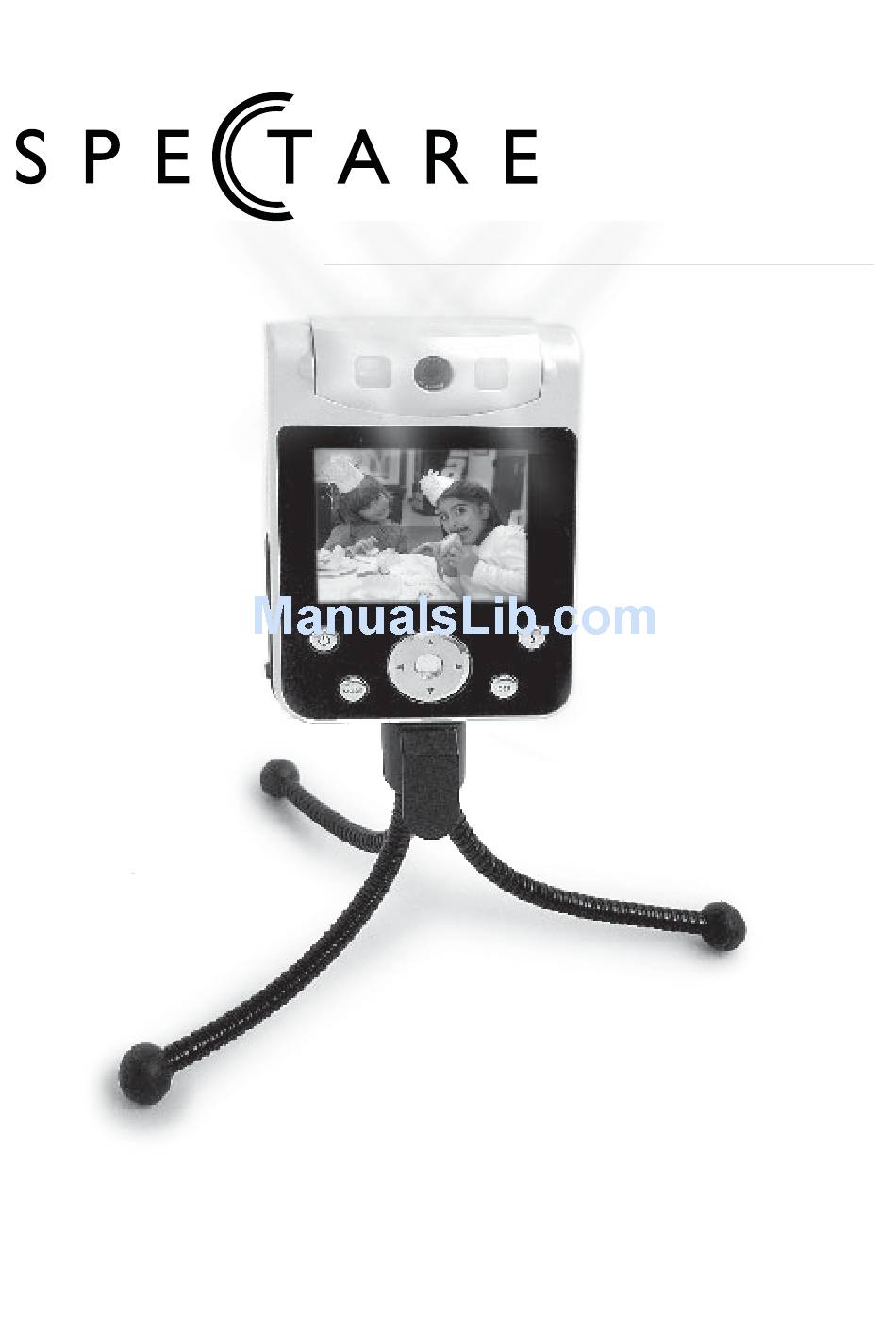

- Page 1 ™ 7 in 1 Media Player and Recorder User's Guide English...
- Page 3 Thank you for purchasing the Spectare 7 in 1 Player. Please take some time to read through and follow these important safety and operation instructions. WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
- Page 4 Battery Disposal: Do not incinerate, disassemble or short circuit the battery. Do not expose the battery to temperatures above 113 Fahrenheit. Please observe the local regulations regarding the disposal of exhausted batteries and old equipment. Spectare 7 in 1 Media Recorder / Player...
-
Page 5: Table Of Contents
Spectare Products 6081 Meridian Ave Suite 70-308 San Jose, CA 95120 http://spectareproducts.com support@spectareproducts.com The Spectare Logo and the Spectare brand are trademarked by SuMaWah LLC, San Jose, CA. Copyright 2006 SuMaWah LLC, All Rights Reserved Worldwide. user's guide... -
Page 6: Quick Start Guide
Quick Start Guide To begin using your Spectare 7 in 1 player follow these simple instructions: Using the USB cable provided connect the small end into the player. Insert the large end of the USB cable into the AC Adapter provided, then plug into wall socket. -
Page 7: Camera
Quick Start Guide Press and hold the power button located on the front of the device for about 3 seconds. Upon startup the device will display the main menu. Use the RIGHT/LEFT/ UP/DOWN keys to select one of the icons: CAMERA- see page 12 VIDEO- see page 13 CONTINUOUS- see page 14... - Page 8 Product Description: Accessories Included Software Installer AV Cable User Manual USB Cable Lithium Battery Earphones AC Adapter/ Charger Wrist Strap Screw Mini Tripod Spectare 7 in 1 Media Recorder / Player...
- Page 9 Product Description: Front Panel (Figure Exposure Light If there is insufficient light the exposure light can be turned on for additional exposure compensation. Lens The lens can be swiveled 270 degrees to face in either direction or point straight down for storage and protection of the lens.
- Page 10 Spectare 7 in 1 Media Recorder / Player...
-
Page 11: Playback
Product Description: Front Panel (Figure Memory Card Slot Accepts both SD and MMC cards up to 1 GB. To install a memory card: Turn the device front side up and insert an SD or MMC card. Press the card into the slot until it clicks. Press again to release the card. - Page 12 Spectare 7 in 1 Media Recorder / Player...
- Page 13 Product Description: Front Panel (Figure Tripod Socket Attach the tripod included or any standard tripod using the screw hole on the bottom panel. Alternately you can attach the wrist strap holder screw here. Product Description: Front Panel (Figure The battery comes pre installed. If you need to replace the battery follow these instructions: Place the camera back-side up then open the battery cover by placing your finger nail in the...
-
Page 14: Camera Mode
OSD (On Screen Display) choose the setting. Press the OSD button to turn Press the RIGHT or ENTER button the text and icon overlay ON to select the desired function to and OFF set. Spectare 7 in 1 Media Recorder / Player... - Page 15 Video Mode For taking motion video clips Starting Video Mode Press the RIGHT or ENTER From the Main Menu select button to select the desired the VIDEO icon and press the function to set. ENTER button to enter this Press the MODE or LEFT mode.
- Page 16 ENTER button to save the Press the UP or DOWN to settings. choose the setting. OSD (On Screen Display) Press the OSD button to turn the text and icon overlay ON and OFF Spectare 7 in 1 Media Recorder / Player...
- Page 17 Record Audio Mode For making voice or general audio recordings in WAV format Audio Playback Function Starting Audio Record Mode Select the PLAY A RECORD- From the Main Menu select ING icon on the Record Audio the RECORD AUDIO icon Menu.
- Page 18 MP3 Music mode seconds. Press the UP or DOWN to Delete This File: for the choose the setting. selected file. To turn on the display after the monitor is off press the OSD button. Spectare 7 in 1 Media Recorder / Player...
- Page 19 PC Web Cam Mode For use on PC with Web Video Messenger software FIRST RUN: Install the Software FIRST RUN: Install the Hardware Drivers Before starting the PC Web Cam Mode for the first time Upon the first connection of the insert the CD ROM and install camera, the “Found New Hardware the DV/DVP Series Driver...
- Page 20 Skype . With the camera automatically turn off. connected and placed in PC Turn on the power to the Web Cam mode the applica- device again tion can automatically utilize the camera. Spectare 7 in 1 Media Recorder / Player...
- Page 21 Playback Movies & Photos For playback and slide shows of images and movies. Starting PLAYBACK Mode Playback of STILL Images From the Main Menu select the UP / DOWN: Zooms image PLAYBACK icon and press RIGHT: Next image or movie ENTER.
-
Page 22: Settings
Traditional Chinese, Korean, Dutch. Reset: Select this to reset the TV Out Format: For viewing on date and time a television set the TV system. NTSC: North America, Japan, Taiwan. PAL: Europe Spectare 7 in 1 Media Recorder / Player... - Page 23 Card Reader: USB Connection To access the card storage and copy files from the PC. To Disconnect from the Computer. To use as a CARD READER On Windows click this icon on Connect the small end of the bottom task bar labeled the USB cable to the "Safely Remove Hardware."...
-
Page 24: Output To Tv
NOTE: If you do not have RCA connections on your TV you will need to purchase an adapter at your local electronics store. Spectare 7 in 1 Media Recorder / Player... -
Page 25: Troubleshooting
Troubleshooting PROBLEM: The LCD display will not come on. SOLUTION: Possibly it is a low battery. Try connecting the camera to an AC Adapter to charge the battery. Additionally, if the camera is connected to a computer as a PC Web cam the display will remain off when connected to the computer. -
Page 26: File Conversion Overview
You may wish to play other digital media files that are acquired from other cameras, discs or files from the Internet on your 7 in 1 Player. However, there are some certain “variations” between these media files even when the extension name (*.avi or .jpg) is the same. - Page 27 Some video formats will only require a one step conversion, like MPG, AVI, and JPEG. These file types can be converted directly using the DV/DVP series File Converter for playback on the 7 in 1 player device. Files that require a two step conversion process:...
-
Page 28: Dv/Dvp File Converter
Converter” on your computer. Follow the NOTE: “Device” is the disk drive, on screen instructions. After installation storage card, or device (C, launch the “File Converter” program from D, E…etc). the START Menu. Spectare 7 in 1 Media Recorder / Player... - Page 29 3: Select your destination location. When finished, you will see the completed message box.. To copy directly to your 7 in 1 Player insert a card into your device and connect to the computer via the USB cable (see page 21: Card Reader USB Connection).
-
Page 30: Technical Specifications
Technical Specifications Spectare 7 in 1 Media Player and Recorder Product: MultiMedia Card (MMC), Secure Digital (SD) Input Formats: JPEG, MP3, MP4, WAV Media Formats: Windows XP/XP Pro/ME/ 2000SP3, OS Support: Mac OS-10.x (card reader function only) USB Port: 32 MB Flash Memory Internal Memory 2.5"... - Page 32 Spectare is a registered trademark of SuMaWah LLC. © 2006 www.spectareproducts.com D40-102-D09070...
