Summary of Contents for Core Lighting Point 30

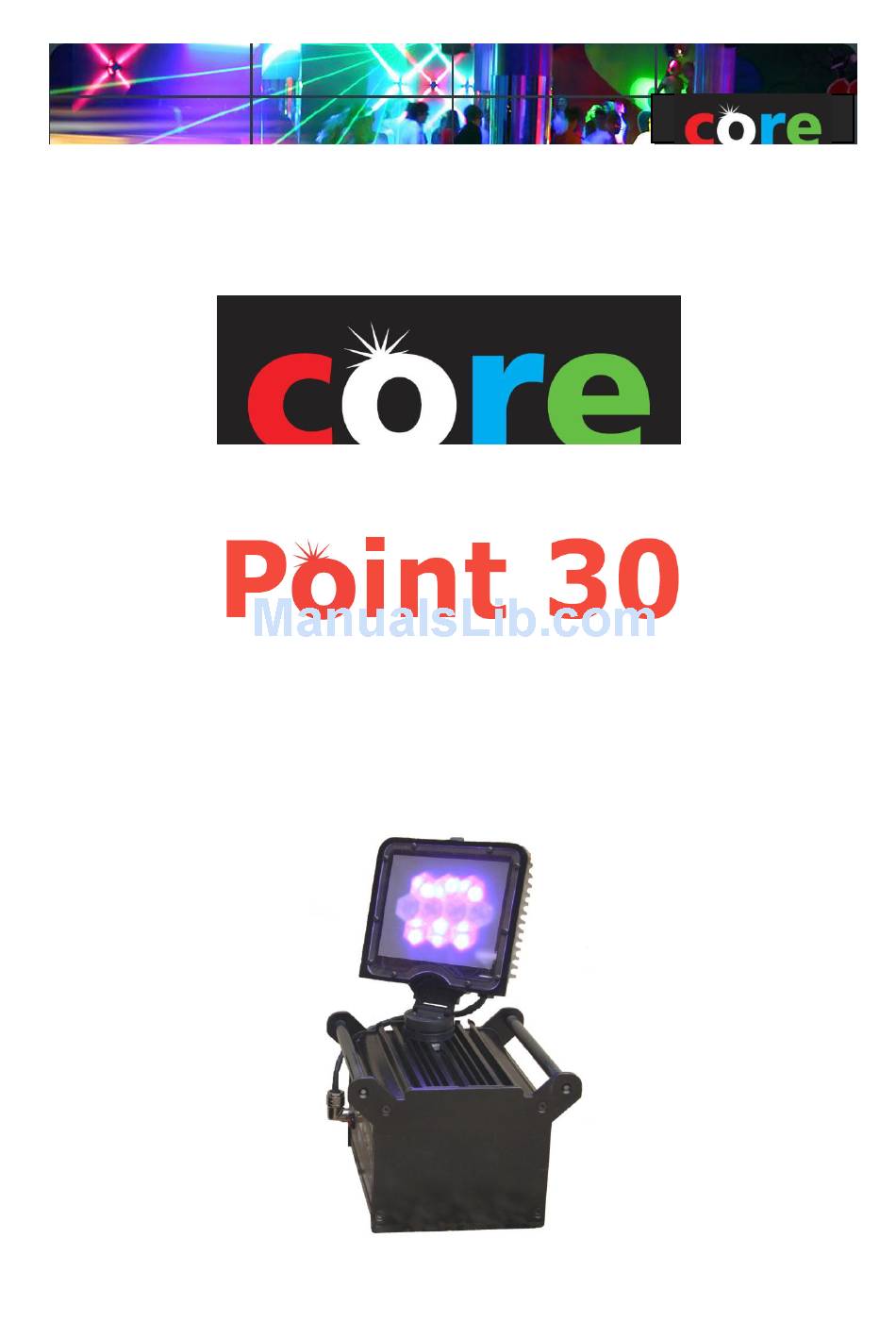

- Page 1 USER MANUAL CORE Lighting Ltd LiPo Battery Wireless Flood Light...
- Page 2 Change History Ver. Released Comments 24 April 2012 9 May 2012 ©CORE Lighting Limited 2012...
-
Page 3: Table Of Contents
MSTR RSET ........................10 4.5.3. DIAGnostics ........................10 4.5.4. SET LOCK ........................... 10 4.5.5. SET DISP ..........................10 4.5.6. SET PIN ..........................10 4.5.7. SET WDMX ........................11 4.6. WIFI Status ........................11 4.7. ADDR DMX Address ......................11 ©CORE Lighting Limited 2012... - Page 4 Note: Restrictions apply to transporting this equipment on aircraft due to the lithium polymer batteries having capacity greater than 100Wh. Please consult IATA Packing Instructions 967 and CORE Lighting Ltd for further information. ©CORE Lighting Limited 2012...
-
Page 5: Technical Features
Battery compartment temperature monitored with automatic thermal cut-out Deep discharge of battery monitored and prevented using smart relay control Battery built-in protection circuit prevents over-discharge of the battery cells Battery operating temperature capability of -20 to +50degC ©CORE Lighting Limited 2012... -
Page 6: User Control
IP Rating 65 (Totally protected against dust and low pressure water jets from any direction) W-DMX antenna built into chassis Securing hole on top and bottom plates allow padlock to be inserted for security Weight approx 8.5Kg. Dimensions (mm) 250w x 255d x 230h ©CORE Lighting Limited 2012... -
Page 7: Light Head
This fast combination makes the units capable of lighting in TV work. The head’s thermal design and correct current balancing through LED chains ensures that LED life should exceed 50,000 hours. Significant effort has been made to ensure correct thermal design to achieve this. ©CORE Lighting Limited 2012... -
Page 8: Power Source & Charging
Note: Restrictions apply to transporting this equipment on aircraft due to the lithium polymer batteries having capacity greater than 100Wh. Please consult IATA Packing Instructions 967 and CORE Lighting Ltd for further information. 3.2. Power Supply Unit (PSU) The unit may be operated by mains power continuously through the ‘Powercon’ connector. -
Page 9: Battery Charging & Discharging
“BATT FULL” is seen when charge current drops below 0.1A (see DIAGnostics menu ‘AN1’). The power supply can charge the battery and operate the unit simultaneously, although this takes longer to charge as less current can be drawn by the charger from the PSU. ©CORE Lighting Limited 2012... -
Page 10: Discharging & Led Modes
This may be monitored in the “BATT” menu option and is monitored by software so that excessive heat shuts down the unit over-charging. A steady flashing red charge status LED indicates this has occurred, meaning the battery temperature is over 45 deg. The battery is capable of operation -20 to +50 deg. ©CORE Lighting Limited 2012... -
Page 11: User Interface & Menu Options
SELF COLOUR Option This allows individual colours to be controlled on the unit menu from values of 0 to 255. This provides around 4.2 billion combinations including easily definable shades of white. ©CORE Lighting Limited 2012... -
Page 12: Self Cycle Option
LINKING & UNLINKING to a Wireless Solutions Transmitter The POINT30 needs to be linked to the transmitter being used, which is a simple process. But first the unit needs to be Unlinked from any previous unit it was “paired” with. ©CORE Lighting Limited 2012... -
Page 13: Brightness Control "Bri%" And Led "Norm" To "Long Life
This is the serial number of the unit (eg “CORE 0216”) and provides the WiFi SSID address based on the unique serial number (its WiFi unique identity). The number is set at the factory and is unique to each unit. ©CORE Lighting Limited 2012... -
Page 14: Mstr Rset
If unsuccessful the screen will say “SET FAIL”, otherwise “SET PASS”. If the PIN number is forgotten then the value for AN16 in the Diagnostics menu should be reported to CORE Lighting, without switching the unit off, who will explain the PIN unlocking procedure. ©CORE Lighting Limited 2012... -
Page 15: Set Wdmx
4.5.7. SET WDMX *This is a factory setting mode to adjust the internal operation of the Wireless DMX module and should not be used unless under technical supervision from CORE Lighting or a technically competent distributor.* 4.6. WIFI Status WiFi (where fitted as an upgrade) may be activated by selecting “WiFi ON” in the menu and pressing the “enter”... -
Page 16: W-Dmx Transmit
Router: 169.254.100.1 (This is the address for the lighting unit acting as a web server) DNS: no settings to be entered ** each device on the wireless network needs to have a different address from 169.254.100.2 to 169.254.100.200 otherwise the network will crash ©CORE Lighting Limited 2012... -
Page 17: Mechanical
(subject to the terms set forth below). CORE Lighting will repair or replace (at CORE Lighting's option) this product or any defective parts in this product. The standard warranty period is 24 months from date of purchase although this period may vary from country to country. -
Page 18: Compliance Information
For any service, in or out of warranty, please contact your dealer. 8. Compliance Information 8.1. System Compliance CORE Lighting Limited declares that this product conforms to the specifications listed in this manual, following the provisions of the European R&TTE directive 1999/5/EC: Restrictions on Hazardous Substances (RoHS) (2002/95/CE) Electromagnetic Compatibility (2004/108/EC). -
Page 19: W-Dmx Transmitter & Receiver
RF Exposure Warning for North America, and Australia Warning! To meet FCC and other national safety guidelines for RF exposure, the antennas for this device must be installed to ensure a minimum separation distance of 20cm (7.9 in.) from persons. ©CORE Lighting Limited 2012... -
Page 20: Weee & Rohs Statement
The consumer must contact their local authority or retailer for information concerning disposal of their products. CORE Lighting provides a take-back facility for batteries used within CORE Lighting products, although the expense for transport remains the liability of the consumer. Please contact CORE Lighting directly if this service is required. -
Page 21: Annex 1 - Menu Structure
ANNEX 1 – Menu Structure See attached sheet ©CORE Lighting Limited 2012...
