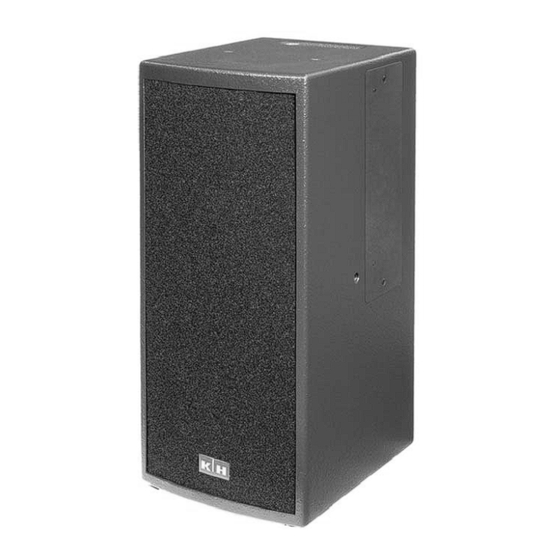

- Page 1 Portable active loudspeaker PAS 400 Installation & Operation Manual 058-E0146 Version 060328...
-
Page 2: Table Of Contents
2.3 Electret-Condenser Microphones - Distant-Miking Set-up ... 13 2.4 Electret-Condenser Microphones - Close-Miking Set-up ... 13 2.5 Mixing Console or Line-Level Inputs ... 13 2.6 Recording from the PAS 400 ... 13 2.7 TONE Controls ... 14 2.8 Rechargeable Battery -Description ... 14 2.9 Battery Replacement and Disposal ... -
Page 3: Safety Instructions
Mains Connection: This unit is designed for continuous operation. Ensure that the operating voltage of the unit matches that of the local mains current (AC line voltage). freePORT PAS 400 Version 060328... - Page 4 To protect this product from lightning damage during a thunderstorm or from power surges during an extended absence, disconnect the power cable from the wall outlet. 4 freePORT PAS 400 Version 060328...
- Page 5 PAS 400 Rear Panel View Numbered items correspond to explanations in the text freePORT PAS 400 Version 060328...
-
Page 6: Installation & Set-Up
If the temperature of the loudspeaker falls below 5 °F (-15 °C) at any time, the rechargeable battery may be permanently damaged. The freePORT PAS 400 will operate in any position and under a variety of conditions. It is, however, not watertight and should only be installed or operated in dry conditions. Areas with excessive moisture, considerable dust or aggressive chemicals should also be avoided. -
Page 7: Set Up
For maximum tilt-angle adjustability, the LH 26 fork mounting bracket can be attached to the PAS 400 with 2 x M8 knurled thumbscrews and then combined with an LH 28 tripod stand adapter to mount it to a tripod. The speaker can then be rotated and tilted to the optimum angle for the listeners. -
Page 8: Ground Lift Switch (2)
1.6 GROUND LIFT Switch (2) The signal GROUND LIFT switch should be set to the GROUND position. If the PAS 400 hums when connected to other equipment, setting the switch to the GROUND LIFTED position may reduce or eliminate the hum. -
Page 9: Power On Indicator (7)
3 years or approximately 5000 recharge cycles, with no memory effect. Battery Self-Discharge During Storage, at 77 °F (25 °C): Time since last full recharge Remaining Capacity 3 months 6 months 12 months freePORT PAS 400 Version 060328... -
Page 10: Deep Discharge Cut-Off Circuit
Connectors for unbalanced signals should be configured as follows (refer to previous Warning): XLR male connector Pin 1 Pin 2 Pin 3 10 freePORT PAS 400 Version 060328 Ground + signal -- signal Ground (shield) + signal -- signal... - Page 11 RF receivers (optional) for wireless microphones can be user-installed in the side compartment of the freePORT PAS 400. Please refer to the separate instructions for installation and connection of the receivers to the PAS 400. The PAS 400 can accommodate the following combinations of RF receivers:...
-
Page 12: Audio And Dc Outputs
30 feet (9 meters). Some examples are as follows: If the PAS 400 is used as a side-fill and is 30 feet (9 meters) or more from the FOH loudspeakers, the signal to the side-fill loudspeakers should be delayed so that the sound from all loudspeakers reaches the audience at the same time. -
Page 13: Operation
An analog recorder (e.g. Mini Disc, cassette, etc.) can be connected to the REC OUT outputs and a 2-channel mono recording of all inputs connected to the PAS 400 can be made. If the outputs of the recorder are also connected to INPUT 3 (e.g. for playback), then turn down VOLUME 3 before making any connections. -
Page 14: Tone Controls
- which may cause loop feedback when the recorders inputs and outputs are connected to the same unit). 2.7 TONE Controls The PAS 400 features three tone controls for separate adjustment of the Low (Bass), Mid (Middle) and High (Treble) frequencies. 2.7.1 Low Control The Low frequency control can be used to improve the lower tones of speech, vocals or music. -
Page 15: Troubleshooting
Turn VOLUME (3) down completely when recording Turn down TONE controls (25, 24 or 23) Replace mic cable Wiggle connectors to determine which one is defective - replace mic cable or install new connector Replace microphone Possible Solutions: freePORT PAS 400 Version 060328... -
Page 16: Performance Curves
4 Performance Curves The excellent acoustic performance of the freePORT PAS 400 can not only be heard, but also confirmed through close examination of the measurement results. The following performance curves are only a sample of these measurements. The frequency response and the tone controls were especially tailored for the applications... -
Page 17: Product Specifications
Selectable level: MIC (-45 dBu), AUX (-25 dBu), LINE (0 dBu) 12 V phantom power in MIC and AUX positions 12 dB headroom Transformer balanced, XLR / TRS combo jack Selectable level: MIC (-65 dBu), AUX (-25 dBu), LINE (+6 dBu) freePORT PAS 400 Version 060328... - Page 18 Power Supplies Power Consumption DC Out for External Equipment Protection Class Rechargeable Battery Battery Charging Circuit Run Time in Battery Mode 18 freePORT PAS 400 Version 060328 INPUT 3 RF-RECEIVER INPUT LINE OUT REC OUT MONITOR SPEAKER Power On Battery Charge Indicator...
- Page 19 + 2 Evolution Bodypacks - for 1 PDD 63 Delay Unit LH 26 LH 28 LH 33 (0 - 15°) / LH 36 (o - 18°) LH 29 LST 60 SR 21 LRH 100 LTR 100 LRR 100 freePORT PAS 400 Version 060328...
-
Page 20: Freeport Pas 400 Version
GmbH. It is K + H's option to repair, replace or to withdraw from the contract. In the event warranty service is required, presentation of a warranty card will not be necessary. Proof of purchase date can be made by filing copies of appropriate documents (invoice, delivery note). 20 freePORT PAS 400 Version 060328... - Page 21 K + H Vertriebs- und Entwicklungsgesellschaft mbH Auf dem Kessellande 4a 30900 Wedemark, Germany Tel. + 49 (0)5130 5848-0 Fax + 49 (0)5130 5848-11 email: info@klein-hummel.com http://www.klein-hummel.de http://www.klein-hummel.com freePORT PAS 400 Version 060328...
