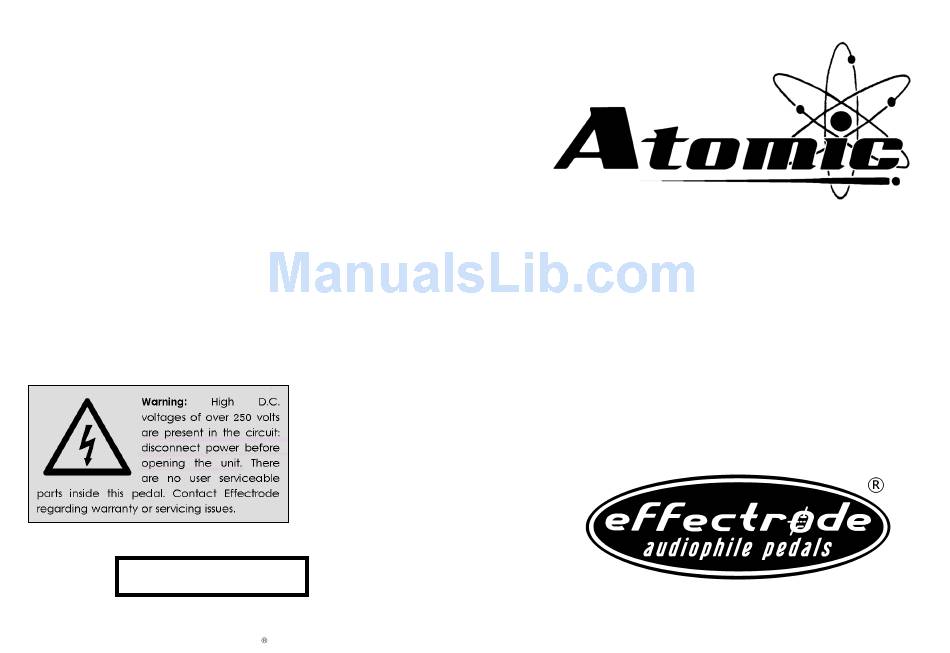

Atomic AT-1A Owner's Manual

Isolated power supply

Enlarged version

S p e c i f i c a t i o n s

• Operates anywhere in the world from 110-

250VAC

• Supplied with country-appropriate IEC mains

power cable and 4 pedal leads

• 4 x 12VDC isolated outputs @ 1250mA

completely eliminates earth loops

• One of the outputs can be configured to power

9VDC center negative pedals

• Short circuit/overload protection protects your

tube pedals

• Power requirements: 110 – 240VAC IEC 3 pin

connector

• Dimensions: width 7.5"; depth 4.8"; height 1.5"

• Weight: 1lb14oz (on Earth)

• Construction: Solid die-cast aluminum box

• Finish: titanium-silver powder coat

Serial #

AT-1A

I S O L A T E D P O W E R S U P P L Y

Owner's Manual

12 Broughton Crescent, Barlaston,

Staffs, UK. ST12 9DB

www.effectrode.com

Table of Contents

Need help?

Do you have a question about the AT-1A and is the answer not in the manual?

Page 1 • Dimensions: width 7.5"; depth 4.8"; height 1.5" • Weight: 1lb14oz (on Earth) • Construction: Solid die-cast aluminum box • Finish: titanium-silver powder coat Serial # AT-1A 12 Broughton Crescent, Barlaston, Staffs, UK. ST12 9DB www.effectrode.com Copyright © 2011 Effectrode Audiophile Pedals...
Page 2 I n t r o d u c t i o n N o t e s Thank you for purchasing the Atomic Isolated Power When installing Atomic, ensure adequate Supply model AT-1A. The AT-1A is specially ventilation around the enclosure and do not obscure...
Page 3 S e t u p s And finally, here are the jumper settings for 9V center positive pedals. The Atomic powering four Effectrode tube pedals.
Page 4 C o n f i g u r a t i o n negative pedals in a daisy-chain as shown below. The Atomic can be configured to power 9V center negative or center positive pedals using internal jumpers. To access the jumpers first make sure the unit is disconnected from mains power outlet.
