Summary of Contents for ASL Holdings Limited ASLH306
-
Page 1: User Guide

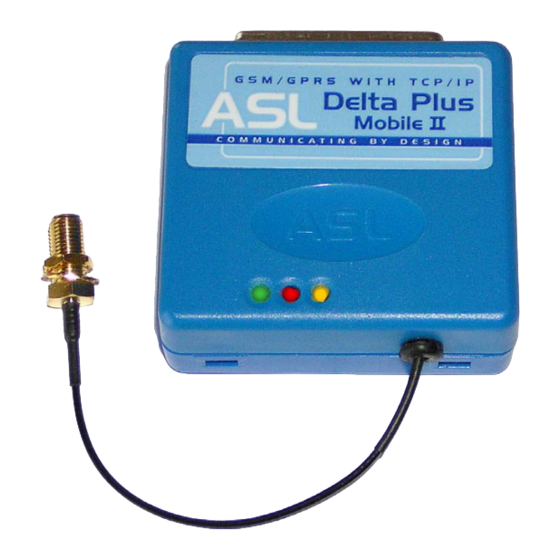

Delta Plus MOBILE II GSM/GPRS Class 10 with TCP/IP stack modem Part No: ASLH306 User Guide DRAFT COPY ASL Holdings Limited 19/09/2005 Draft Copy Version 2c... - Page 2 Delta Plus MOBILE II GSM/GPRS Class 10 with TCP/IP stack modem ASL Holdings Limited 19/09/2005 Draft Copy Version 2c...
- Page 3 Contents Guide to the manual Disclaimer Copyright Notice Trademarks Introduction Features Connecting to your Terminal or Computer Supplying power to the modem Battery Powered version. Antennae. Subscriber Identity Module card. Configuring the modem AT Command set Sony Ericsson commands S Registers Modem result codes GPRS operation Remote access feature...
- Page 4 ASLH Ltd. No patent liability is assumed however, with regard to the use of the information contained herein. Trademarks Hayes is a trade mark of Hayes Microcomputer Products Inc. Introduction Thank you for purchasing this ASLH Ltd modem, which is guaranteed for one year from the date of purchase.
- Page 5 attention of the Returns Department. No goods will be accepted without a Return Authorisation Number. Please enclose a copy of your original purchase invoice, to enable us to determine the warranty status. If no fault is found, a charge will be made to cover the costs of testing and carriage.
- Page 6 The 25 way D-type connector is wired as follows: Pin number, name and mnemonic: Transmit Data Receive Data Request to Send Clear to Send Data Set Ready Signal Ground/Supply Ground Data Carrier Detect Power In Power In Data Terminal Ready Ring Indicator Supplying power to the modem The Delta Plus MOBILE II GSM/GPRS modem is powered via the RS232...
- Page 7 of the modem issuing the “Goodbye” message then it will commence its power up sequence and restart. The battery powered modem will power up within 5 seconds after the external supply is applied given that the battery and capacitors are fully charged and that the modem is operating at room temperature.
- Page 8 Causes the modem to answer an incoming call. AT D Dial Command Causes the modem to go on line and dial the following telephone number subject to parameters set in the dial string. eg: ATDT 12345 123456^m Where “D” = Dial, “T” = Tone (Compatibility only), ^m = Carriage return. AT E Local Echo in command mode.
- Page 9 +CGREG: 0,1 +CHSR: 0 +CHSU: 0 +CMEE: 0 +CMUX: 0,0,1,31,10,3,30,10,2 +CR: 0 +CRC: 0 +CRLP: 61,61,48,6,0 +CRLP: 120,120,48,6,2,3 +CVHU: 2 +ICF: 3,3 +IFC: 2,2 +ILRR: 0 +IPR: 9600 E: 1 M: 0 Q: 0 S0: 001 S10: 002 S2: 043 S3: 013 S4: 010 S5: 008...
- Page 10 Quiet mode. Defines whether or not messages generated by the modem are sent to the DTE. AT Q0 = Quiet mode off AT Q1 = Quiet mode on AT V Verbose mode enable. Defines whether the above messages are displayed as readable text or numeric values.
- Page 11 AT &C Carrier control. This parameter defines the operation of pin 8 (DCD) of the RS 232C interface. AT &C0 = Always on AT &C1 = Fixed to this setting – Carrier goes high when on line. AT &C3 = Off in command mode – On when modem on line For compatibility only.
- Page 12 *** - Remote Access command. – When this command is issued from a remotely connected modem it will enable the remote user to interrogate and configure the ASLH306 device. AT+A RS232 auto shutdown control - toggles on / off It echoes: AT+A if auto-shutdown is on (ie RS232 in sleep mode).
- Page 13 AT+a if auto-shutdown is off (ie RS232 on all the time). (Autosave) AT+Gn AT+G0 - turns off GPRS mode. AT+G1 - turns on GPRS mode and selects the APN. (Autosave) AT+I reports ASLH 306 firmware version number, RS232 auto off state (1 = always on), baud rate, N or E for parity.
- Page 14 Sony Ericsson commands GPRS related: =========== AT+CDGCONT Define PDP Context. AT+CDGCONT = n,"IP","APN address" AT*ENAD Ericsson Internet Account Define. AT*ENAD = n,"GPRS","username","password",1,0 PAYG SIM related: ============== AT+CPBS Phone Book Store AT+CPBS=”ME” (Use “ME” memory location). AT+CPBW Phone Book Write AT+CPBW=n,”phone number”,number system,”text” (See PAYG support section).
- Page 15 at*e2apc? Response: *E2APC: 0,1,0,0 Power cycle the modem. Interrogate modem: at*e2apc? Response: *E2APC: 1,1,0,0 (Remote Access enabled) General ====== AT+CGMR This command will cause the Sony Ericsson module to display its type/version. Response: R6A023 CXC1122528 (Example). AT+CBST? This command gives information regarding the cellular network bearer channel.
- Page 16 CONNECT RING NO CARRIER ERROR NO DIAL TONE BUSY NO ANSWER GPRS operation The three main commands used to set up a GPRS call with the Delta Plus MOBILE II GSM/GPRS modem in listening mode are as follows: AT+Gn, where n = 0 to 9 AT+G0 - turns off GPRS mode AT+G1-9 turns on GPRS mode and auto connects using context 1-9 then listens for a port 23 connection.
- Page 17 Remote Access The ASLH 306 modem has the ability to be remotely accessed for both testing and configuration purposes. This is achieved as follows: 1. Establish a normal dial up connection to the ASLH 306 modem. 2. Issue the “***” command to the modem from the remote modem. 3.
- Page 18 at+t Modem will then dial number in ME memory 1 (see below). To store a number: 1/. Set memory to internal memory (not SIM): at+cpbs="ME" (Phone Book Store command) 2/. Add number: Text at end can be any characters. Use number system 145 for international type numbering, or 129 for UK type numbering (see example below).
- Page 19 LED Status (GSM Mode) Version 2.02 & 2.05 Red LED: Off for module off. On when unregistered with network. Flashes when registered with network. Green LED: Slow flash is off line. Fast flash is on line. Yellow LED: Off / Slow flash / On - with increasing signal level. LED Status (GPRS Mode) Version 2.08 and above When listening in GPRS you can identify the status of the unit : Red LED:...
- Page 20 0 or 1 parity bit. Modem Operation Controlled by AT commands and supporting S registers. Data Modulation. V22 - 1200 bps V22bis - 2400 bps V32 2400 – 9600 bps V110 2400 – 56000 bps Fax Group 3, Class 1 & 2 HSCSD (2+1), up to 28.8 kbps GPRS Class B (4+1), up to 85.6 kbps Equipment Interface...
- Page 21 Appendices Appendix 1 Hardware and software compatibility Appendix 2 Appendix 3 Power supply requirements Appendix 4 Glossary Appendix 5 Conversion tables ASL Holdings Limited 19/09/2005 Draft Copy Version 2c...
- Page 22 ASLH306 Firmware revision chart V4.0b F/W Version 10.69 Sony Ericsson Module R5B003 PIC version 4220 PCB version GPRS Originate GPRS Terminate (Listen) Remote Access Remote access to Sony module Battery External Power Lead High Power Revised SQ display Pay as you Go call back...
- Page 23 Appendix 2 ASL Holdings Limited 19/09/2005 Draft Copy Version 2c...
- Page 24 Peak power supply requirements: Power supply voltage (V) Issue f and issue e + mod is able to work over an increased range: (Calculated figures based on power consumption of 1.5 watt ASL Holdings Limited Draft Copy Version 2c Appendix 3 Peak power supply current (mA) 19/09/2005...
- Page 25 Appendix 4 Glossary of terms and abbreviations ASL Holdings Limited 19/09/2005 Draft Copy Version 2c...
- Page 26 Converting Hex to Decimal Here's a chart that shows the conversion between hex and decimal. 0 1 2 3 4 5 6 7 8 9 A B C D E F. 0 000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 1 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 2 032 033 034 035 036 037 038 039 040 041 042 043 044 045 046 047 3 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063...
- Page 27 Converting Hex to Octal Here's a chart that shows the conversion between hex and octal. 0 1 2 3 4 5 6 7 8 9 A B C D E F. 0 000 001 002 003 004 005 006 007 010 011 012 013 014 015 016 017 1 020 021 022 023 024 025 026 027 030 031 032 033 034 035 036 037 2 040 041 042 043 044 045 046 047 050 051 052 053 054 055 056 057 3 060 061 062 063 064 065 066 067 070 071 072 073 074 075 076 077...
- Page 28 Index ASL Holdings Limited 19/09/2005 Draft Copy Version 2c...
- Page 29 ASL Holdings Ltd, The Oaks, Spring Hill Office Park, Spring Hill Farm, Harborough Road, Pitsford, Northampton NN6 9AA Tel: +44 (0)1604 883880 Fax: +44 (0)1604 883881 e-mail: sales@aslholdings.co.uk web: http://www.aslholdings.co.uk ASL Holdings Limited 19/09/2005 Draft Copy Version 2c...
