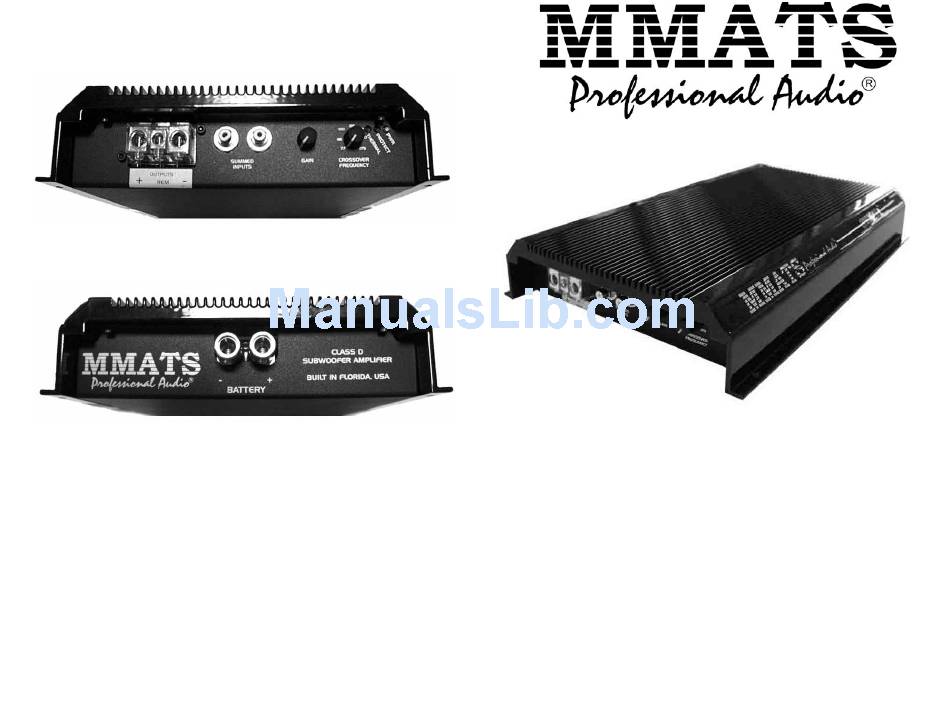

P
ANEL
Speaker & Remote Terminals
RCA Inputs
4 AWG Power Terminals
S
PECIFICATIONS
RMS Power at 13.8V
1400W into 1 ohms with less than 1% THD+N
2200W into 1/2 ohm with less than 1% THD+N
S/N Ratio: -92db A-Wtd
Frequency Response: <10 to 225Hz
Lowpass Filter: Variable 24db, 70 to 200Hz
Idle Current: 1A
Dimensions (LxWxH): 15" x 9.25" x 2.25"
L
AYOUT
Power/Fault LEDs
Lowpass Filter
Gain

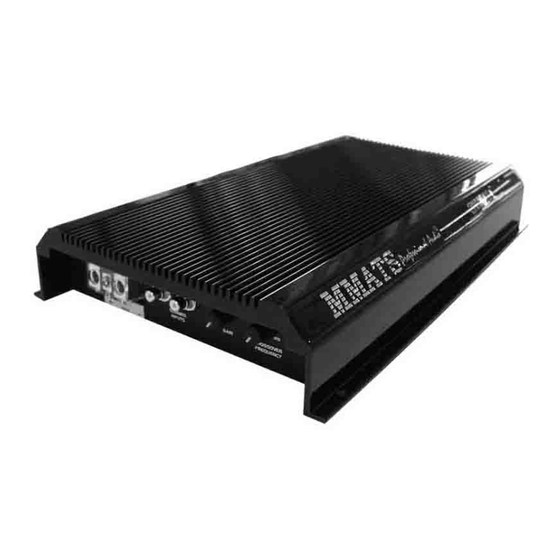

DHC x 2200.05
Owner's Guide
MMATS Professional Audio
867 West 13
Court
th
Riviera Beach, Fl. 33404
http://www.mmatsproaudio.com
Advertisement
Table of Contents
Related Manuals for MMATS Professional Audio DHCx2200.05
Summary of Contents for MMATS Professional Audio DHCx2200.05
- Page 1 Owner’s Guide RMS Power at 13.8V 1400W into 1 ohms with less than 1% THD+N 2200W into 1/2 ohm with less than 1% THD+N MMATS Professional Audio S/N Ratio: -92db A-Wtd 867 West 13 Court Frequency Response: <10 to 225Hz Riviera Beach, Fl.
- Page 2 EATURES ONTROLS AND ONNECTORS Ultra- Efficient Class D Audio Output Stage Positive Power Terminal - This is the power feed from the positive Proven Contest Winning Power (+) terminal of the car’s battery. Use 4 gauge cable and good quality terminals when routing this connection.
