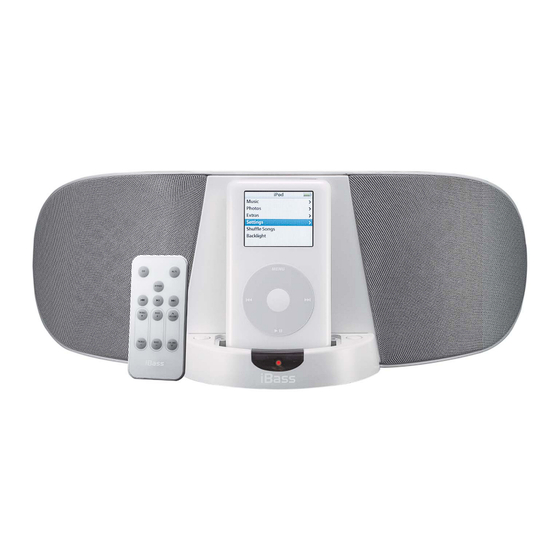

- Page 1 USER'S MANUAL iBass Music station For iPods Please read the following instructions carefully before connecting, operating or adjusting this product. Please keep this manual in a convenient place for future reference.
-
Page 2: Table Of Contents
CONTENTS Contents………………………………………………………………………… 1 Important safety instructions………………………………………………… 1 Operation introduction………………………………………………………… 3 Getting started…………….………………………….…………………………4 Using the system………………………………..………………………………5 Troubleshooting……………………………………………………………7 Specifications…………………………………………………………………..9 IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture. WARNING The apparatus should not be exposed to dripping or splashing, and objects filled with liquids. - Page 3 WARNING Keep the remote control battery away from children since batteries are a choke hazard. It may cause a fire or chemical burn if mishandled. Do not recharge, disassemble, heat above 100 C(212 F), or incinerate. Danger of explosion if battery is incorrectly replaced. Replace only with Lithium Cell CR2025, Duracell, Eveready, Energizer, Maxell, Toshiba, lithium battery.
-
Page 4: Operation Introduction
·Consult the dealer of an experienced radio/TV technician for help. This product complies with the Canadian ICES-003 Class B specification. OPERATION INTRODUCTION Thanks for choosing the iBass Music Station. The iBass is designed specially to work with your iPod. Just listen to it now! Box Content Check the carton for the parts shown in Figure 1. -
Page 5: Getting Started
3.5mm headphone cable provided with the system. Connect one end of the 3.5mm cable into the headphone jack at the back of the iBass ,and the other end to the headphone or line out jack on your portable audio device. (Figure 4-3 and 4-4) When the 3.5mm cable is used, the infrared remote cannot control your iPod functions and... -
Page 6: Using The System
USING THE SYSTEM Your iBass is power on as soon as you plug it in. You should hear the music immediately. If you do not, please refer to "Troubleshooting" on page 7. The + and - buttons on either side of the dock is the master volume control of the system. - Page 7 AUTO MEMORY FUNCTION: iBass will store your volume and treble and bass setting even it is power off; unless iBass is unplugged. AUTO STANDBY: iBass will be automatically turned to Standby if the iBass is not in use or no signal input for 2 minutes or above. Under STANDBY condition, Battery Recharge function for iPod is still working if it is docked.
-
Page 8: Troubleshooting
& is fully connected in the “line-out”, “audio-out”, or the properly headphone jack on your sound card or other audio source. iBass - Make sure the is plugged in and the LED is Power cable is not illuminated. - Page 9 Remote Control is not - Make sure nothing blocks the infrared (IR) signal path pointed toward Remote iBass . infra-red window between the remote and your Control is not - Wipe off the small red lens on the front end of the functioning remote.
-
Page 10: Specifications
SPECIFICATIONS O utput Power (THD10%) 15W×2 Speaker Unit 2.5”x2 Signal to Noise Ratio 80dB Frequency Response 80Hz~20kHz Rated Load Impedance Power Rating 100-240V~50/60Hz, 0.5A Power Consumption 118×310×145 mm Product Dimension (H×W×D) Net Weight 750g Notes 1) The specifications listed above are for reference only. 2) The technical specifications of this device are subject to changes without prior notice. - Page 11 UMA0219E Electronics Co . Ltd. All rights reserved.
