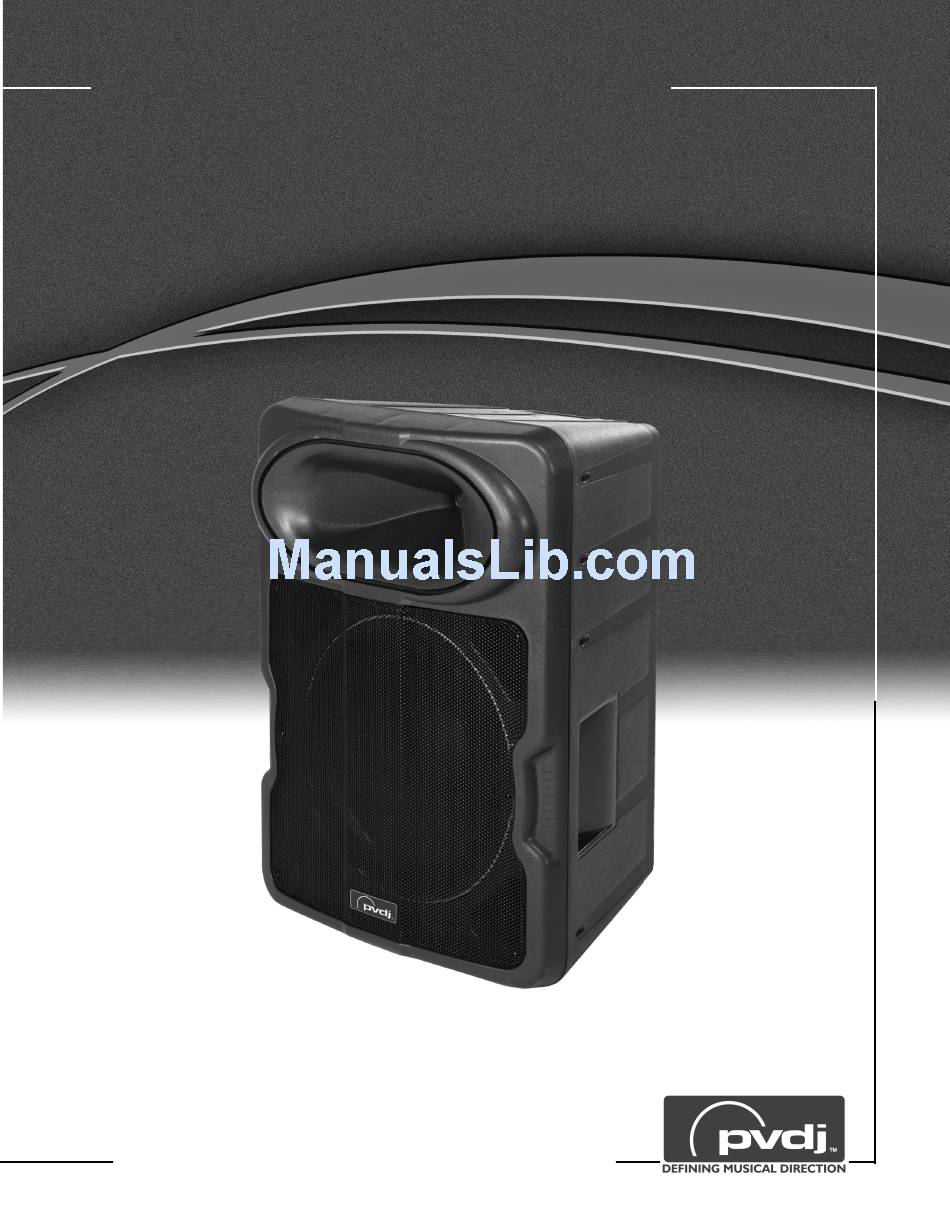

- Page 1 / 115P ™ ™ · Powered speaker system · Operations Manua 112P For more information on other great PVDJ products, go to your local PVDJ dealer or online at www.pvdj.com.
- Page 2 Intended to alert the user to the presence of uninsulated dangerous voltage within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
- Page 3 I I M M P P O O R R T T A A N N T T S S A A F F E E T T Y Y I I N N S S T T R R U U C C T T I I O O N N S S W W A A R R N N I I N N G G :When using electrical products, basic cautions should always be followed, including the following: Read these instructions.
- Page 4 It is very important that you ensure the PVDJ 112/115P has the proper AC line voltage supplied. You can find the proper voltage printed next to the IEC line (power) cord on the rear panel of the unit. Please read this guide carefully to ensure your personal safety as well as the safety of your equipment.
- Page 5 A typical signal source for the line-level inputs of the PVDJ 112P and 115P would be a sound reinforcement mixing console (mixer) or the output from a CD player, Minidisc player or tape deck. A dynamic microphone can be connected and used as well.
- Page 6 F F R R O O N N T T P P A A N N E E L L ( ( 4 4 ) ) P P O O W W E E R R / / C C L L I I P P L L E E D D Illuminates GREEN when the electronics receive power (when the Power switch (3) is On).
- Page 7 OUT position and while setting the microphone level or very loud feedback will occur! Damage to the system is likely if this occurs! DO NOT connect the inputs of the 112P and 115P to the output of a power amplifier. The inputs are meant to be driven from a line-level strength signal.
- Page 8 It is usually a good idea to leave some slack at the input to the 112P and 115P and also to tape the cables down or run them under a cable guard to avoid anyone tripping over them or pulling the 112P and 115P over when they are stand mounted.
- Page 9 (7) and (9) on the PVDJ 112P or 115P have not been set too low. Check that the input plugs are fully seated in the input jacks (5) and (8) on the rear panel of the PVDJ 112P or 115P. Ensure that the proper MIC/LINE PAD setting is being used (6) for line-level signals, or that a power amp has not been plugged into one of the input jacks of the PVDJ 112P or 115P.
- Page 10 F F R R E E Q Q U U E E N N C C Y Y R R E E S S P P O O N N S S E E C C U U R R V V E E S S Amplitude Response (1m On-Axis) Frequency (Hz) 115P Amplitude Response (1m On-Axis) Frequency (Hz) 112P...
- Page 11 Effective Date: July 1, 2003 Product Category Duration Features and specifications subject to change without notice.
- Page 12 Features and specifications subject to change without notice. PVDJ a division of Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.pvdj.com ©2004 80307138...
