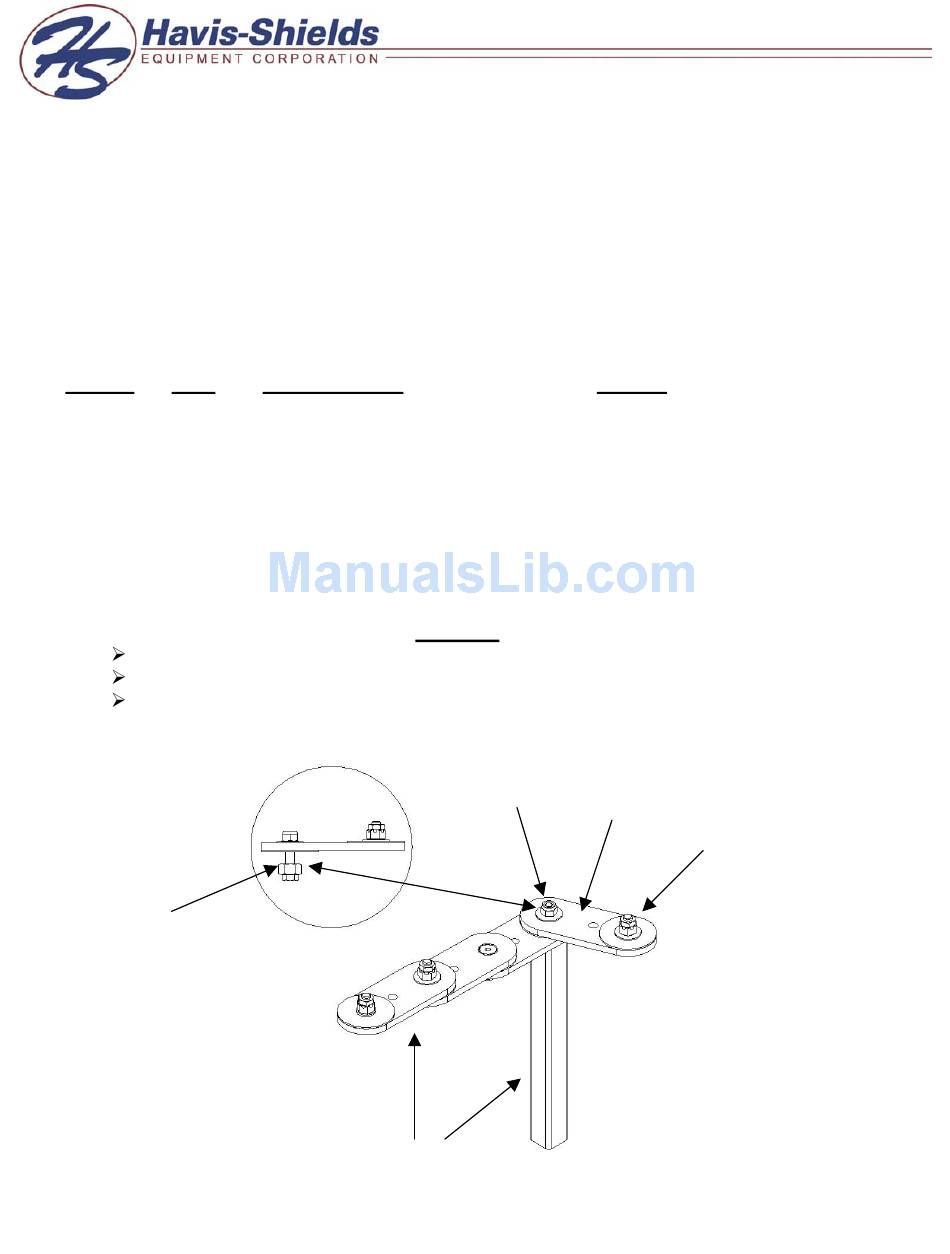

INSTALL INSTRUCTIONS C-TCB-MAK
FOR USE ON ALL STRAIGHT POLED C-TCB'S
TOOLS REQUIRED:
Ratcheting wrench
Sockets - 7/16", ½"
Combination wrenches - 7/16", ½"
HARDWARE:
ITEM #
QTY
1
1
2
1
3
1
4
1
5
2
6
2
7
1
8
1
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
#2
MONITOR ADAPTER KIT
DESCRIPTION
Rotating TCB plate
Bolt/nut weldment
5/16-24 Flex nut
5/16-24 x 1" Socket head cap screw
5/16" Belleville stainless washer
5/16" x 2" Fender washer
5/16-24 Hex jam nut
5/16-18 nylock nut
Always
Straight inner
pole assembly
T-20 torx bit
3/16" Allen key
PART #
CM93073-2
CM001491
CM86209
CM86502
GSM31092
GSM31020
GSM30070
GSM30017
!
#5, 8
#1
#3, 4, 5, 6, 7
