Flexstar Technology Pegasus User Manual

Single board computer (sbc)
Hide thumbs

Advertisement

Quick Links

Download this manual
Doc # 98-37844-00 Rev. 1.1 02/12/02

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pegasus and is the answer not in the manual?

Questions and answers

Summary of Contents for Flexstar Technology Pegasus

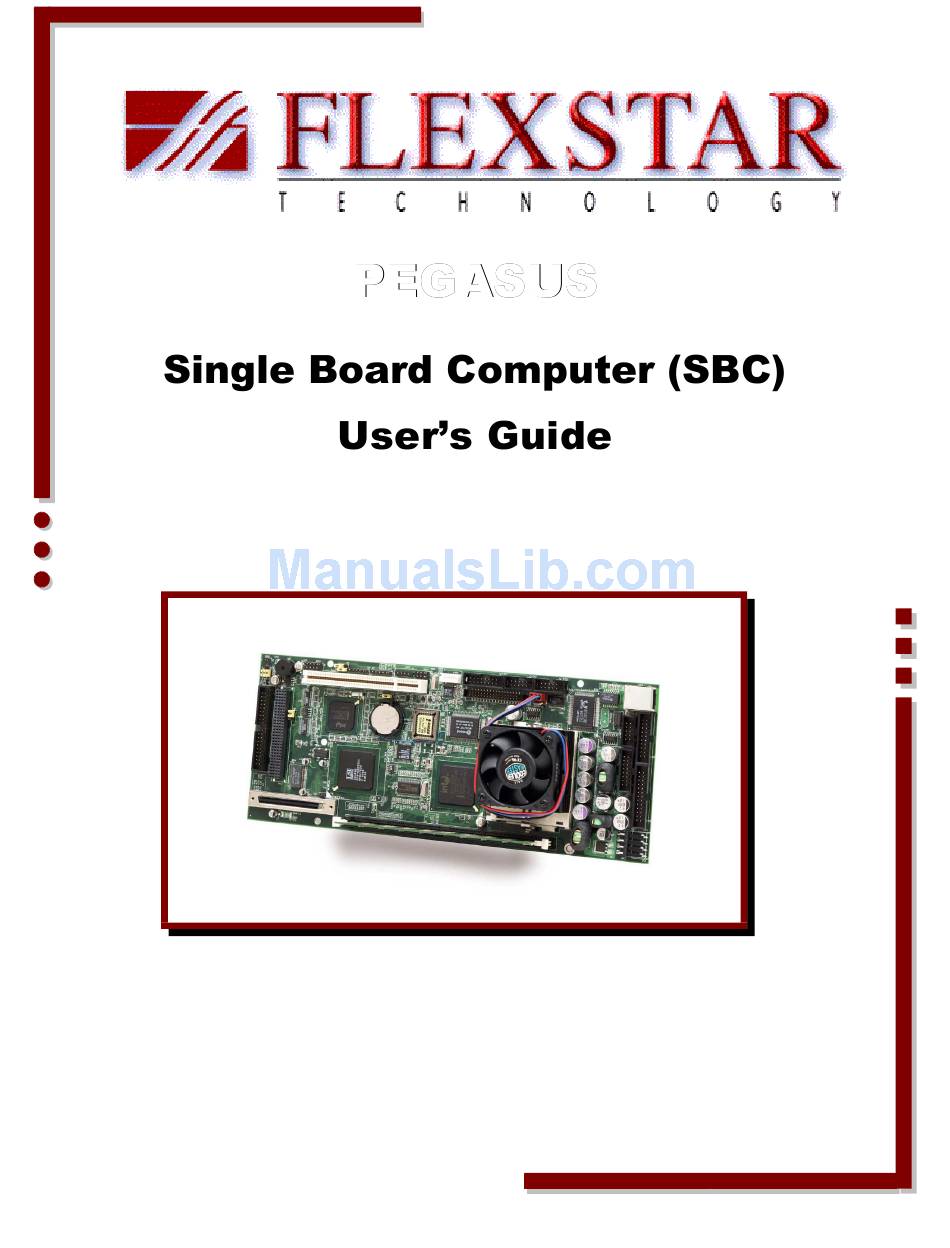

  • Page 1 Doc # 98-37844-00 Rev. 1.1 02/12/02...

  • Page 2: Copyright Notice

    For more information on this and other FlexStar products please visit our websites at: http://www.FlexStar.com For technical support and service for please visit our support website at: h ttp://www.FlexStar.com/support This manual is for the Flexstar Pegasus P/N 02-37177-00 02-37177-01 02-37177-02 02-37177-03...

  • Page 3: Packing List

    Packing List Standard Items The basic Pegasus SBC contains a 733 Mhz Celeron CPU and 32MB of DRAM memory. Other CPU types and speeds are available including the Pentium III processor (socket 370). Standard DRAM memory is 32MB but the DIMM socket can support up to 256MB.
  • Page 4 PEGASUS Table of Contents 1.0 Introduction ........................2.0 Installation ........................2.1 CPU Installation & Upgrade ........................2.2 DRAM (DIMM) Installation & Upgrade ........................2.3 Jumpers ........................2.3.1 Locating Jumpers ........................All option jumpers begin with the Jx designator. They can be located as follows: ........................
  • Page 5 PEGASUS ........................2.3.2.7 Jumper J7 – IDE Tri-state Buffer Control ........................2.3.2.8 Jumper J8 – PCI VIO & PCI PIN-A26 Select ........................2.4 Connectors ........................2.4.1 Locating Connectors ........................2.4.2 CON1 – IDE Connector ........................2.4.3 CN2 – Power Connector ........................
  • Page 6 PEGASUS ........................2.4.13 CN12 – Floppy Connector ........................2.4.14 CN13 – Audio Connector ........................2.4.15 CN14 – CD Line-In Connector ........................2.4.16 CN15 – Front Panel Connector ........................2.4.176 CN16 – USB Connector ........................2.4.18 CN17 – IR Connector ........................
  • Page 7 PEGASUS ........................4.2 Standard CMOS Setup ........................4.3 BIOS Features Setup ........................4.4 Chipset Features Setup ........................4.5 Power Management Setup ........................4.6 PnP/PCI Configuration Setup ........................4.7 Integrated Peripherals Setup ........................4.8 Frequency / Voltage Control ........................4.9 PC Health ........................
  • Page 8 Pegasus is a highly integrated and self-contained Single Board Computer (SBC). Using a Socket 370 with the Intel 810 chip set, the Pegasus board will accept a full range of Intel Celeron and Pentium III CPU’s up to 800 MHz. Pegasus’ performance is unmatched in its class with these powerful yet cost effective Intel processors and a 168 pin DIMM slot for extra large memory capacity.
  • Page 9 Buzzer Battery CR2032 battery (NOTE: battery has a limited life of 10,000 hours. The Pegasus uses a CR2032 battery, which is used to maintain the CMOS when the unit is powered off. The battery has a life of approximately 10,000 hours. How many months the battery is good...
  • Page 10 PEGASUS Pegasus Board Layout and Dimensions Figure 1-1...
  • Page 11 The Pegasus provides a Zero Insertion Force (ZIF) socket (socket 370 type) for easy CPU installation. 1. Make sure the ZIF socket lever is in the upright position. To raise the lever, pull it out to the side a little and raise it as far as it will go.
  • Page 12 Please follow these steps carefully. 1. Ensure that all power supplies to the system are switched off. 2. Locate the DIMM near the Pegasus DIMM socket so that its gold fingers point down into the DIMM socket. 3. The DIMM module has two notches on its edge connector. Ensure that the notches are facing away from the CPU.
  • Page 13 PEGASUS Figure 2-1 The option jumpers configure the Pegasus to match the needs of your application. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
  • Page 14 PEGASUS Locked Unlocked +5V Select +3.3V Select Normal Clear CMOS Disable Enable...
  • Page 15 PIN-4 & PIN-6 Short : PCI SLOT VIO is select +3.3V On-board connectors link the Pegasus SBC to external devices such as hard disk drives, keyboard, floppy drives, USB, etc. The table below lists the function of each of the board’s...
  • Page 16 CON1 allows attachment of one or two Enhanced Integrated Device Electronics hard disk drives to the Pegasus Intel 810 internal controller. This controller uses a PCI local-bus interface and supports PIO mode 3 and mode 4 with bus mastering up to 16MB/sec. It also support Ultra DMA operation up to 66MB/sec.
  • Page 17 PEGASUS DMARQ DIOW DIOR IORDY DMACK INTRQ IOCS16 PDIAG DASP Supplies main power to the Pegasus (+5 V) and devices that require +12 V. Signal Name +12V Pin # Signal Name Pin # Signal Name +DB12 +DB13 +DB14 +DB15 +DB(P1)
  • Page 18 BUSY SLCT The Pegasus board also contains a GPIO (General Purpose I/O) port that can be used to control and/or monitor an external custom piece of hardware. Fourteen (14) are available for custom control. The GPIO bits 0 - 7 are read/written through the Super I/O chip W83627 GP1 register bits 0 –...
  • Page 19 GPIO6 GPIO7 Pegasus allows the addition of PC104 Plus compatible devices via CN6. The PC104 Plus bus is a PCI compatible bus that utilizes a PC104 stackable type interface connector. The Pegasus PCI SVGA interface can drive conventional CRT displays and is capable of driving a wide range of flat panel displays, including electro luminescent (EL), gas plasma, passive LCD and active LCD displays.
  • Page 20 IEEE 802.3U 10/100Mbps CSMA/CD standards. It is supported by all major network operating systems. 10 or 100Base-T connects to the Pegasus via an adapter cable to a 10-pin polarized header (CN9). For 10Base-T RJ-45 operation, an adapter cable converting CN9 into a standard RJ-45 jack is required.
  • Page 21 PEGASUS The Pegasus SBC has full support for 1.44 MB floppy disk drives. The pinout of the Floppy Drive connector CN12 is as follows: Pin # Signal Name Pin # Signal Name WRT CUR INDEX MOTOR A SEL A SEL B...
  • Page 22 The Pegasus can drive an 8 ohm speaker at 0.5 watts. Make sure that alternatives to this specification do not overload the card. The front panel LED indicator for hard disk access is an active low signal (24 ma sink rate).
  • Page 23 N.C. +12V The Pegasus comes equipped with one standard PCI expansion slot. A 1, 2, or 3 slot riser is available for converting the PCI card mounting from vertical to horizontal and adds expansion capability for up to three PCI cards.

  • Page 24: Video = Ega/Vga

    PEGASUS The Pegasus system BIOS and Remote Boot code is located in a 512 KB, 32-pin PLCC Flash ROM device, designated U15. A single Flash chip holds the system BIOS, VGA BIOS, and network Remote Boot code. All peripherals are configured via CMOS settings. This method minimizes the number of chips and difficultly of configuration.
  • Page 25 CMOS memory. After the changes are saved, the Pegasus will re-boot. Exit Without Saving: This function will simply cause the Pegasus to re-boot without saving any changes made to any of the setup menu items.
  • Page 26 PEGASUS Figure 4-1 NOTE: Fail safe defaults are used for debugging purposes only.
  • Page 27 PEGASUS When you choose the STANDARD CMOS SETUP option from the MAIN SETUP SCREEN menu, the screen shown below is displayed. This standard Setup Menu allows users to configure system components such as date, time, hard disk drive, floppy drive and display. Once a field is highlighted, on-line help information is displayed in the left bottom of the Menu screen.
  • Page 28 PEGASUS By choosing the BIOS FEATURES SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the default values for the Pegasus. Figure 4-3...
  • Page 29 PEGASUS By choosing the CHIPSET FEATURES SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the default values for the Pegasus. Figure 4-4...
  • Page 30 PEGASUS By choosing the POWER MANAGEMENT SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the default values for the Pegasus. Figure 4-5...
  • Page 31 PEGASUS By choosing the PnP/PCI CONFIGURATION option from the Initial Setup Screen menu, the screen below is displayed. This sample screen contains the default values for the Pegasus. Figure 4-6...
  • Page 32 By choosing the INTEGRATED PERIPHERALS option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the default values for the Pegasus. Use this page to change the “On-Chip Primary PCI IDE.” Enabled is required to use the onboard UDMA-66 controller.
  • Page 33 PEGASUS By choosing the FREQUENCY / VOLTAGE CONTROL option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the default values for the Pegasus. Figure 4-8...
  • Page 34 By choosing the PC health option from the initial setup screen menu, the screen below is displayed. This sample screen contains the default values for the Pegasus. Use this page to set the CPU warning temperature and to set the shutdown temperature.
  • Page 35 PEGASUS The Pegasus is equipped with a watchdog timer that resets the CPU or generates an interrupt if processing comes to a standstill for whatever reason. This feature ensures system reliability in industrial standalone, or unmanned, environments. In order to program the watchdog timer, you must write a program, which writes I/O port address 443 (hex).
  • Page 36 PEGASUS For additional technical support, please contact your local FlexStar representative. Contact information is listed below: Flexstar Technology 47323 Warm Springs Boulevard Fremont, CA 94539 (510) 440-0170 Fax (510) 440-0177 Email: sales@flexstar.com support@flexstar.com www.flexstar.com Japan, Korea, China & Thailand PhaseMetrics www.phasemetrics.com...
  • Page 37 PEGASUS BIOS Configuration.........................25 BIOS Features.............................28 Chipset Features............................29 Entering Setup.............................25 Frequency/Voltage Control.........................33 Integrated Peripherals..........................32 PnP/PCI Configuration..........................31 Power Management............................30 Standard CMOS Setup..........................27 Installation............................11 Audio Connector............................21 CD Line-In Connector..........................21 CPU................................11 CPU Fan Connector............................23 DIMM Memory............................11 DIMM Slot Connector..........................23 Floppy Connector............................20 Front Panel Connector..........................21 Hub Lock/Unlock............................14...
