INSTALLATION INSTRUCTIONS KK-K9-FAN
OPTIONAL FAN FOR K-9 TRANSPORTATION SYSTEMS

HARDWARE:

QTY DESCRIPTION
1 95 CFM 12 Volt Boxer Fan
2 Grill guard
4 8-32 x ½" Phillips Machine Screw
4 8-32-x ¾"Phillips Machine Screw
8 8-32 Keps Nuts
1 Wire Kit

INSTALLATION:

1. Fan location to be determined by installer/customer.
2. The fan is designed to mount in many various locations. It can be simply mounted on the upper
perforated section or a hole can be cut out in the ceiling or lower wall.

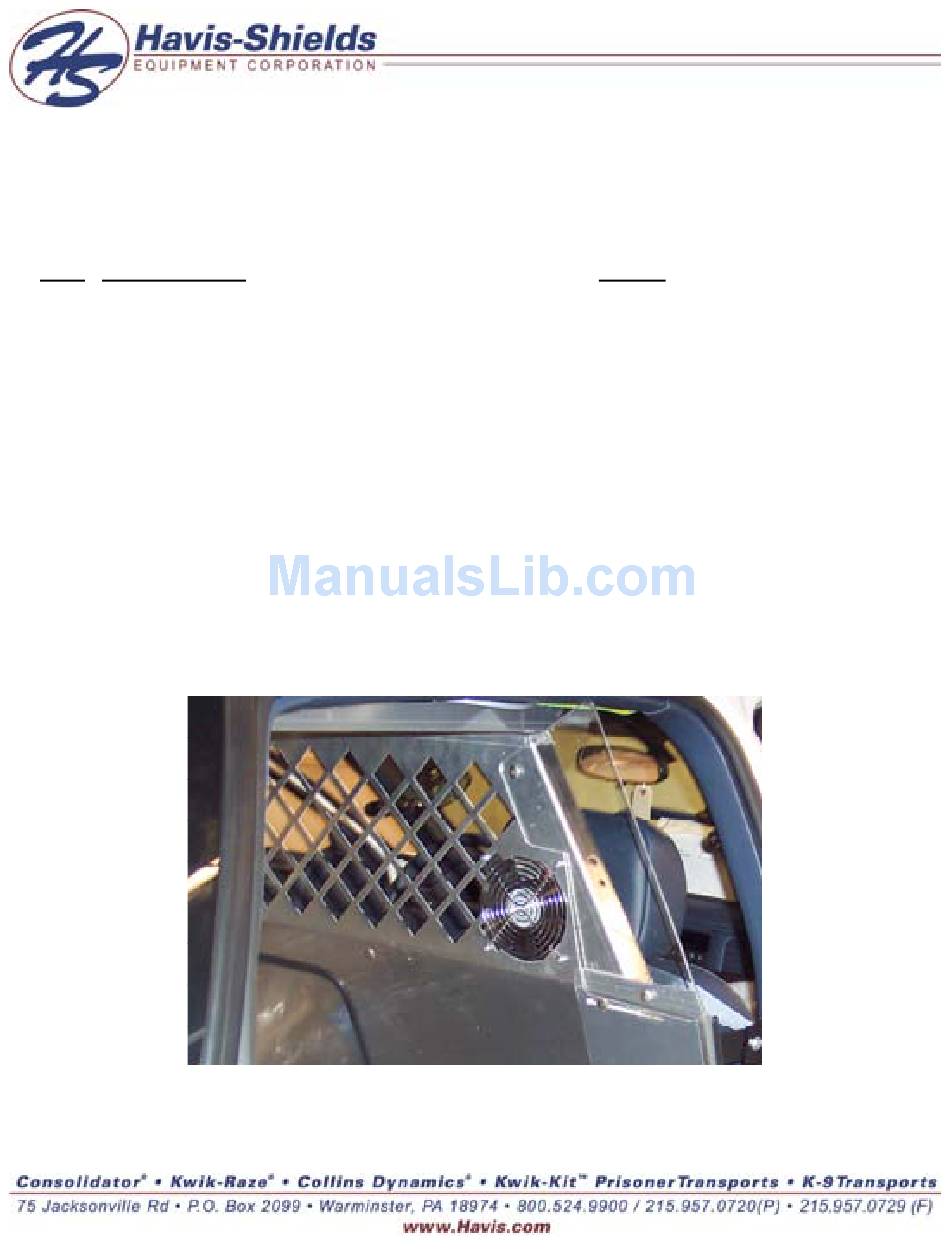

3. After location is determined, the fan and housing will go on the exterior side of the K9
compartment. Drill (4) 3/16" mounting holes and bolt assembly.
4. Wire to fan switch and 12 volt power source.
PART#
PRM97422
PRM97473
GSM33110
GSM33111
GSM30027
HS-WK-2
KK-K9-FAN-INST-4-05
