Summary of Contents for Business Audio Source Adapter 6500

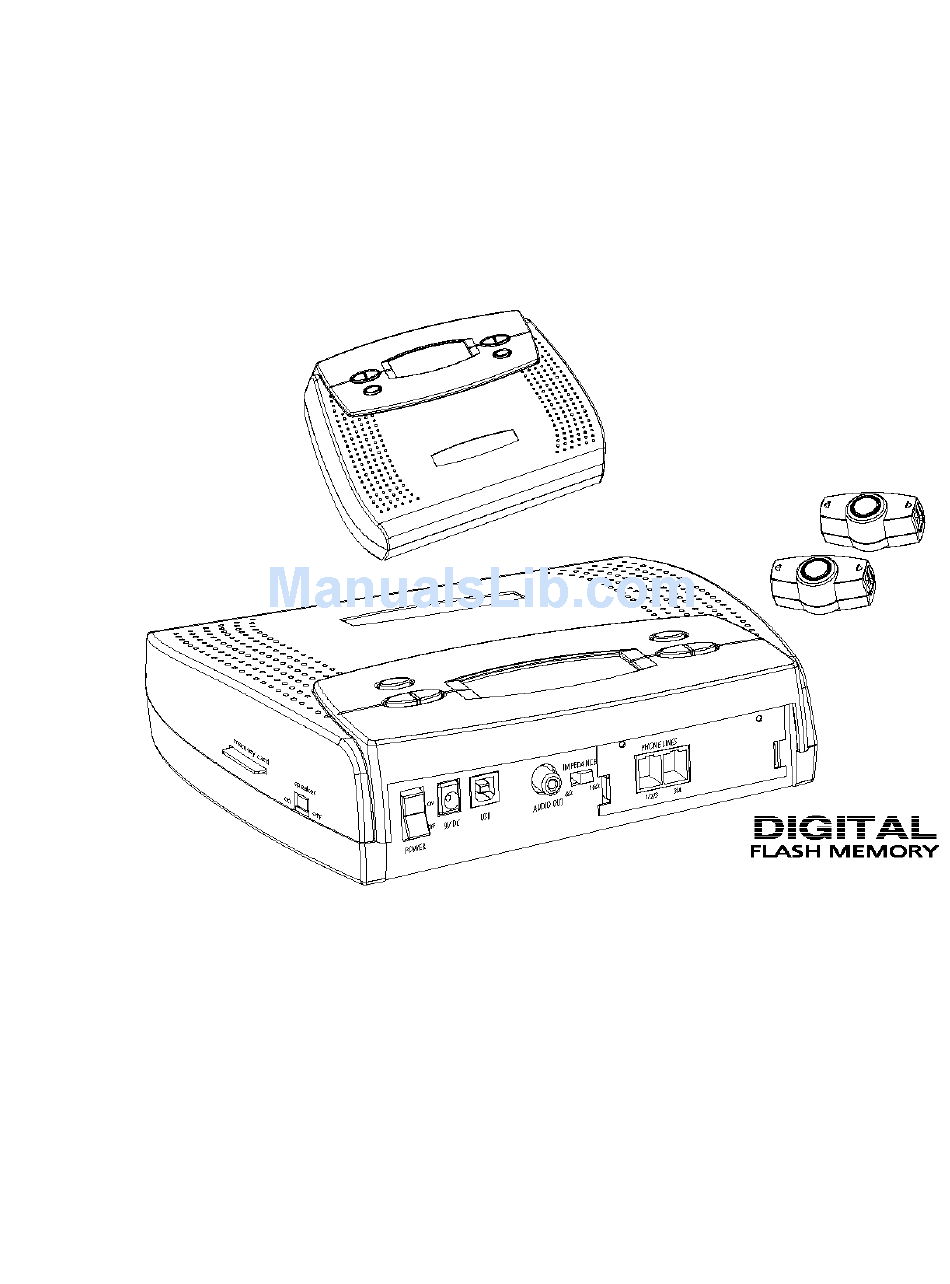

- Page 1 6500 Adapter Installation Manual & Users Guide Digital On-Hold Audio System with analog line capability...
-
Page 2: Supplied Accessories
Introduction The Adapter 6500 is a digital message on hold unit designed for analog and KSU-less Phones. This one device provides MOH capability for up to four lines and 50 station sets. Works with all types of phones. The Adapter 6500 is a non-proprietary unit. It plays standard .mp3 audio up to 320 kbps (CD quality.) Messages are loaded via USB cable to internal flash memory. -
Page 3: Player Set-Up
Player Set-up 1 - Connection to analog phone lines Combined Line Connection Lines 1 & 2 are combined in one wall jack and lines 3 & 4 are combined in another wall jack 1. Plug the supplied "T adapter" into any modular phone jack which services line 1 and 2. (This will allow you to share the phone jack with any phone extension which you have plugged in to the wall jack.) 2. - Page 4 Corded Phone Set-up Telephone Extension Hold Music Activators (TEHMA) For true "hold button activation" of on-hold audio, each phone extension requires a "hold music activator". Two activators have been included in your package. If you require additional activators for other phones, please contact us. Most phones without activators are able to engage the hold music feature by pressing the star key twice on the telephone keypad and then (optionally) immediately pressing the HOLD button on the phone.
- Page 5 Cordless Phone Set-up 2b – Cordless telephone connection Telephone Extension Hold Music Activators (TEHMA) For true "hold button activation" of on-hold audio, each cordless phone requires the use of a telephone headset (not included) in conjunction with a "hold music activator". Two hold music activators and headset adapter cables have been included in your package.
-
Page 6: Installing Drivers
Message Loading Set-up Connecting to PC IMPORTANT: Before connecting the USB cable from the PC to the unit, please make sure the power switch on the player is in the OFF position. 1. Plug USB cable (square socket) into the USB jack on the back panel of the player. 2. -
Page 7: Controls And Functions
Controls & Functions Player Controls LCD Display... -
Page 8: Operation
Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time. Playback After Power Loss If power to the unit is lost, the unit will resume playback as soon as power is reapplied. Playback Modes The player is set to the PLAY mode as a default. -
Page 9: Usb Connection
Operation (cont'd) USB Connection 1. Turn the POWER switch on the back of player to the OFF position. 2. Plug the USB cable into the USB port on the back of your player 3. Plug the other end of the cable into the USB port on your computer. 4. -
Page 10: Additional Information
Additional Information FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
