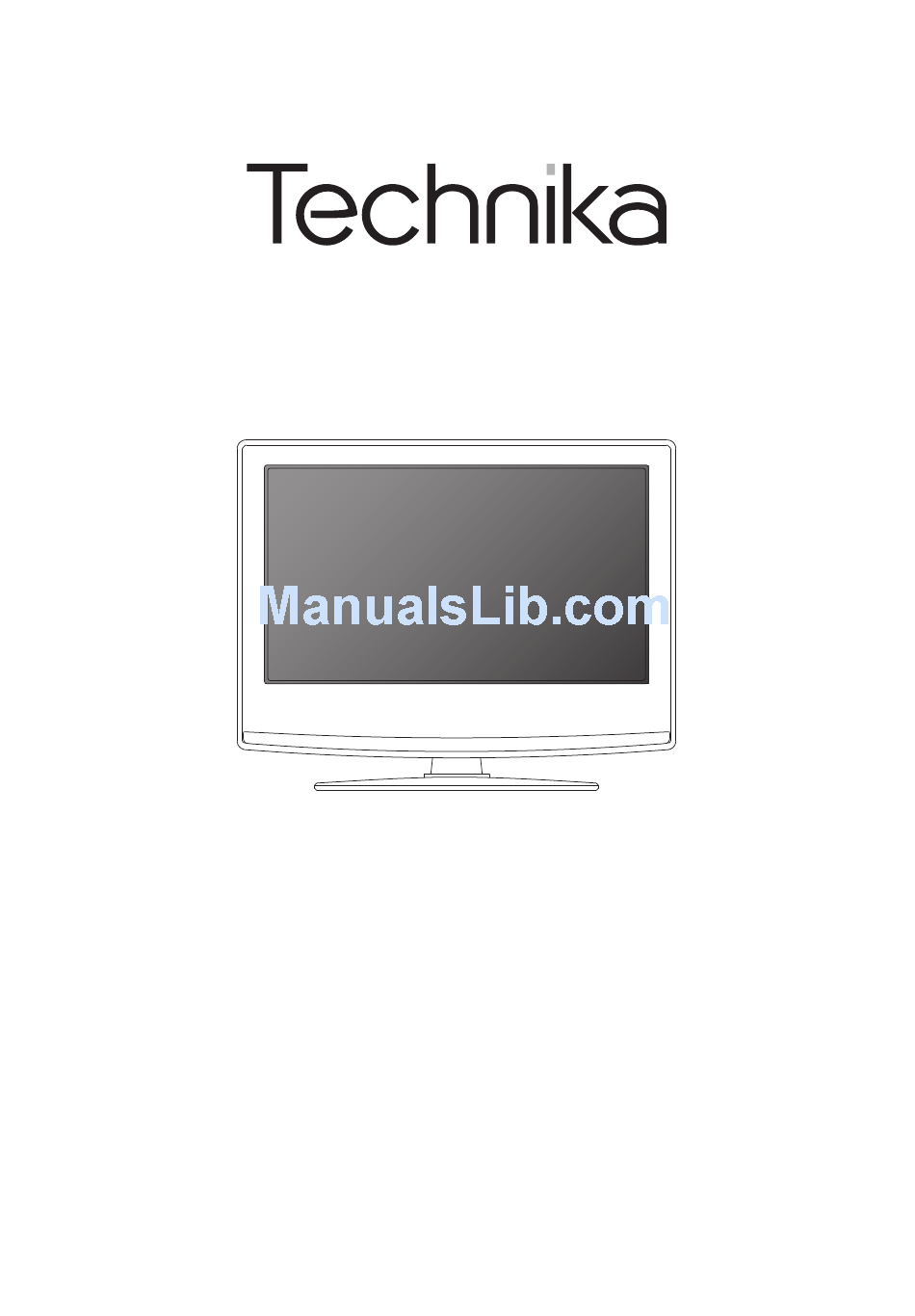

- Page 1 HD Ready LCD TV with Freeview, DVD & USB PVR User Guide Model No LCD19-240...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read these instructions. All the safety and operating instructions should be read before the appliance is operated. Warnings • To reduce the risk of fi re, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects fi... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read these instructions. All the safety and operating instructions should be read before the appliance is operated. Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays The extended use of fi xed image program material can cause a permanent “shadow image” on the LCD panel. -
Page 5: Table Of Contents
CONTENTS Manufacturers Guarantee Information ........3 Important Safety Instructions . -
Page 6: What Is Included In The Box
What is included in the box WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories: 1 x User Guide 1 x Remote Control User Guide 2 x AAA Batteries 1 x Quick Start Guide Quick Start Guide 1 x TV... -
Page 7: Attaching / Detaching The Stand And Wall Mounting
Attaching / detaching the stand and wall mounting ATTACHING/DETACHING THE STAND Attaching the Stand 1) Insert the TV into the stand at 45 degrees 2) Twist the TV into the CLOSE position until it clicks into place Detaching the Stand 1) To remove the base, press close and rotate 45 degrees. -
Page 9: Getting Started - Initial Set Up
Getting Started - Initial Set Up GETTING STARTED INITIAL SET UP 1) Using the RF cable supplied, connect the TV 2) Connect the power cable to the Electrical to the TV Aerial wall socket (Fig A) outlet (Fig B) Fig B Fig A 3) Switch on the television using the... -
Page 10: Tv Buttons And Source Menu
TV Buttons and Source Menu TV BUTTONS & SOURCE MENU STANDBY Displays the input source menu Displays Menu/OSD Programme/Channel down and menu down Programme/Channel up and menu up Volume down and menu left Volume up and menu right DVD – Play/Pause DVD - Eject Standby Power On/Off Choosing Mode Input/Source... -
Page 11: Remote Control
Remote Control REMOTE CONTROL STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa TV/RADIO - Switch to Freeview and switch between TV and radio in Freeview mode TV GUIDE - Opens the 7 Day TV Guide (Freeview mode) ATV - Switch to analogue TV source USB - Switch to USB source DVD - Switch to DVD source... -
Page 12: Connections
Connections CONNECTIONS HEADPHONES 3.5mm Headphone output RF IN RF / TV Aerial Input AUDIO IN (R/L) Component / Video audio input Component HD Component HD Input VIDEO Video input COAX Audio Out Digital Coax output CI CARD IN Common Interface Card Input SCART SCART input VGA(PC) Audio In... - Page 13 Connections CONNECTIONS Connecting a Camcorder, Camera or Games Console Source should be set to Video Camera or Camcorder Yellow Video White Audio In L/R Connecting a High Defi nition (HD) Device Option 1 - via HDMI to HDMI cable A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.
-
Page 14: Tv Menu Operation
TV Menu Operation PICTURE MENU To access this menu, press [MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. -
Page 15: Sound Menu
TV Menu Operation SOUND MENU To access this menu, press [MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. -
Page 16: Channel Menu
TV Menu Operation CHANNEL MENU To access this menu, press [MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. -
Page 17: Feature Menu
TV Menu Operation FEATURE MENU To access this menu, press [MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. -
Page 18: Setup Menu
TV Menu Operation SETUP MENU To access this menu, press [MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. -
Page 19: Dvd Menu
DVD Menu DVD MENU To access this menu, press [MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. TV System - Choose from the following options NTSC... -
Page 21: Pc Operation
PC Operation USING THE TELEVISION AS A COMPUTER MONITOR IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor. How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV) 1) Switch on your computer 2) When fi... -
Page 22: Pc Settings Menu
PC Operation PC SETUP MENU To access this menu, press [MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. -
Page 23: Usb Record
USB Record USB RECORD DIGITAL/FREEVIEW MODE USB RECORD – DIGITAL/FREEVIEW MODE Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB Hard drive. The benefi ts of this are as follows: •... -
Page 24: Usb Record / 7 Day Tv Guide
USB Record USB RECORD / 7 DAY TV GUIDE Record from 7 Day TV Guide TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days, set reminders and plan your recording 1) Press [TV GUIDE]. -
Page 25: Usb Mode / Media Player
USB Mode / Media Player USB MODE / MEDIA PLAYER Movie Music Photo Recorded Programmes USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the above menu screen will appear. The content will be divided into Movies, Music, Photos and Recorded Programmes based on fi... -
Page 26: General Information
General Information OPERATING THE TV WITH A UNIVERSAL OR SKY (BSKYB) REMOTE CONTROL Using a Universal Remote Control. You may wish to use a Universal Remote control to operate your Television. In order to do so, you will need to enter the ‘code’ below into your universal remote control, to do this, please follow the instructions included with the Universal remote control. -
Page 27: Frequently Asked Questions
General Information FREQUENTLY ASKED QUESTIONS General I would like to have louder There are 2 options: sound by connecting 1) Use Digital COAX output connected to an external amplifi er/surround additional speakers sound system 2) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi... -
Page 28: Technical Specifi Cations
General Information TECHNICAL SPECIFICATION Model LCD 19-240 X185/55E-GB-TCDUP4-UK Screen size (diagonal) 18.5"/ 55cm Resolution 1366 x 768 Contrast Ratio 1000:1 Brightness cd/m2 PC RGB 75 ohm Antenna / PAL-SECAM Video Inputs 1 x SCART, 1 x Video, 1 x Component (YPbPr - 1080i) Sound Inputs 1 x 3.5mm jack for PC audio input, 1 x pair RCA shared for Video &... -
Page 29: Index
