SoundGraph iMON MM User Manual

Imon & multi-median
Hide thumbs
Table of Contents

Advertisement

Quick Links

iMON & Multi-Median
Users Guide
SoundGraph, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMON MM and is the answer not in the manual?

Questions and answers

Summary of Contents for SoundGraph iMON MM

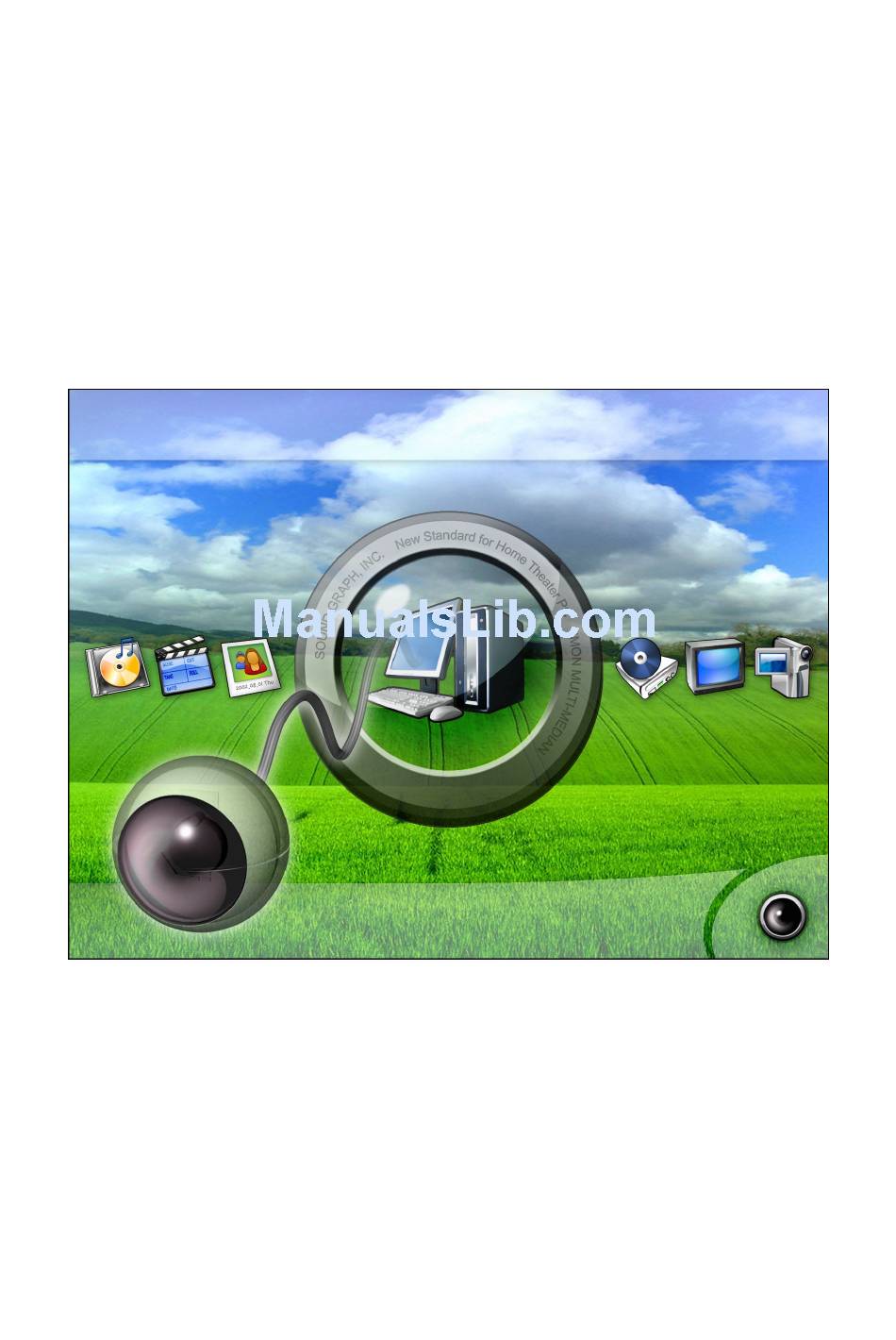

  • Page 1 & Multi-Median Users Guide SoundGraph, Inc.

  • Page 2: Table Of Contents

    1) S/W Installation 2) H/W (IR Receiver) Installation 3) Execute iMON Manager 2. Button Layout and its Feature of iMON Remote Controller 1) iMON MM Remote Controller 2) iMON RSC Remote Controller Multi-Median Users Guide 1. Screen Layout of ‘ Multi-Median’...
  • Page 3 5. Using Monitor Resolution Changer 6. Using Timer 7. Using Virtual Kyboard 8. Register New Remote Controller 9. Setting Program Command 10. Setting Windows Command 11. Setting Customized Windows Command 12. Setting Macro 13. Setting Option Update of iMON & Multi-Median SoundGraph, Inc.

  • Page 4: In Your Package

    Please check the components on the below in your box. 1. iMON MM In the Box : 1 iMON MM Remote Controller, 1 iMON Station (External IR Receiver), 1 Installation CD (iMON Manager, Multi-Median), 2 AAA Batteries, 1 Users Guide 2.

  • Page 5: S/W, H/W Installation And Remote Controller

    In the Box : 1 iMON RSC Remote Controller, 1 iMON Station inside (Interanl IR Receiver), 1 Installation CD (iMON Manager, Multi-Median), 2 AAA Batteries, 1 Users Guide S/W, H/W Installation and Remote Controller Please read this users guide before the installation of your iMON Station (IR Receiver).
  • Page 6 Internal iMON Station is connected to mainboard with two cables, PC case with one cable, Power Supply with one another cable. You should be careful to connect these four cables refer to your mainboard manual. The connectors that each cable needs to be connected are as like follows.

  • Page 7: Execute Imon Manager

    1. Stand-By Power Connection Cable A1 : (2pin, iMON Inside ‘ ST PWR1’ A2 : (2pin, Mainboard power extension cable) connector) 2. Mainboard Power Switch Connection Cable B1 : (2pin, iMON Inside ‘ M/B PWR’ B2 : (2pin, Mainboard power switch connector) connector) 3.

  • Page 8: Button Layout And Its Feature Of Imon Remote Controller

    Controller 1) iMON MM Remote Controller iMON MM (Multi-Median) remote controller is designed in order to use every functions of Multi- Median. The detail features of each button are as like follows. Power : This button is used to turn on or turn off the PC. You need to push this button more than 2 seconds in order to turn off the PC.
  • Page 9 Please refer to the Multi-Median Users Guide in order to learn about the button usage on the Multi-Median. Windows : This button brings the start menu and acts like the [Windows logo] key of the keyboard. Menu : This button brings the menu and acts like the [menu] key of the keyboard.
  • Page 10 Up, Down, Left, Right : These buttons are used as same like four way arrow keys of the keyboard. Enter : This button is used as same like [Enter] key of the keyboard. All Time Control Mode : This button used for the ‘ All Time Control Mode’ of the iMON Manager.
  • Page 11 Prev : This button is used to generate ‘ Previous’ command in the various media applications and also worked as ‘ Channel Up’ on the TV related applications. Next : This button is used to generate ‘ Next’ command in the various media applications and also worked as ‘...

  • Page 12: Imon Rsc Remote Controller

    Aspect Ratio : This button is used to generate ‘ Change the Aspect Ratio’ command in the various media applications. Menu : This button is used to generate ‘ DVD Menu’ command in the DVD applications. Caption : This button is used to generate ‘ Change the Caption/Subtitle’ command in the DVD applications.
  • Page 13 Power : This button is used to turn on or turn off the PC. You need to push this button more than 2 seconds in order to turn off the PC. The Power ON feature is supported on the internal type iMON Station model, iMON Inside, iMON Inside PLUS only.
  • Page 14 Max/Res : This button toggles ‘ maximize/restore’ the active window. ESC : This button is used as same like [ESC] key of the keyboard. Windows : This button brings the start menu and acts like the [Windows logo] key of the keyboard. Menu : This button brings the menu and acts like the [menu] key of the keyboard.
  • Page 15 Shift+Tab : This button is used as same like [Shift]+[TAB] key of the keyboard. Tab : This button is used as same like [TAB] key of the keyboard. Mouse/Keyboard : This button is used to toggle the ‘ Joystick’ operation mode of iMON RSC.
  • Page 16 Joystick knob like a button. MUTE : This button is used to mute the PC system volume. VOL - : This button is used to reduce the PC system volume. VOL + : This button is used to increase the PC system volume. Play : This button is used to generate ‘...
  • Page 17 Stop : This button is used to generate ‘ Stop’ command in the various media applications. Rew : This button is used to generate ‘ Rewind’ command in the various media applications F.Fwd : This button is used to generate ‘ Fast Foward’ command in the various media applications.

  • Page 18: Multi-Median Users Guide

    1. Screen Layout of Multi-Median 1) Main View Run the Multi-Median using the ‘ Multi-Median’ button of the iMON MM or iMON RSC remote controller, you could see the main view of Multi-Median as like below picture. The icons on the menu bar located on the upper side of the main view show the each devices and functions as like below.

  • Page 19: Hard Disk Drive

    ? Digital Camcoder : Multi-Median supports the DV Digital Camcoder which is connected through the IEEE1394 port of PC. You could control your camcoder using the iMON remote controller and record the video clips of the camcoder. Recording feature would be upgraded on the next update version.

  • Page 20: Media Folder View

    3) Media Folder View If you choose the type of media like ‘ My Music’ , ‘ My Movie’ , ‘ My Photo’ , the media folder view will be appeared. In the case of ‘ My Movie’ and ‘ My Photo’ , you could see the folders that contain the media files, you can group this folder view as folder.

  • Page 21: Media Preview

    If you enter to the ‘ Media File View’ from ‘ Media Folder View’ , you may see the following screen. There is a difference in the ‘ My Music View’ and the other views as like follows. You can enter to the ‘ Media Preview’ from ‘ Media File View’ after selecting the media file that you want.

  • Page 22: Full Screen View

    6) Full Screen View Full Screen View shows the current playing media file on the full screen. If you want to see the detail information about the current playing media file, you may go back to the media preview or call the control panel using the ‘ 0, panel’ button on the remote controller. 7) DVD View DVD View is similar to the Movie View.

  • Page 23: Using Remote Controller On Multi-Median

    2. Using Remote Controller on the Multi-Median Multi-Median could be controlled by iMON MM or iMON RSC remote controller. Especially, iMON MM supports the special features of Multi-Median, so you can have more control power on Multi-Median using iMON MM remote controller.
  • Page 24 the TV view. 9) Rew button ‘ Rew’ button is used to make ‘ rewind’ command. 10) F.FWD button ‘ F.FWD’ button is used to make ‘ fast forward’ command. 11) Stop button ‘ Stop’ button is used to make ‘ stop’ command. 12) Open button ‘...

  • Page 25: Using Mouse On Multi-Median

    22) Number 2 button (My Movie) ‘ Number 2’ button changes the current media to My Movie. 23) Number 3 button (My Photo) ‘ Number 3’ button changes the current media to My Photo. 24) Number 4 button (My DVD) ‘...

  • Page 26: Setting Environment

    4. Setting Environment Multi-Median is designed to change the settings using just remote controller. Please refer to the followings in order to learn more about the various settings of Multi-Median. 1) Back The ‘ Back’ menu on the list is used to go back to the previous step of the current setting. 2) Scan Media Multi-Median provides the powerful media database which scans the media files on your PC, and this media database helps you to select the media file you want without searching through...

  • Page 27: Photo

    and ‘ Hue’ setting. You can also change the ‘ Aspect Ratio’ , Size, Position, Sync, Font, Color, Bold, Outline and Shadow properties of the subtitle. Finally, you can remove the bookmark position that you made and change the repeat and shuffle settings. 5) Photo You can set many properties of the Photo View.
  • Page 28 -28-...

  • Page 29: Imon Users Guide

    iMON Users Guide 1. Using Application Launcher Let’ s start Application Launcher. While iMON Manger is running, press the remote controller button that is assigned for ‘ Run Application Launcher’ in Windows Command. The ‘ Application Launcher’ will start as shown in the below picture. ‘...

  • Page 30: Application Control

    1) Assign ‘ All Time Control Mode’ function to Remote Controller In the case of iMON MM, there is a ‘ All Time Control Mode’ button is located on the left side of the down arrow key. But there is no ‘ All Time Control Mode’ button on the iMON RSC. You need to assign the ‘...

  • Page 31: Using Monitor Resolution Changer

    ? All Time Control Mode ON : Use the application shown in the iMON icon as a ‘ All Time Control’ mode. You can use the Winamp as ‘ All Time Control’ mode in the above picture. If the Winamp automatically starts, if it does not running before.

  • Page 32: Using Virtual Kyboard

    the relative time to the current time. You can also use arrow keys to set the time. To register the timer, press the timer button on the remote controller and use up/down arrow button to select MODE/TIME/Hour/Minute, or use Left/Right arrow button to adjust the value of each item.

  • Page 33: Register New Remote Controller

    Controller’ window. If you use the iMON remote controller like iMON MM or iMON RSC, please use the remote controller name as ‘ iMON MM’ and ‘ iMON RSC’ only. You can use the remote controller of home appliance like TV, VTR in order to control the PC. You can also register several remote controllers to iMON Manager and use them.

  • Page 34: Setting Windows Command

    will be displayed to notice the IR signal assignment. 6) Confirmation If you finished the remote controller registration, please close the setup window, and confirm the remote control action on the selected application. Since iMON Manager compares the button signal from the remote controller with the currently active application command list to execute the corresponding function of the application.

  • Page 35: Setting Macro

    prepared to the ‘ Windows Command’ setting. The setting of ‘ Customized Windows Command’ is similar to that of ‘ Windows Command’ . 12. Setting Macro There is a restriction that you cannot register the keyboard shortcut which is composed of more than four keyboard keys combination.
  • Page 36 states of iMON indicator that shows you the several informations. Normal iMON Indicator Registered IR Signal is detected Not Registered IR Signal is detected Shows the System Volume Shows the System Volume Mute Shows the usage of iMON RSC Joystick as a Mouse Shows the usage of iMON RSC Joystick as a Keyboard 3) Adding Sound Effect This option is the function that let you know the IR signal reception from the iMON Station.

  • Page 37: Update Of Imon & Multi-Median

    Update of iMON & Multi-Median iMON and Multi-Median will be updated continuously through the iMON website, http://iMON.soundgraph.com/. If you have any difficulties to use iMON and Multi-Median or have any question to us, please visit our website, and post a message.

  • Page 38: Soundgraph, Inc

    2. The contents of this manual are subject to change without any prior notice for product function addition and performance enhancement. 3. iMON is the registered trademark for USB IR reception device of SoundGraph Co., Ltd. 4. Other mentioned software band names are registered trademarks of each owner.

This manual is also suitable for:

Imon insideImon mm plusImon inside plusImon mm 4Imon mm plus 4Imon inside 4
