Summary of Contents for Tevion 49180

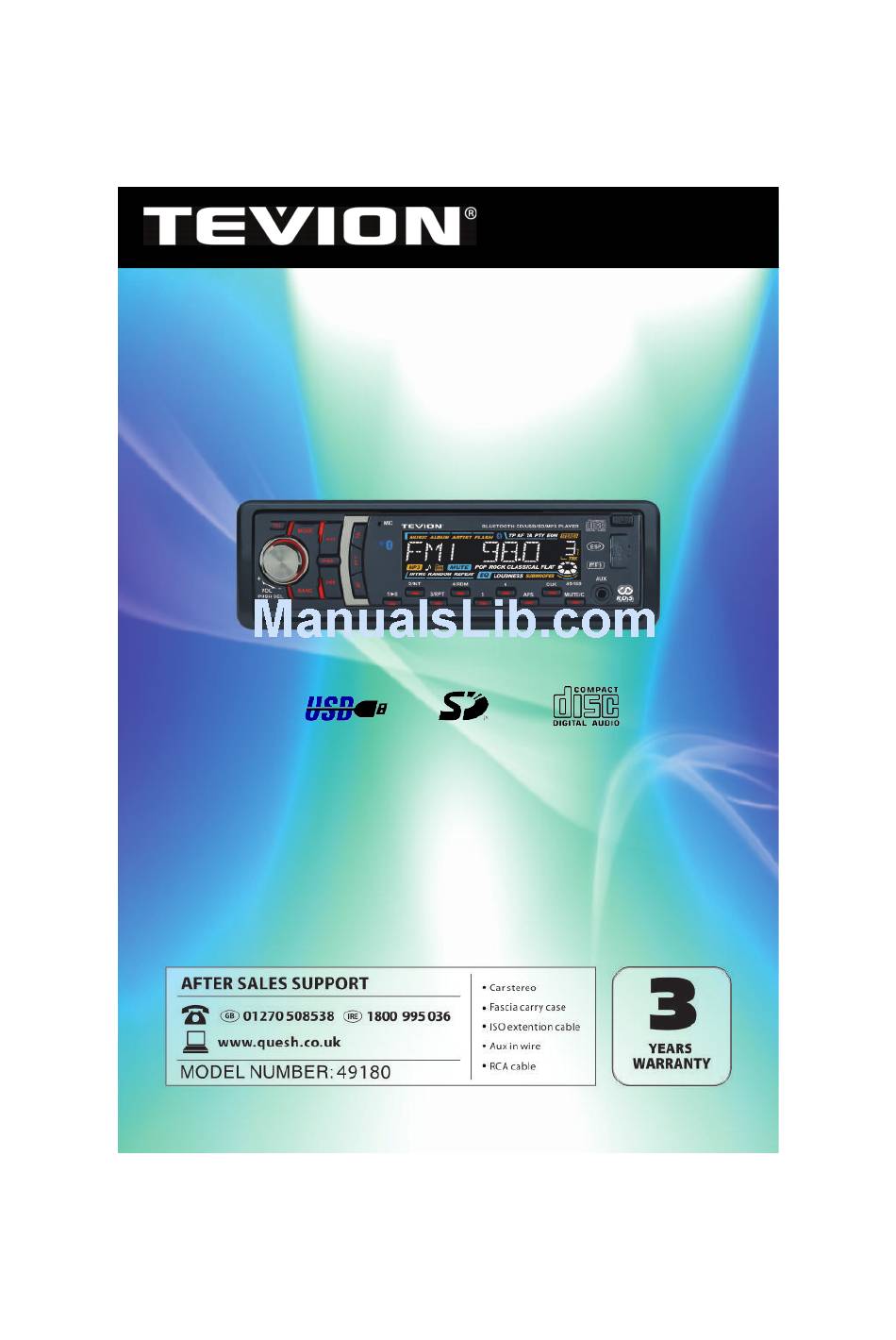

- Page 1 Car CD/MP3 Radio with Bluetooth with USB,SD and Front Aux input 49180 Now you have purchased a Tevion® product you can rest assured in the knowledge that as well as your 3 year parts and labour warranty you have the added...
-
Page 2: Table Of Contents
Contents Page Number Welcome Section……………………………………..3 Precautions…………………………………………..4 Before You Install……………………………………..5-6 Installation…………………………………………..7-8 Wiring Diagram………………………………………..9 Location of the Controls……………………………..10 Basic Operation……………………………………..11-15 Bluetooth Operation…………………………………..16 CD/MP3/USB/SD Operation………………………...…17 FAQ…………………………………………………….18 Technical Speci cation………………………………..19 Warranty……………………………………………….20 Fault Report Card………………………………..……21... -
Page 3: Welcome Section
You have made an excellent choice with the purchase of this quality Tevion® brand product. By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Aldi. -
Page 4: Precautions
Precautions • This unit will only play the following discs. • This unit does not play les that have Digital Rights Management (DRM). • If you have les that have Digital Rights Management (DRM) you should consult with the vendor that you purchased les from for instructions on proper use. Never allow children to play with electrical equipment Care of Discs Handle the disc by its edge to... -
Page 5: Before You Install
Before You Install IMPORTANT: Remove the two transport screws from the top of the unit before installation. Please remove the screws before installing the radio; Failure to do so will result in the CD deck rejecting the disc. Please refer to the illustration below: Notes on Installation • ... - Page 6 Before you Install Car audio equipment installations can be troublesome at times, even to the most experienced of installation technicians. If you are not con dent working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call our customer support number 01270 508538 and we will recommend tters in your area.
-
Page 7: Installation
Installation WARNING! Disconnect negative battery terminal from battery before starting installation. Consult the vehicle owners manual for proper instructions. Note 1: Mark the polarity of the existing speaker wires before disconnecting battery. Note 2: Remove the two transport screws from the top of the unit before installing. Din Front Mount 1. ... - Page 8 Installation Din Rear-Mount Installation using the screw holes on both sides of the unit 1. Screw holes on the side of the unit. 2. Screws. Use either truss screws (5x8mm) or ush surface screws (4x8mm), depending on the shape of the screw holes in the bracket. 3. ...
-
Page 9: Wiring Diagram
Wiring Connection Make sure that you have a good chassis ground. Good ground connections will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehicle's metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection. -
Page 10: Location Of The Controls
Location Of The Controls 1. OPEN button 15. CLK button 2. SEL button and VOL dial 16. TEL button 3. POWER button 17. AUX INPUT Jack 4. LCD 18. EJECT button 5&6. >>| and |<< button 19. CD slot 7. BAND button 20. ... -
Page 11: Basic Operation
Basic Operation 1. OPEN BUTTON Press the OPEN button to fold down the fascia panel. Then a disc can be inserted into the disc slot or ejected by pressing the EJECT button. After ipping down the fascia panel, push it towards the left, then pull the right side of the panel towards you to remove it from the main chassis. - Page 12 Basic Operation b2. PI SOUND/PI MUTE PI SOUND mode: When driving in built up areas you may experience different PI sounds which will be heard for less than a second. This is due to different PI codes being received from the same AF source (re ecting signals). PI MUTE mode: Rather than hearing different sounds the radio will mute for less than a second.
- Page 13 Basic Operation LCD DISPLAY 5,6. TUNE, SEEK and TRACK BUTTONS Press the >>| or |<< button brie y to manually tune up or down for the desired radio station frequency. Press and hold >>| or |<< to auto tune up or down. 7. ...
- Page 14 Basic Operation When AF mode is selected, the radio checks the signal strength of AF all the time. The interval of checking time of each AF depends on the signal strength of the current station, from a few minutes for strong signals to a few seconds for weaker stations.
- Page 15 Basic Operation 15. CLOCK BUTTON Press the CLK button brie y to display the time for 5 seconds on the display, it will then revert back to the previous display until the CLK button is pressed again. If you press and hold the CLK button until the real time ashes on the display, you can adjust the time by using the VOL dial and SEL button.
-
Page 16: Bluetooth Operation
Bluetooth Operation Pairing To pair your mobile phone with a Bluetooth device, simply activate the Bluetooth function on your mobile phone and search for devices. When the stereo has been found it should show as Car Kit, when you try to connect, it will ask for a password. -
Page 17: Cd/Mp3/Usb/Sd Operation
CD/MP3/USB/SD OPERATION SKIP UP/ DOWN BUTTONS Press the >>| button brie y to play next track. Press the |<< button brie y to play the previous track You can fast forward or rewind by pressing and holding these buttons. AP BUTTON When playing USB or SD devices you can select which song you want to play rather than skipping through each song. -
Page 18: Faq
FAQ’S If your problem is not listed, please call our customer support team. -
Page 19: Technical Specification
TECHNICAL SPECIFICATION GENERAL Power supply requirement............DC 12V Current consumption............10A MAX Maximum power output.......4 X 40W(Measured at 14.4V) Number of channels............2 STEREO Chassis dimensions........178[W] X 50[H] X 165[D] FM SECTION Frequency range..........87.5MHz -108MHz Usable sensitivity................3uV I.F Frequency...............10.7MHz AM SECTION Frequency range..........522KHz - 1620KHz I.F Frequency................450KHz Usable Sensitivity..............40dB...
