Summary of Contents for Super4ce 13696

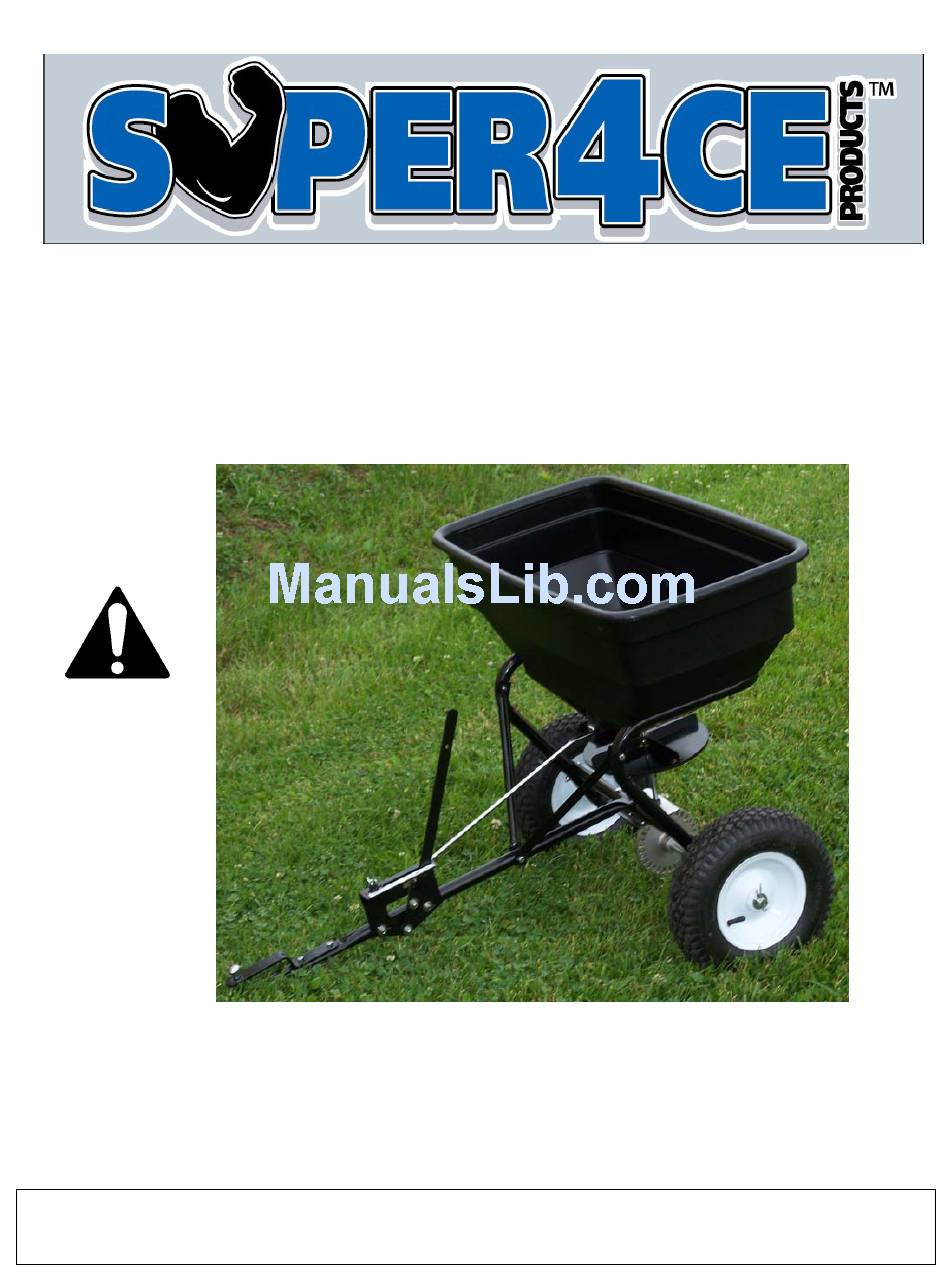

- Page 1 Tow-Behind Spreader 125 lb Capacity IMPORTANT Read and follow all Safety Precautions and Instructions Before Operating this Equipment. Owners Manual #13696 13828 Rev. 07-149...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Always wear safety glasses, a dust mask, and proper clothing to avoid contact with any chemicals or dangerous materials that are being applied by this spreader. Always remove any contents that are in the spreader’s hopper before attaching, detaching, or lifting the unit. Always refer to the load rating for the towing vehicle which should be located in the vehicle’s owners manual. -
Page 3: Carton Contents
Carton Contents PART NAME PART NAME Hopper Assembly Frame Wheel Hitch Tongue Ass'y Hopper Ass'y Hitch Brace NOTE: If you have questions, problems, or missing parts please call our customer service before returning to your retailer. Contact us at 1-651-330-2038, 8 a.m.-5 p.m., Monday-Friday CST. -
Page 4: Hardware Contents
Hardware Contents PART NAME PART NAME Hex Bolt M6×40 Big Washer Ø6 Hex Bolt M6×35 Flat Washer Ø8 Inside Hex Bolt M5×45 Flat Washer Ø16 Cotter Pin Ø5×35 Wheel Axle Sleeve Lock Nut M8 Inside Bushing Lock Nut M6 Hair Pin Ø3 Lock Nut M5... - Page 5 Assembly Instructions Step# 1: Attaching Tires/Wheel Assembly to Inside Bushing Axle. Tire/Wheel First, on the side of the axle that has the hole drilled Assembly closest to the tip, put the following parts on in the following order: •Inside Bushing (#18) •Axle Spacer (#50) Big Flat •Big Flat Washer(#16)
- Page 6 M6 x 40 STEP #3: Attach Hitch Tube Hex Bolt Assembly to the Frame Tube: Using 1 Hex Bolt M6 x 40 (#3), 1 Washer, and 1 M6 Lock Nut (#9) secure the hitch tube assembly to the frame tube by placing M6 Lock the end of the hitch tube on to of the frame nut and...
- Page 8 PARTS LIST Item Description Part # Qty. Item Description Part # Qty. Hopper 13784 28 Lock Nut M5 11994 Big Washer Ø6 13656 29 Rod Pin Ø4×30 13802 Hex Bolt M6×40 13667 30 Axle 13803 Bushing 13785 31 Frame Tube 13804 Fixed Guide Closure 13786...
- Page 9 FOLLOWING INORMATION AVAILABLE: 125# Tow Behind * PRODUCT – ________________ * SERIAL NUMBER - _______________ Spreader * MODEL NUMBER - _______________ #13696 TYPE - _______________ * PART NUMBER WITH PAINT CODE * PART DESCRIPTION TELEPHONE – 1-651-330-2038 SUPER4CE PRODUCTS PO BOX 50807 MENDOTA, MN.
