Double Cushioned Swing
Congratulations on your purchase of the Hatteras Hammocks® Double Cushioned Swing.
We believe that you will find it a product of unsurpassed quality and durability.
Hatteras Hammocks designed the Double Cushioned Swing to be
both beautiful and functional using only the highest quality materi-
als. It may be hung from a sturdy limb or beam (strong enough to
support at least 450 lbs.) or from one of the swing stands that we
offer. We hope you will enjoy years of pleasure and relaxation from
this swing.
The box contains:
1 - Double Swing Cushion
1 - Oak Top Stick (4 sided)
1 - Oak Bottom Stick (5 sided)
2 - Curved Oak Arms
2 - Chain and Ring Assemblies
2 - Tree Hooks
You also will need:
A 9/16" wrench
An electric drill (not necessary if you plan to hang your swing on a
swing stand).
Assembly Instructions:
NOTE: If you plan to hang your Double Cushioned Swing on
a swing stand, make sure your stand is assembled according
to its instructions before you begin assembling your swing.
1. Insert the top stick (4 sided) through the sleeve at the top
of the swing cushion back (the sleeve attached to the
smallest section of cushion). Next, slide the bottom (5-sided)
stick into the sleeve at the
bottom
front of the cushion (the sleeve attached to the
largest
sure the narrowest flat side of the

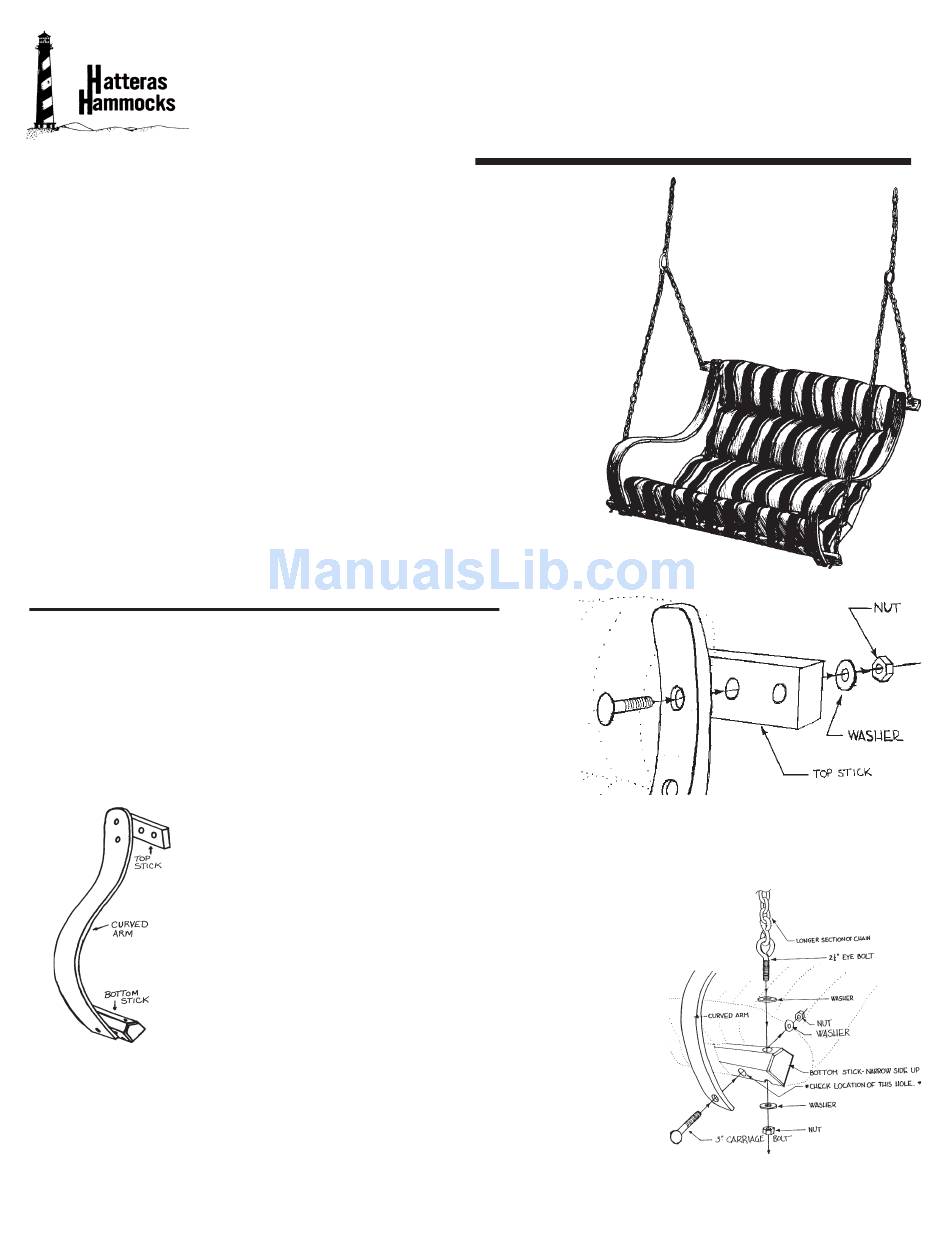

Fig. 1
bottom stick is facing up into the curve
of the arm. If this is inserted in the wrong
direction, completely remove the stick
and insert correctly. Incorrect insertion will
cause chafing and possibly tearing of the
fabric.
NOTE - If you plan to attach a canopy to
your swing at the time of swing assembly,
please refer to your Double Cushioned
Swing Canopy Instructions now. Follow the instructions for
the assembly of the canopy through step #6. Then, return
to this instruction sheet, skipping steps #2-#4, and picking
up the swing assembly instructions at step #5.
2. To connect the swing arms, position each arm with two
holes at the top. (See Fig. 1) Insert (from the front to back)
a 2 1/2" carriage bolt through the arm's top hole then
Hardware:
2 - 3" x 3/8" Carriage Bolts
2 - 2 1/2" x 3/8" Carriage Bolts
2 - 1 1/4" x 3/8" Carriage Bolts
10 - 3/8" Nuts
14 - 3/8" Washers
section of cushion). Make
If you have any questions regarding our products, call our
toll-free consumer customer service line:
Visit our web page: www.hatham.com
through the second hole from the end of the top
stick. (See Fig. 2) HAND TIGHTEN ONLY using a washer
and a nut.
3. To connect the other end
of the same arm to the
bottom stick, insert a 3"
carriage bolt, first
through
the
bottom hole of the
curved arm. (See
Fig.
3)
then
through
the
second hole from
the end of the
bottom stick.
4. Repeat steps 2
and 3 for
the other arm.
800.643.3522
Fig. 2
Fig. 3
5005 p.1
1.OD
