Summary of Contents for adapt Bluetooth speaker phone
- Page 1 Bluetooth speaker phone User’s Manual...
-
Page 2: Table Of Contents

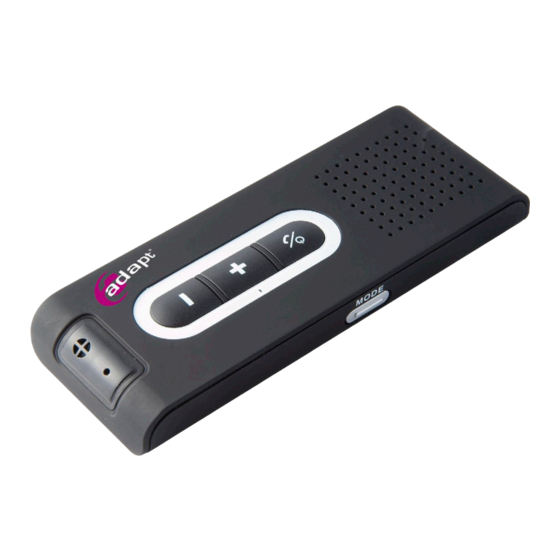

5. Turning On/Off the Speakerphone 6. Pairing 7. Connection/Link between Speakerphone and Mobile Handset 8. Disconnection between Speakerphone and Mobile Handset 9. Using the Speakerphone 10. Restore to Default-Remove Previous Pairing & Connection 11. LED Indication 12. Care and Maintenance 13. Trouble Shooting 14. Product Specifications 1. Getting to Know Your Bluetooth Speaker phone Charge Jack for Car Plug-in & Travel Charger(5-pin USB) Speaker Mode (Privacy Handset & Mute) Built-in Mic. Multi-Function Button (MFB) Volume Increase (V+) Volume Increase (V+) 1.1 How to Replace the Battery... -
Page 3: About Bluetooth Speaker Phone
2. About Bluetooth Speaker phone This versatile Bluetooth speakerphone is portable and specially designed for user to enjoy convenience and freedom of wireless communication. Dual capacity of use on desk-top like a Conference Speakerp- hone and in-car like a Hands-Free car kit. Unique Privacy Handset/Mute control button allows user to use this kit like a normal handset for private communication purpose. Advanced built-In Dual-Mic.(BEAM FOAMING) with D.S.P. solution for Echo Cancellation & Noise Suppression gives you impeccable full du- plex sound quality you’ve never dreamed of. 3. About Bluetooth Technology? Bluetooth wireless technology is set to revolutionize the personal connectivity by providing freedom from wired connections-enabling links and connectivity between mobile computers, mobile phones, portable handheld devices and other Bluetooth enables devices within 10 meters. Utilizing global sound & digital data 2.4G ISM transmission, it makes global communication in the way you’ve never dreamed of! 4. Getting Started To use your Bluetooth speakerphone, please follow these simple steps: (a) C harge your speakerphone. Prior to using the speakerphone, it is recommendable to charge the bat- tery fully for the first time. -
Page 4: Pairing
6. Pairing Prior to using the speakerphone for the first time, you must pair it with a Bluetooth-enabled mobile hand- set. The following steps describes pairing instruction for a typical Bluetooth-enabled mobile handset. (a) Place the speakerphone and mobile handset no more than 1 meter apart. (b) Ensure the speakerphone is under OFF mode. (c) Press and hold the MFB for 6 seconds until you hear a long beep. The LED will flash red and blue alternatively. It’s now ready for pairing. -
Page 5: 10. Restore To Default-Remove Previous Pairing & Connection
(d) Voice Dialing: I f your mobile handset is voice dialing enabled, under standby mode, press the MFB and when you hear a beep, say the voice tag. I mportant: Please make sure to record voice tag into the mobile handset before using voice dialing function. This function is only applicable to mobile handset with Bluetooth Hands-Free Profile. Be- cause of variation of different phone, some of the phones, you may not hear the beep. Please refer to your mobile handset user guide for additional information. (e) Last Number Re-Dialing: Under standby mode, short press MFB twice for last number redial. (f) Adjusting the Volume: D uring conversation is in progress, press the volume buttons repeatedly until you reach the desired volume level. (g) P rivacy Handset: D uring conversation is in progress, press the “MODE” button. Speaker and mic. volume will be decrease with LED flash blue and you may now use the speakerphone as a normal handset for pri- vacy purpose. -
Page 6: 12. Care And Maintenance
12. Care and Maintenance (a) Do not expose the speakerphone to liquid, moisture or humidity, as it is not waterproof. (b) Do not use abrasive cleaning solvents to clean the speakerphone. (c) Do not place the speakerphone in high temperature, as it will result in an explosion. (d) D o not expose the speakerphone to contact with sharp objects as this will cause scratching and da- mage. (e) Do not stick anything inside the speakerphone as this may damage internal components. (f) Do not attempt to disassemble the speakerphone, as it does not contain serviceable components. (g) I f you do not use the speakerphone for long periods, be sure to store it in a dry place, free from ex- treme temperature, humidity and dust. Safety Information: (a) C heck local laws regarding use of a mobile handset and speakerphone while driving. If you use the speakerphone while diving, ensure your attention and focus remains on your responsibility of driving safety. (b) Never allow children to play with the speakerphone. Small parts may be a choking hazard. (c) O bserve all signs that require an electrical device or RF radio product to be switched off in the desig- nated areas. These could include hospitals, blasting areas, and potentially explosive atmospheres. (d) T urn off your speakerphone prior to boarding an aircraft. Do not use your speakerphone in an air- craft. - Page 7 www.adapt-mobile.nl...
