Owner's Manual
Model Number:
TBC-430PF

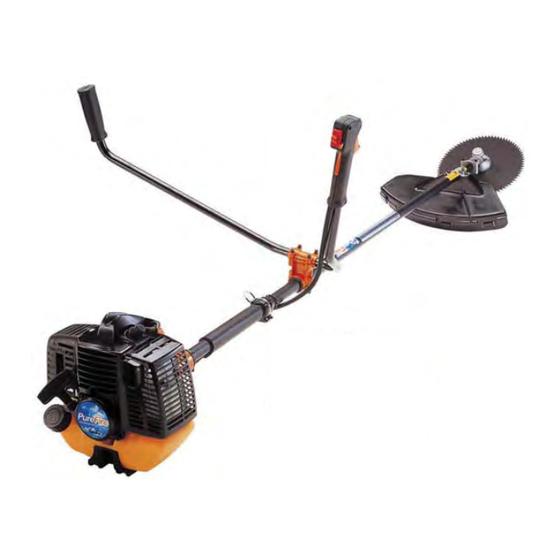

PROFESSIONAL BRUSHCUTTER
ISM, Inc. • 1028 4
www.tanaka-usa.com
Illustr
Illustr a a a a a ted P
Illustr
Illustr
Illustr
C.A.R.B. Tier II Certified!
Supplier To The Outdoor Power Equipment Industry
Street SW • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
th
ted P
ted P
ar
ar
ted P ar
ar ts Man
ted P
ar
ts Man
ts Man
ts Man ual
ts Man
P/N 28614
Rev 001
Date 7-09-08
custsvc@tanaka-ism.com
ual
ual
ual
ual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tanaka TBC-430PF
Summary of Contents for Tanaka TBC-430PF

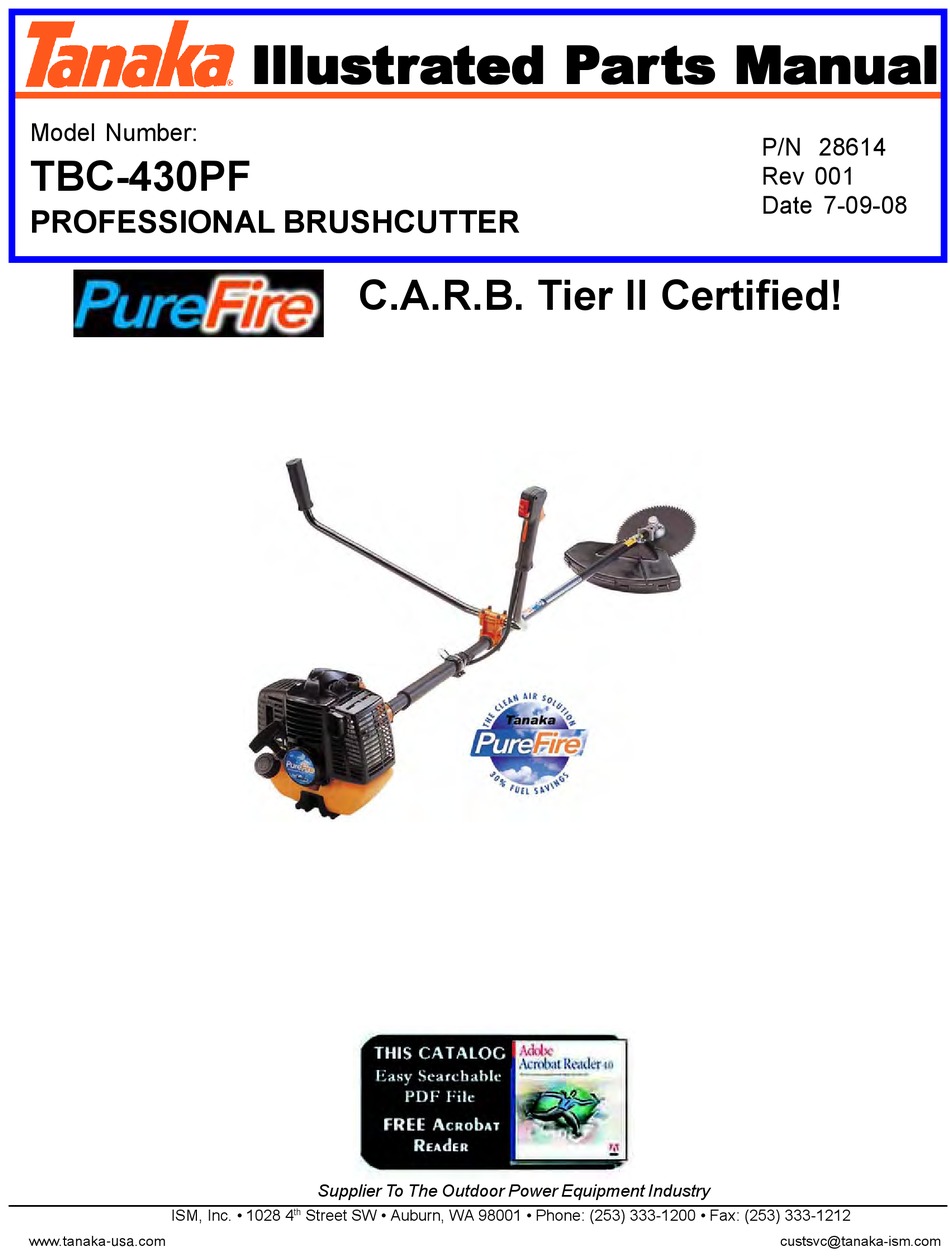

- Page 1 Man ual Illustr Illustr ted P ts Man Model Number: P/N 28614 TBC-430PF Rev 001 Date 7-09-08 PROFESSIONAL BRUSHCUTTER C.A.R.B. Tier II Certified! Supplier To The Outdoor Power Equipment Industry ISM, Inc. • 1028 4 Street SW • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212 www.tanaka-usa.com...
- Page 2 All data and specifications are subject to change without notice Dry Weight / lbs. (kg) w/head 18.5 (8.4) For more information, contact: ISM, Inc. • 1028 4th St. Sw, Suite B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212 • E-mail: custsvc@tanaka-ism.com...
- Page 3 TBC-430PF PARTS INFORMATION CYLINDER, PISTON, CRANKSHAFT, IGNITION • FIGURE 1 ITEM PART NUMBER DESCRIPTION COMMENTS 25504200200 COVER,SPARK PLUG,RUBBER 15711666900 CAP,SPARK PLUG ASS'Y 0181166021 PLUG,SPARK 1-11 0010440590 SET,CYLINDER 1-12 99461050204 BOLT,HEX,HOLE,5X20,S 1-14 0170440020 GASKET,CYLINDER 1-15 04104050200 RING,PISTON 1-16 0300440090 SET,PISTON 1-17...
- Page 4 TBC-430PF PARTS INFORMATION CRANKCASE, FLYWHEEL, FAN CASE, PAWLS • FIGURE 2 ITEM PART NUMBER DESCRIPTION COMMENTS 2570440020 PROTECTOR 99463050204 BOLT, HEX 5X20 2-19 7880162V20 PAWL,STARTER 2-20 99355050000 RING,STOP,5 2-23 99111100013 NUT,10 2-24 7900162V200 SPRING,PAWL,STARTER 2-25 7980422090 PAWL,STARTER ASS'Y 2-25 0720440090...
-
Page 5: Parts Information
TBC-430PF PARTS INFORMATION MUFFLER, ENGINE COVER, CLUTCH • FIGURE 3 ITEM PART NUMBER DESCRIPTION COMMENTS 7380440A21 PROTECTOR,MUFFLER 99461050124 BOLT,HEX,5X12S 99461050164 BOLT,HEX,5X16,S S/N ~U207704 99053060653 SCREW,HEX,6X65 99201060011 WASHER,6 7040440090 SET,MUFFLER Includes gasket (#14), not heat shield (#16) 99201050061 WASHER,5 3-10 7210440020... - Page 6 TBC-430PF PARTS INFORMATION FUEL SYSTEM • FIGURE 4 Page 4 custsvc@tanaka-ism.com www.tanaka-usa.com...
- Page 7 TBC-430PF PARTS INFORMATION FUEL SYSTEM • FIGURE 4 ITEM PART NUMBER DESCRIPTION COMMENTS 4-31 4030430020 GASKET,INLET MANIFOLD 4-32 4040430090 SET,CARB INSULATOR 4-33 4020430020 GASKET,CARBURETOR 4-34 4530637C200 COLLAR 4-35 4700138020 COLLAR,CLEANER 4-36 4230138082 BODY,CLEANER 4-37 5280138021 VALVE,CHOKE 4-38 47601700200 BOARD,BLOW OVER CHECK...
- Page 8 TBC-430PF PARTS INFORMATION RECOIL STARTER • FIGURE 5 ITEM PART NUMBER DESCRIPTION COMMENTS 7620422090 STARTER,RECOIL ASS'Y 7720422080 BODY,RECOIL STARTER 7690422020 REEL,STARTER ROPE 7790422020 SPRING,RECOIL 7830422020 ROPE,STARTER 5-12 8350422020 CAP,HANDLE 5-14 7850422020 HANDLE,STARTER 5-17 8390422020 SCREW,SET Page 6 custsvc@tanaka-ism.com www.tanaka-usa.com...
- Page 9 TBC-430PF PARTS INFORMATION CARBURETOR • FIGURE 6 ITEM PART NUMBER DESCRIPTION COMMENTS 4550440090 SET,CARBURETOR Includes gasket 51425100200 SCREW,THROTTLE SET 54425164200 STAY,ADJUST,CABLE 53925120200 SWIVEL 5492516520 WASHER,THRUST 48925100200 RING,STOP 61425137200 ADJUSTER,CABLE ~ Contained in Carb Repair Kit 6-10 55025100200 O-RING P/N 650-25124-900...
- Page 10 SCREW,TAPPING 4.5x16 ~W032374 99051050163 BOLT,HEX,5X16 W032375~ 5990430020 RUBBER,CUSHION 7-11 99053060203 BOLT,HEX,6X20 7-12 99054050253 BOLT,HEX 5x25 7-15-1 3600430020 HOLDER,PIPE ~W032374 7-15 3600430021 HOLDER,PIPE W032375~ 7-20 0960430020 COLLAR 6.3x18 ~W032374 7-26 99201050061 WASHER,5 W032375~ 7-28 3610099020 METAL FITTING W032375~ Page 9 www.tanaka-usa.com custsvc@tanaka-usa.com...
- Page 11 TBC-430PF PARTS INFORMATION THROTTLE LEVER, HANDLE, DRIVE SHAFT • FIGURE 8 Page 9 custsvc@tanaka-ism.com www.tanaka-usa.com...
- Page 12 TBC-430PF PARTS INFORMATION THROTTLE LEVER, HANDLE, DRIVE SHAFT • FIGURE 8 ITEM PART NUMBER DESCRIPTION COMMENTS 3433785020 SHAFT,DRIVE 3413810080 PIPE,DRIVE SHAFT 3473785090 BUSHING ASS'Y 8-42 33537307200 METAL,LIFTING 8-43 33437352210 COLLAR,LIFTING METAL 8-44 99462050304 BOLT,HEX HOLE 5x30.P 8-46 31537304200 NUT,SPECIAL 8-63...
- Page 13 TBC-430PF PARTS INFORMATION GEAR CASE, SAFETY GUARD • FIGURE 9 Page 11 custsvc@tanaka-ism.com www.tanaka-usa.com...
- Page 14 TBC-430PF PARTS INFORMATION GEAR CASE, SAFETY GUARD • FIGURE 9 ITEM PART NUMBER DESCRIPTION COMMENTS 9-1-1 3003713490 CASE,GEAR ASS'Y S/N ~U207704 3003758790 CASE,GEAR ASS'Y,(26mm) S/N U207705~ 99461050254 BOLT,HEX HOLE,5X25S 99351024002 RING,STOP,C-24,IN 99350009002 RING,STOP,C9 99961609002 BEARING,BALL,#609Z 99961609000 BEARING,BALL,#609 3003330B20 CASE,GEAR 9-11 99051050103 BOLT,HEX.HOLE,5X10...
- Page 15 TBC-430PF PARTS INFORMATION NYLON HEAD, TOOLS • FIGURE 10 ITEM PART NUMBER DESCRIPTION COMMENTS 10-0 7833384090 HEAD,BRAIN,(TH-97L) S/N ~U207704 10-0 7833384290 HEAD,BRAIN (TH-97LN) S/N U207705~ 10-1 7863384090 BODY,TH-97L,LN 10-2 7883367021 EYELET 10-4 7853384020 BASE,ADJUSTMENT TH97L 10-5 7933391020 SPRING,REEL,SILVER 10-6 79233004200...
- Page 16 TBC-430PF PARTS INFORMATION DECALS • FIGURE 11 ITEM PART NUMBER DESCRIPTION COMMENTS 11-1 9290440020 DECAL,SYMBOL(PF) 11-2 9064810120 DECAL,MODEL,TBC-430PF 11-5 95137503200 DECAL,PRO-FORCE B S/N ~U207704 11-7 9293810020 DECAL,SYMBOL,PF 11-10 9193738F20 DECAL,CAUTION,A 11-18 9233728620 DECAL,LEVEL 11-26 9233738F20 DECAL,LEVEL Page 14 custsvc@tanaka-ism.com www.tanaka-usa.com...
