Cooper Menvier Scantronic 9651 User Manual

Hardwired control unit
Hide thumbs Also See for Scantronic 9651:
Table of Contents

Advertisement

Quick Links

USER GUIDE
HARDWIRED
CONTROL UNIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scantronic 9651 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cooper Menvier Scantronic 9651

Summary of Contents for Cooper Menvier Scantronic 9651

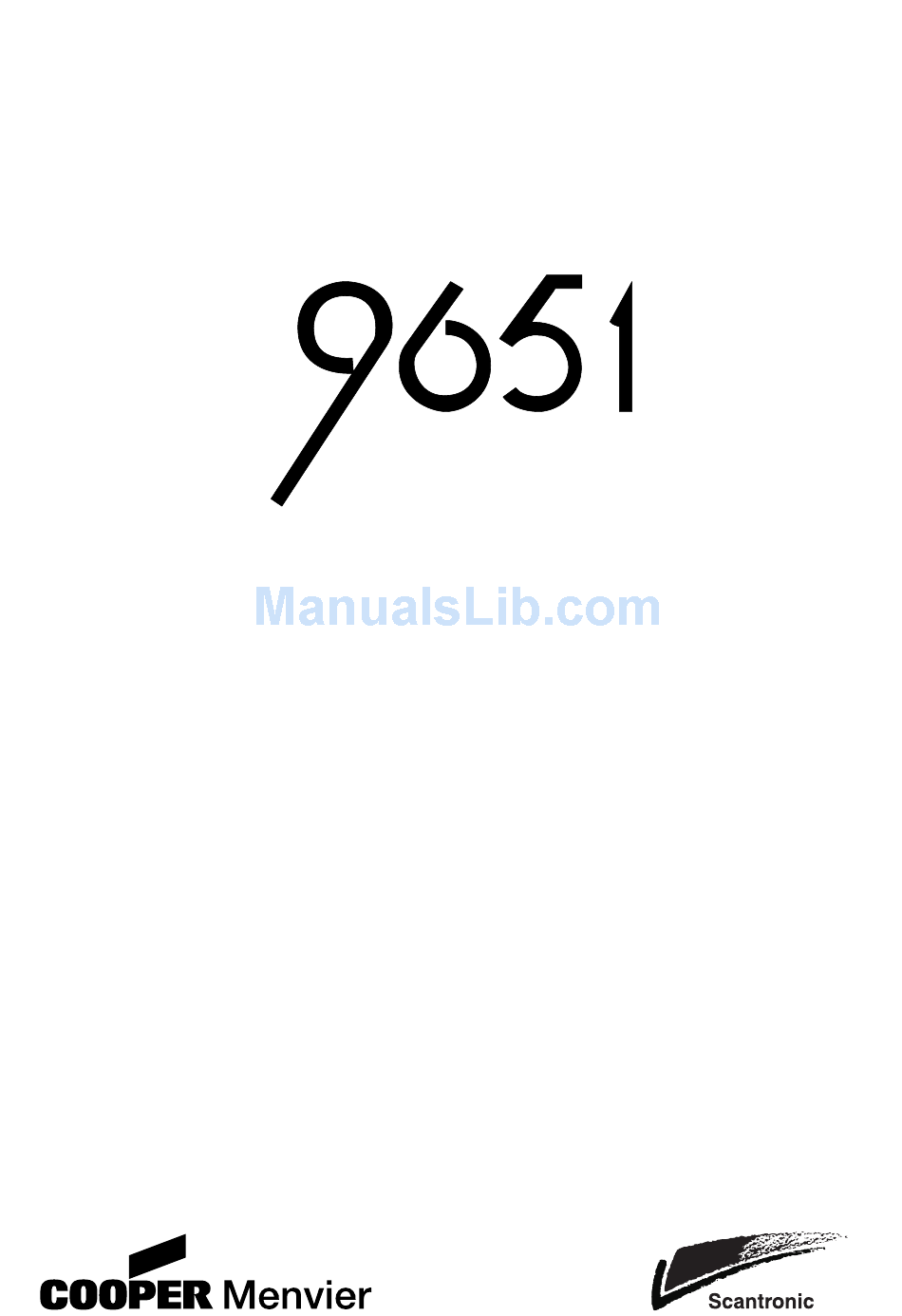

  • Page 1 USER GUIDE HARDWIRED CONTROL UNIT...

  • Page 2: Table Of Contents

    General Procedure......15 Your Installation ........32 Keyswitch Unset......15 9651 Hardwired Control Unit User Guide. This document applies to control panels using software version 4.x. © Cooper Security Ltd. 2005 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book.

  • Page 3: Introduction

    Alarm System The alarm system described in this book comprises a control unit (model 9651), one or more keypads, and various detectors. The control unit houses a main controller, power supply, stand-by battery and an optional communication device. It is normally fitted in a safe place out of sight (for example, under the stairs).

  • Page 4: Keypad

    1. Introduction Keypad Your alarm system is fitted with a 9930 or 9940 keypad, from which you can set and unset the system. Figures 1 and 2 show the main features of these keypads. Refer to "4. Special Functions" on page 18 for information about other functions available from them.
  • Page 5 1. Introduction These may show nothing until a user is identified. Sensitive area Alert lamp (see page 20) Service lamp Mains lamp Present Flashes to highlight Glows if the Glows when proximity tags unacknowledged alarm, system needs using mains by touching fault or tamper conditions.
  • Page 6 1. Introduction These may show nothing until a user is identified. Alert lamp (see page 20) Service lamp Mains lamp Flashes to highlight Glows if the Glows when unacknowledged alarm, system needs using mains fault or tamper conditions. an Installer power.

  • Page 7: Mains Power Failures

    1. Introduction Mains Power Failures The control unit indicates mains power failures using alerts. If the supply has since been restored, the alert will show the condition as inactive. For instructions on how to view and acknowledge alerts, refer to page 19. 497282 Page 7...

  • Page 8: About This Guide

    1. Introduction About this Guide The rest of this guide tells you how to use the system: 2. Everyday Operation Tells you how to set and unset the system. 3. After an Alarm Tells you how to switch off the sounders after an alarm, view what caused the alarm and reset the system so that it can be used again.

  • Page 9: Everyday Operation

    2. Everyday Operation During installation, your installer programs the system to create an exit route and entry route for your premises. When setting the system, you must follow the exit route. When unsetting the system, you must follow the entry route. If you stray from these routes, you may cause a false alarm.

  • Page 10: General Procedure

    2. Everyday Operation General Procedure To set the system: Secure all doors and windows. At the keypad, key in an access code (or present a tag). The display shows (for example): System OK Set? Press the appropriate level key. Note: If you press y without a level key, the system sets Level A (Full Set).

  • Page 11: Timed Set

    2. Everyday Operation Timed Set With Timed Set, the system sets after a programmed exit time has expired. The time starts when you press a level key, or when you press y to accept an omitted zone. Your installer will have made the exit time long enough for you to leave the premises and secure the final door When using Terminated Set (see below), your installer may have programmed the system to set after the exit time even if the exit terminate...

  • Page 12: Keyswitch Set

    2. Everyday Operation waiting for an exit time. The system gives a double "beep" to show that it is set. Note: Instant Set is not available for Level A (Full Set). Keyswitch Set If your system is fitted with a keyswitch, you can use it to set the system. If it is a three-position keyswitch in a single system, you can use it to set Level B.

  • Page 13: Investigating Setting Problems

    2. Everyday Operation Investigating Setting Problems This section offers general guidance. If you need assistance to resolve a problem, contact your installer. Detector Active If something is triggering a detector at the end of the exit procedure, the system will not set. Depending how your installer has set up the system internal or external sounders may operate.

  • Page 14: Other Problems

    2. Everyday Operation Other Problems The system informs you of problems through alerts. These are warnings communicated through the keypad display and lamps. If your system is set up to hide status information after 30 seconds , enter an access code or present a tag to activate the keypad display and lamps.

  • Page 15: Unsetting The System

    2. Everyday Operation Unsetting the System WARNING: If you enter your premises and an internal alarm starts, there may be an intruder. You can unset the system from a keypad or keyswitch. When you open an entry door, the system starts an entry timer. There are four entry timers so that different entrances can use different times.

  • Page 16: Aborting False Alarms

    2. Everyday Operation Aborting False Alarms If your system is connected to an ARC and you accidentally cause an alarm, you normally have at least two minutes before the ARC calls the police. Alarm Abort enables you to cancel a false alarm by entering a valid access code during this period (which is set by the ARC).

  • Page 17: After An Alarm

    3. After an Alarm Responding to a Fire Alarm IMPORTANT: The system gives a fire alarm by Fire Z02 Alarm sounding a two-tone warning from the keypads and 9x5x alarm sounder. The display shows (for example): Evacuate the premises. Do not attempt to unset the alarm. If there is evidence of fire, call the Fire Brigade.

  • Page 18: Special Functions

    4. Special Functions Introduction As well as setting and unsetting the system, you can perform a number of other functions from the keypad while the system is unset: All Users Description View alerts Access code (or tag) plus: Omit zones Require user code before installer code Read the log of system events Turn chime on and off...

  • Page 19: Viewing Alerts

    Appendix Viewing Alerts The system records alarms, faults and tampers as alerts. It usually displays the first alert automatically when you unset the system but you can view alerts at any time by pressing 1. Viewing an alert acknowledges it. The Alert lamp ( ) flashes for unacknowledged alerts and glows for acknowledged alerts.

  • Page 20: Omitting Zones

    Appendix Omitting Zones Your system may be programmed so that you can omit individual detectors. This enables you to ignore alarms coming from faulty detectors in non-critical positions. Refer to the table on page 32 to see which zones can be omitted in your system.

  • Page 21: Requiring User Code Before Installer Code

    Appendix Requiring User Code before Installer Code You can specify that a user code must be entered before the installer code to access the installer menu. This enables you to supervise installer activities. Key in an access code (or present a tag). Press 3 to toggle between requiring and not requiring a user code.

  • Page 22: Turning The Chime On And Off

    Appendix Turning the Chime On and Off Your system may be programmed so that a chime tone sounds when certain doors are opened while the system is unset. You can turn this on and off. Key in an access code (or present a tag). Press 7 to toggle chime on and off.

  • Page 23: Testing Zones

    Appendix Testing Zones You can set the system so that it will allow you to walk around and test each of the detectors (a walk test). Do this when the premises are empty to avoid other people triggering movement detectors before you do, which would confuse the results of the test.

  • Page 24: Access Codes

    Appendix When the system is delivered from the factory, all access codes are set to default values. Depending how your installer has set up the system , access codes may contain four or six digits. The default for the master user (U01) is "1234"...
  • Page 25 Appendix To delete an access code: Follow the procedure for setting an access code. In step 5, key in "0000". Changing User Names The system can store up to 12 characters for each user name, including spaces and punctuation marks. The default names are in the form User nn. You can change the name when you set the access code.

  • Page 26: Proximity Tags

    Appendix Proximity Tags Each normal user (Users 2 to 50) can have a tag, an access code or both. You cannot assign a tag to the master user (U01), the installer (U00), or the duress code (U51). You set up a tag in a similar way to an access code (see page 24). Instead of entering a new access code for the user, present the tag.

  • Page 27: Appendix. Log Messages

    Appendix Appendix. Log Messages Message Meaning Message Meaning AC Fail Mains power supply failed Frb I/F Tamp Rst Forbikobler interface tamper reset AC Restore Mains power supply restored Frb Lp Tamp Rst Forbikobler loop tamper reset Al Conf Dis K== Alarm confirmation disabled by lock switch Global T.Restore Global zone tamper alarm reset...
  • Page 28 Appendix Message Meaning Message Meaning System Tamp System tamper reset XT Fault Z== Rst Zone of type ‘Fault’ reset XT Fault Zone Zone of type ‘Fault’ active System Tamper System tamper Tamper F== Rstr Forbikobler keypad == tamper XT PwrFl Rst Power output fault reset in reset zone ==...
  • Page 29 NOTES Page 29 497282...
  • Page 30 Appendix NOTES Page 30 497282...
  • Page 31 Log Messages NOTES 497282 Page 31...

  • Page 32: Your Installation

    Your Installation Zone Description D Omit Chime Entry Allow Time Company Name Contact Number (Day) Control Unit Model Contact Number (Night) Exit Time Bell Duration Engineer Reset Dual Key Fire Medical Communicator Fitted Enabled? Meets DD243: 2004 Meets PD 6662 / prEN 50131-1: 2004 Note: If this table has not been completed, ask your Installer for the information.
