USER GUIDE

HARDWIRED CONTROL
PANELS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scantronic 9751 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooper Menvier Scantronic 9751

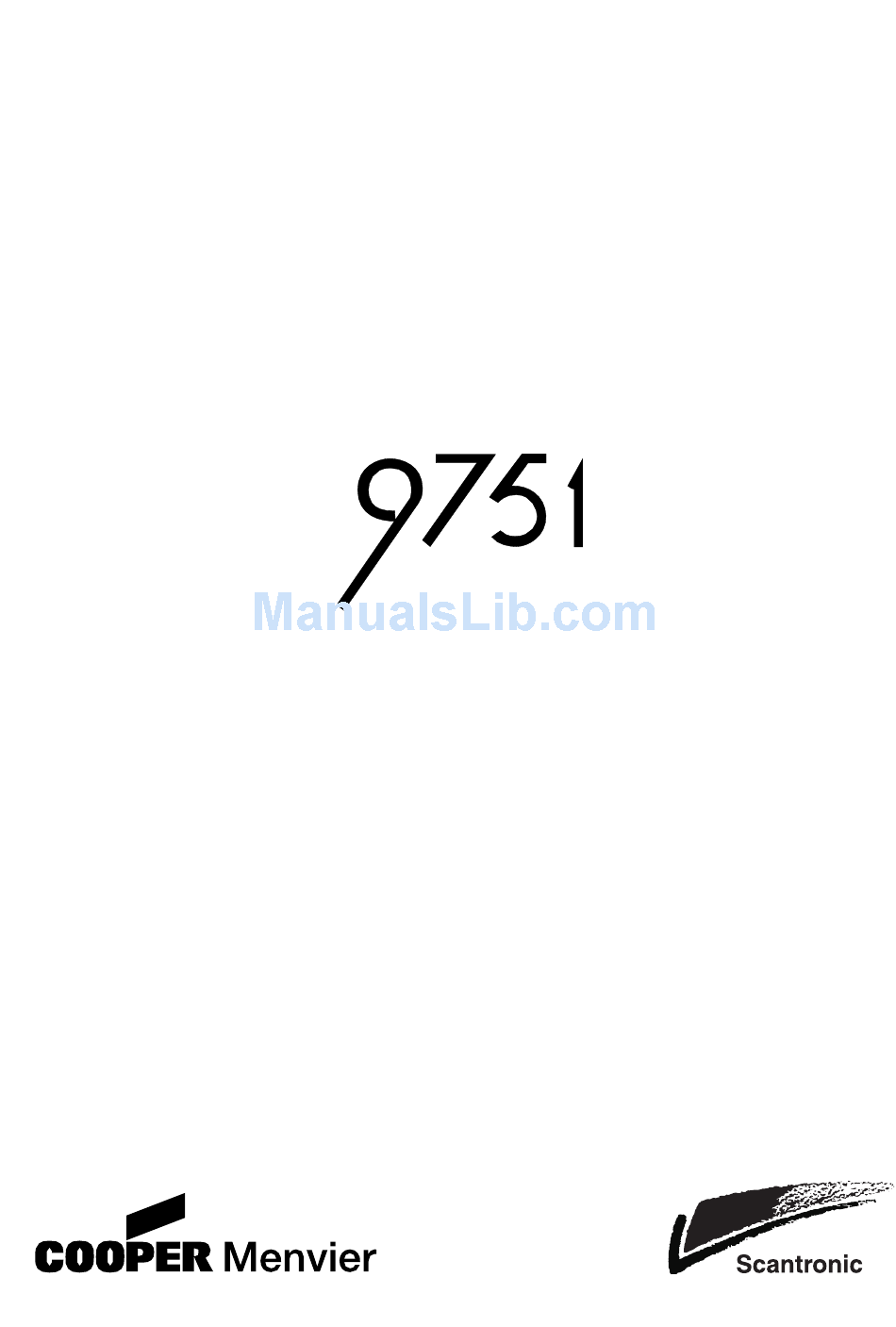

  • Page 1: User Guide

    USER GUIDE HARDWIRED CONTROL PANELS...
  • Page 2: Table Of Contents

    If You Exceed the Entry Time ..12 Starting Alarms Yourself ..... 12 Duress Code ........13 9751 Hardwired Control Panel User Guide. © Cooper Security Ltd. 2002 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book.
  • Page 3: Introduction

    1. Introduction The Alarm System The 9751 alarm system comprises a control unit, one or more keypads, and various detectors. The control unit is a box that houses the main controller, power supply, stand-by battery, and any remote communicator. The control unit is normally fitted out of sight in a safe place (for example under the stairs).
  • Page 4 1. Introduction 16 digit Liquid Crystal Display (LCD) Optional Power programmable panic alarm keys. Press keys 1 and 3 together Level setting keys Medical assistance keys. Press keys 4 and 6 together Fire alarm keys. Press keys 7 and 9 together Omit and Enter keys Figure 1.
  • Page 5: The 725R Telecommand (Remote Setting Device)

    1. Introduction Omit individual zones or act as an Escape key when entering com- mands. Enter programming and setting/unsetting commands. The 725r Telecommand (Remote Setting Device) If your alarm system has a 9955 radio expander connected to it then you will be able to use a 725r telecommand (also called a remote setting device).
  • Page 6: Everyday Operation

    2. Everyday Operation There are several different ways of setting the system. For all methods (except using a keyswitch or telecommand) you must enter your access code at the keypad. The keyswitch method uses a key in a special switch fitted to your premises.
  • Page 7: Exceeding The Exit Time

    2. Everyday Operation 2. Key in your access code at the keypad. 3. Press the appropriate Level key. Note: If you press at this point the system sets at Level A. The exit time starts when you press or the Level key.
  • Page 8: Using An Exit Terminate Button To Set The System

    2. Everyday Operation The keypad starts the continuous exit tone. 4. Leave via the designated exit Exit Tone route and close the final door. The system sets seven seconds after you close the door and gives a double "beep". The keypad display shows "beep beep"...
  • Page 9: Instant Set

    2. Everyday Operation To part set: 1. Close doors and windows in the protected area. 2. Key in your access code at the keypad. 3. Press B (or C). The keypad starts the quiet Part Set exit tone (see "Instant Set"). Part Set Exit Tone Note: Some Levels on your system may be programmed for Silent Set.
  • Page 10: Setting From A 725R

    2. Everyday Operation Setting From a 725r If your system is fitted with a radio expander and your installer has enabled the appropriate option, you can use a 725r telecommand to set the system. To full set the system: 1. Close all doors and windows. 2.
  • Page 11: What To Do When And Glow

    2. Everyday Operation 1. Press The keypad display shows: 2. Carry on and set the system as normal. If you still cannot set the system then call the Installer. What To Do When Glow If you hear an intermittent tone from the keypad, and both the lamps glow then your system may have experienced a temporary communi- cation fault.
  • Page 12: Unsetting From A 725R (Full Or Part Set)

    2. Everyday Operation get to the keypad and unset the system. The entry time starts when you open the designated entry door. During the entry time the keypads give a "galloping" entry tone to warn you that the timer is running. 1.
  • Page 13: Duress Code

    2. Everyday Operation To start a Panic Alarm: On a keypad press 1 & 3 together. Or, on a 725r press together. To start a Medical Assistance Alarm: On a keypad press 4 & 6 together. To start a Fire Alarm: On a keypad press 7 &...
  • Page 14: After An Alarm

    3. After an Alarm When your system raises an alarm you must disarm it in order to switch off the sounders and strobes. The system keeps a record of which zone(s) triggered the alarms, and shows the zone number(s) on the keypad display. Once you have disarmed the system, you must reset the system before you can start using it again.
  • Page 15: Customer Reset

    3. After an Alarm • If the lamp glows after an alarm and your system is connected to an ARC then your system may use Remote Reset. Your alarm company will give you instructions over the phone and a special code so that you can reset the system from the keypad.
  • Page 16: Special Functions

    4. Special Functions Introduction You can perform a number of other functions from the keypad, apart from setting and unsetting the system. These functions are: [Access code] + A (B or C) + Omit zone while setting. [Access code] + Omitting 24 hour zones.
  • Page 17: Omitting 24 Hour Detector Zones

    4. Special Functions The system carries on to set as normal. The system will not raise an alarm if the omitted zone is triggered. Note: The next time you set the system the zone will operate as normal; omission only lasts for one setting/unsetting cycle. Omitting 24 Hour Detector Zones If your system is fitted with 24 Hour Detector Zones, you may be able to omit them if necessary.
  • Page 18: Duress Code

    016). However, the default access codes for these users cannot set or unset the system, or use any of its special functions. Note: 9751 systems can use four- or six- digit access codes, ask your Installer for more information. Duress Code If your system is connected to an ARC, you may want to give some of the users a Duress Code as well as their normal access code.
  • Page 19: Using The Log

    4. Special Functions edly until the display shows the letter you want. You may already be familiar with typing out short messages on a mobile phone using the same sort of system. Figure 4 shows which letters are assigned to each key. Press C to move the cursor to the next space for a new letter.
  • Page 20: Table 1. Log Event Codes

    4. Special Functions 3. Press to toggle the display between the time and date of the event and the log report. Press 1 to see earlier events in the log. Press 3 to see more recent events. 4. Press to stop using the log. Table 1.
  • Page 21: Setting The Time And Date

    4. Special Functions Tel Line Fault Communications (telephone line) fault detected. Tel Line Rstr Communications restored. Comms Fail The communicator failed to report. AC Fail Mains failed. AC Restore Mains restored. Low Battery Standby battery is low. Low Batt Rstr Standby battery restored.
  • Page 22: Turning The Chime On/Off

    4. Special Functions 6. Key in two digits for the hour followed by . (Use the 24 hour clock.) 7. Key in two digits for the minutes, followed by The display shows the new time and date: Turning the Chime On/Off Your system may be programmed so that a chime tone sounds whenever certain doors are opened while the system is unset.
  • Page 23: Starting A Call Out To

    4. Special Functions As you trigger a detector the keypad and internal sounder give a short tone. The display shows the zone number of any detector(s) "beep" that you have triggered. If there is more than one detector triggered then the display show the number of each detector in turn.
  • Page 24 WHOLE PART PART OMIT ZONE DESCRIPTION SYSTEM CHIME ALLOWED Bell Duration Engineer reset Day contact Tel: Communicator Fitted Exit Time Night contact Tel: Entry Time Keypad PA Company Name 496661 Issue 1...
