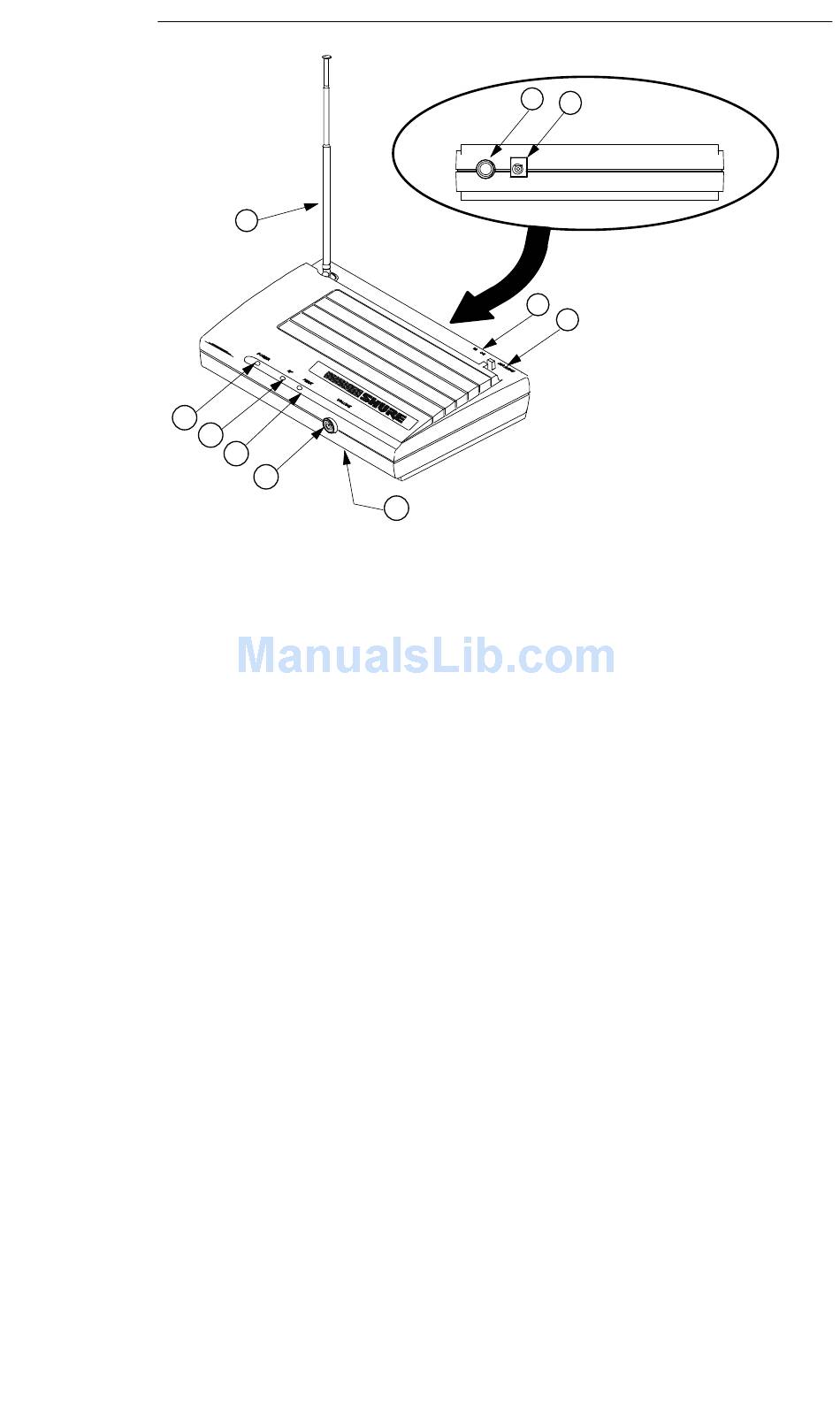

T3 RECEIVER FEATURES (FIGURE 4)
1. T3 RECEIVER: Audio Output Connector: Connect an output cable between
this connector and the input of your mixer or amplifier.
2. Power Input Connector: Connect the ac adapter to this connector and then plug
into an ac electrical outlet.
3. Telescoping Antenna: Receives signals from the transmitter. Make sure the an-
tenna is fully extended vertically.
4. Power On Indicator: This green light glows when the receiver is plugged into an
electrical outlet.
5. RF Signal Indicator: This yellow light glows when RF (radio frequency)
signals are received from the transmitter.
6. Audio Peak Indicator: This red light flickers when the audio signal
approaches the overload clipping level.
7. Volume Control: Rotate this knob to increase or decrease the volume of the re-
ceiver output. This control does not affect the PEAK indicator. It is affected by the
transmitter gain control setting and the loudness of the guitar or bass.
8. Squelch Control: This control, located on the bottom panel, is factory pre-set,
and normally does not need further adjustment. Refer to the Receiver Squelch
Adjustment section for more information.
3
6
7
FIGURE 4
