Data Sheet
Cisco UCS B460 M4 Blade Server
Product Overview
®
®
®
The new Cisco UCS
B460 M4 Blade Server uses the power of the latest Intel
Xeon
processor E7 v2 product
™
family to add new levels of performance and capabilities to the innovative Cisco Unified Computing System
(Cisco UCS). Cisco UCS (Figure 1) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with
networking and storage access resources into a single converged system that greatly simplifies server
management and delivers greater cost efficiency and agility. It also offers advances in fabric-centric computing,
open APIs, and application-centric management, and uses service profiles to automate all aspects of server
deployment and provisioning.
The Cisco UCS B460 M4 (Figure 2) is the flagship of the Cisco UCS B-Series Blade Servers products, which
address compute- and memory-intensive enterprise-critical workloads. This blade server has the computational
horsepower and memory capacity to satisfy the requirements of the most demanding enterprise-critical applications
such as business intelligence, large-scale databases, in-memory analytics, as well as RISC migration.

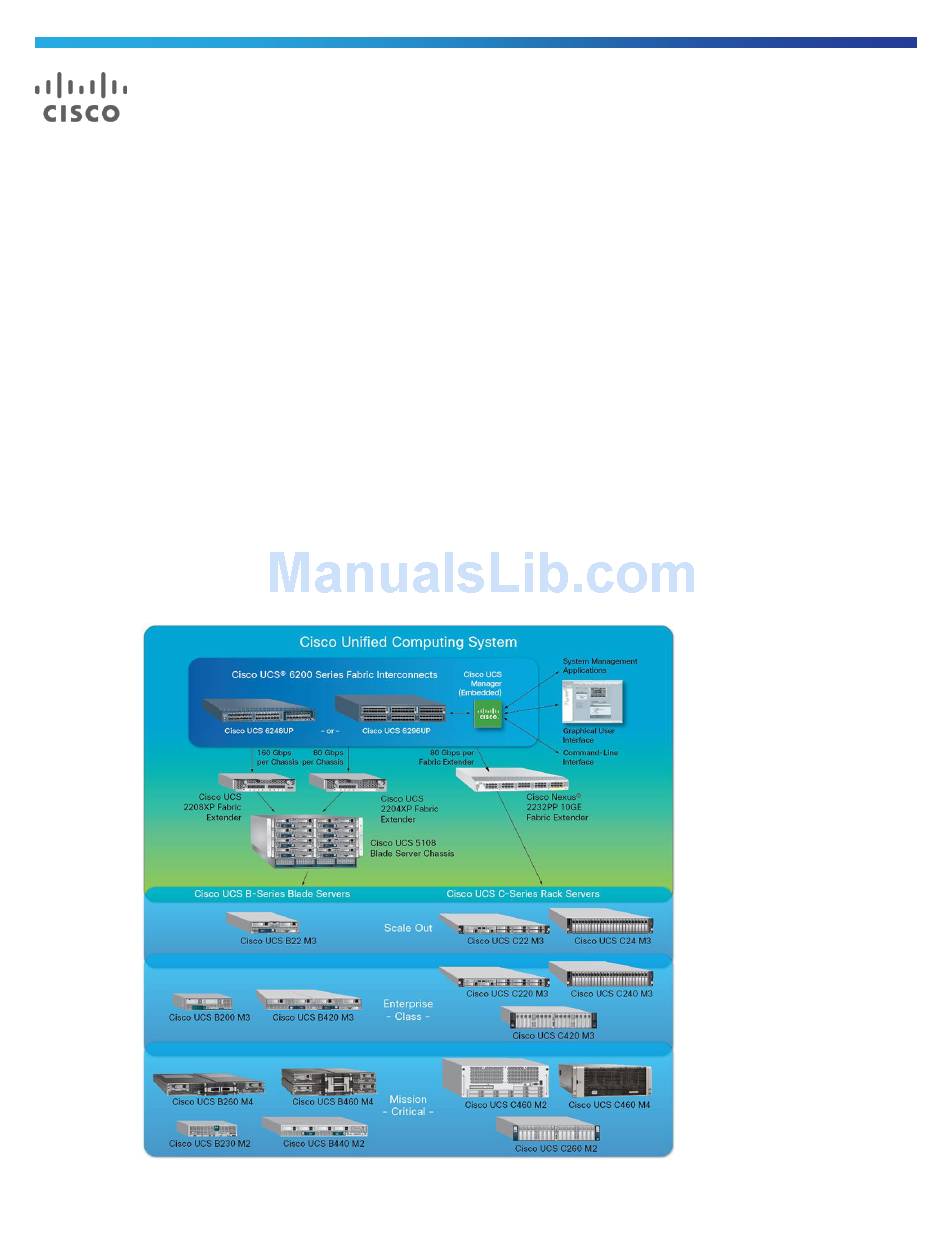

Figure 1.
Overview of Cisco UCS
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 1 of 7

Advertisement

loading

Related Manuals for Cisco UCS B460 M4

Summary of Contents for Cisco UCS B460 M4

  • Page 1 APIs, and application-centric management, and uses service profiles to automate all aspects of server deployment and provisioning. The Cisco UCS B460 M4 (Figure 2) is the flagship of the Cisco UCS B-Series Blade Servers products, which address compute- and memory-intensive enterprise-critical workloads. This blade server has the computational horsepower and memory capacity to satisfy the requirements of the most demanding enterprise-critical applications such as business intelligence, large-scale databases, in-memory analytics, as well as RISC migration.
  • Page 2 The Cisco UCS VIC 1240 is a 4-port 10-Gbps Ethernet or Fibre Channel over Ethernet (FCoE)-capable mLOM designed exclusively for the M3 and M4 generations of the Cisco UCS B-Series Blade Servers. When used in combination with an optional port expander, the Cisco UCS VIC 1240 can be expanded to up to eight 10-Gbps ports.
  • Page 3 Cisco UCS that extends its exceptional simplicity, agility, and efficiency. New innovations like the Cisco UCS B460 M4 Blade Server bring greater levels of industry-leading performance and memory locality from IT infrastructure to enterprise applications. In addition, Cisco UCS is a solution beyond individual rack or blades servers that conveys enormous benefits to customers (Table 1).

  • Page 4: Features And Benefits

    ● Cisco UCS VIC 1240 is a four-port 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)-capable adapter. Cisco VIC adapter ● When used in combination with its port expander card, the Cisco UCS VIC 1240 can be expanded to eight ports of 10 Gigabit Ethernet support.

  • Page 5: Specifications

    ● Up to 6 TB (using 64GB DIMMs) in the Cisco UCS B460 M4 blade server allows faster access to more data, resulting in quicker answers from today’s most demanding applications Keep data local with up to 1.5 TB of memory per socket to easily manage data-demanding, transaction-intensive workloads.

  • Page 6: Warranty Information

    Cisco Unified Computing Services Using a unified view of data center resources, Cisco and our industry-leading partners deliver services that accelerate your transition to a unified computing environment. Cisco Unified Computing Services helps you quickly deploy your data center resources and optimize ongoing operations to better meet your business needs. For more information about these and other Cisco Data Center Services offerings, visit http://www.cisco.com/go/dcservices.
  • Page 7 Printed in USA C78-730960-00 02/14 © 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 7 of 7...
