- Page 1 Q-Series Q-Amp – Q-DI – Q-Pre Operating Manual August 2012...
-
Page 2: Detailed Safety Instructions
SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to rain or moisture. -
Page 3: Installation

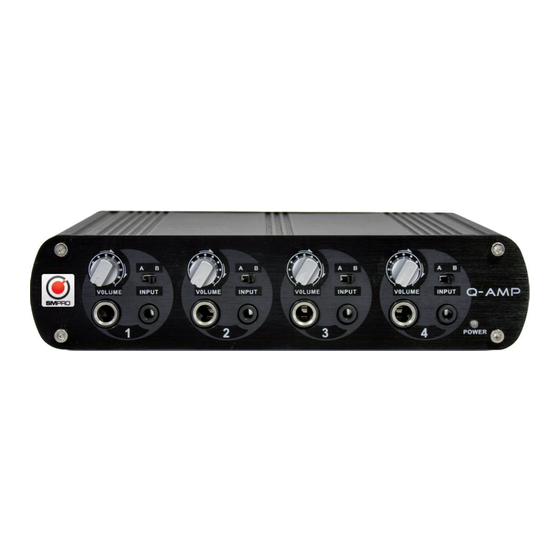

FOREWORD Dear Customer, Thank you very much for expressing your confidence in SM Pro Audio products by purchasing this unit. The Q-Series have been designed to be used as standard tools for home/pro studios, P.A. rental companies, Schools and in many other situations where audio products would be used. - Page 4 This allows two completely independent monitor signals to each set of headpho- nes connected to the Q-Amp! Ever had the drummer wanting a different mix feed from the keyboard player? I bet you have and now it is finally possible using the Q-Amp. 4. Q-Amp FRONT panel The Q-Amp has four independent headphone amplifiers or line distribution channels.
-
Page 5: Power Supply
Connect a stereo (L&R) program source (2 x 1/4” Inch Jacks) to the rear of the Q-Amp using one of the available 2 x stereo input pairs on the rear panel. You can also connect a Mono signal to the input channel and split the signal into both sides of the headphone.Connect a set of headphones using a stereo 1/4 Inch cable to... - Page 6 8. Q-DI Main Features Professional, multi-purpose DI Box/ Line mixer for stage and studio ap- plications. • Four totally independent DI Box units in 1/2 RU package • Independent 20dB PAD switch per channel • Independent earth (Ground) lift switch per channel •...
- Page 7 11. Q-DI Back panel 11.1 Balanced XLR outputs Balanced signal output to connect to a mixer, stage box, etc. 11.2 Unbalanced RCA MIX output Your own independent mix for monitoring. 12. APPLICATION 12.1 Using the Q-DI as a DI Box Connect the signal you would like to convert from unbalanced to balanced to the Q-DI via a 1/4 inch unbalanced jack to one of the channel inputs on the front panel of the unit.
- Page 8 14. Q-Pre Main Features Professional, multi-purpose multi- channel pre-amplifier system for studio applications. • Four totally independent pre-amplifiers in half 19” rack package • High quality audio • 4 x balanced inputs • 4 x unbalanced outputs • Phantom On/Off per 2 channels •...
-
Page 9: Specifications
18. APPLICATION Using the Q-Pre It could not be simpler to use and operate the Q-Pre. Each of the four pre-amplifier channels has its own input and output and variable gain control. Three steps: 18.1 Simply connect a signal for processing to one of the XLR balanced inputs on the front of the Q-Pre. - Page 10 20. W arranty 20.1 Warranty Card To be protected by this warranty, the buyer must complete and return the enc- losed warranty card (signed/stamped by retail dealer) within 14 days of the date of purchase to SM Pro Audio (see address below 3). Failure to return the card in due time (date as per postmark) will void any extended warranty claims.
- Page 11 20.4 Warranty Regulations 20.4.1. Warranty services will be furnished only if the product is accompanied by an original retail dealer‘s invoice. Any product deemed eligible for repair or replace- ment by SM Pro Audio under the terms of this warranty will be repaired or replaced in the best possible manner.
- Page 12 ALL RIGHTS RESERVED © 2012 SM Pro Audio All illustrations, descriptions and technical specifications are subject to change without prior notice. SM Pro Audio Service Department W25, 26-28 Roberna St Moorabbin Melbourne, Victoria Australia 3189 www.smproaudio.com...
