Summary of Contents for ORANGE VT-1000
- Page 1 ALVE ESTER -1000...
-
Page 2: Thank You
To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. -
Page 3: Table Of Contents
ONTENTS Contact Details ............................4 Important Safety Instructions ......................... 5 How Does The Orange VT1000 Differ From Other Commercially Available Valve Testers? ....7 Before Using Your VT1000 ........................9 Features and Functions ......................... 11 What will my VT1000 test? ........................12 Valve Sockets &... -
Page 4: Contact Details
WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA Orange Music Electronic (Jiaxing) Ltd 2065 Peachtree Industrial Ct. No 55 Development Zone Road Suite 208 Huimin Economic Development Zone Atlanta, GA 30341 Jiashan... -
Page 5: Important Safety Instructions
You can still get an electric shock when the equipment is turned off and disconnected from the power. Disclaimer: Orange Amplifiers, its suppliers and subsidiaries accept no liability for any damage(s), injury(s) or death incurred from using this product. - Page 6 ALVE ESTER -1000 Do not open the equipment case. There are no user serviceable parts in this product. Refer servicing qualified service personnel. Unauthorised modification of this equipment will invalidate any warranty. If the product does not operate normally when the operating instructions are followed, then refer the product to an authorised service engineer.
-
Page 7: How Does The Orange Vt1000 Differ From Other Commercially Available Valve Testers
ALVE ESTER -1000 VT1000 D RANGE IFFER THER OMMERCIALLY VAILABLE ALVE ESTERS Commercial valve testers have been available, almost since valves were invented, incorporating many excellent techniques and designs over the years. However, the vast majority have a number of common features, which we considered to be a barrier to the modern valve user namely: ... - Page 8 We are passionate about valve technology and our aim throughout has been to make the Orange VT1000 a sophisticated, modern, truly portable valve tester which is primarily useful but also stylish,...
-
Page 9: Before Using Your Vt1000
EFORE SING With the VT1000, Orange has designed a compact, safe and simple alternative to the large, dangerous and complicated valve testers of the past. However, despite its small size the VT1000 Valve Tester is a highly accurate and sensitive piece of test equipment, and should be treated as such. - Page 10 ALVE ESTER -1000 3. Do not test hot or warm valves. The VT1000 uses high voltages to ensure accurate readings from the valves which are tested with the correct voltages as stated in their manuals. Under testing, the valve will become warm and this heat will alter the impedances inside the valve. If the same valve is then repeatedly tested before being allowed to return to room temperature, or if a warm valve is tested having just been used (e.g.
-

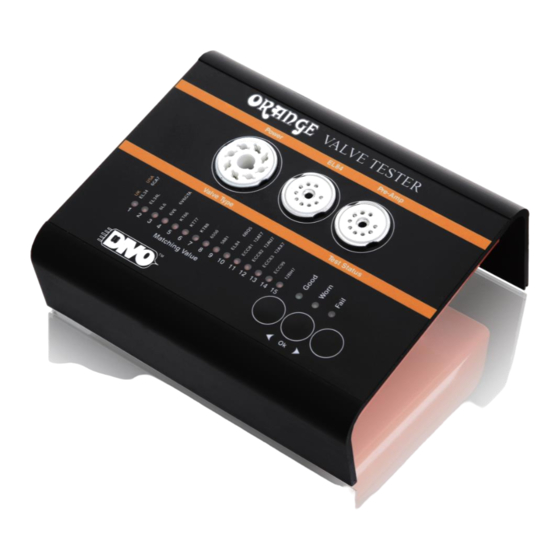

Page 11: Features And Functions
ALVE ESTER -1000 EATURES AND UNCTIONS Description Valve socket for octal power valves Valve socket for EL84 valves Valve socket for pre-amp valves Selected valve type text (both UK and US) Valve matching value (range between 1 & 15) Valve status result: good, worn & fail Control buttons. -
Page 12: What Will My Vt1000 Test
ALVE ESTER -1000 VT1000 TEST The Orange VT1000 valve tester performs a series of comprehensive tests based on manufacturers design specifications and typical valve failure modes. Testing sequences include: Heater filament test: Short circuit Heater filament test: Open circuit ... -
Page 13: Valve Sockets & Valve Selection
ALVE ESTER -1000 & V ALVE OCKETS ALVE ELECTION ALVE OCKETS Valve socket 1 (far left) for octal power valves EL34/6CA7; EL34L; 6L6; 6V6/6V6GTA; KT66; KT77; KT88; 6550; 5881 Valve socket 2 (middle) for EL84 valves EL84/6BQ5 Valve socket 3 (far right) for pre-amp valves ECC81/12AT7;... -
Page 14: Using Your Valve Tester
ALVE ESTER -1000 SING ALVE ESTER Step 1: Decide what valve you would like to test and identify what valve test socket is required for the test. Octal power valves such as EL34s, KT66 etc… use valve socket 1 ... - Page 15 ALVE ESTER -1000 Step 5: Once the test completes and the green, yellow or red indicator lights, then the test is finished; however, as valves may get hot during the test, we recommend that you make sure that the glass envelope is cool before attempting to remove it.
-
Page 16: Valve Matching Value
ALVE ESTER -1000 ALVE ATCHING ALUE ALVE ATCHING ALUE A ‘matching number’ indicated by the LED(s) at the end of the test, is based on a combination of measured parameters to give an indication of how the valve will perform, according to its typical function in an amplifier. - Page 17 ALVE ESTER -1000 ALVE ATCHING ALUE OUBLE RIODE ALVES Double triode (pre-amp valves) have two valves inside one envelope i.e. an A & B side. After the VT1000 has tested a double triode (providing that the valve passes) two matching value LEDs will illuminate.
- Page 18 ALVE ESTER -1000 ALVE ATCHING ALUE OUBLE RIODE ALVES … ONTINUED Due to the concise nature of the LED display, occasional very slight matching value variations may be observed in some pre-amp valves. For example, one side of a pre-amp valve may display a higher or lower value on a subsequent test (no more than a single digit).
-
Page 19: Faq
ALVE ESTER -1000 Why do I need a valve tester when I can test old or suspect valves in an amplifier? There are several reasons why old or suspect valves should not be ‘tested’ directly in an amplifier. Valves can have many different fault conditions; some are obvious, such as internal arcing or inter- electrode short circuits. - Page 20 ALVE ESTER -1000 Some faulty valves fail at different stages in the test, is this normal? Yes, the VT1000 automatically performs many tests on the valve whilst the LED bar-graph elapsed time indicator is running. If the valve fails at any point, the test is automatically terminated and the red ‘FAIL’...
-
Page 21: Free Extended Warranty Offer
Valves supplied with an Orange amp or purchased separately at our online store are covered for 90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever. -
Page 22: News And Merchandise
We also sell merchandise and certain products online such as Valves, clothes, books, footswitches, spare knobs and dials are available from many music retailers as well as direct from orange. Visit us at www.orangeamps.com and also to access our secure online shop.
