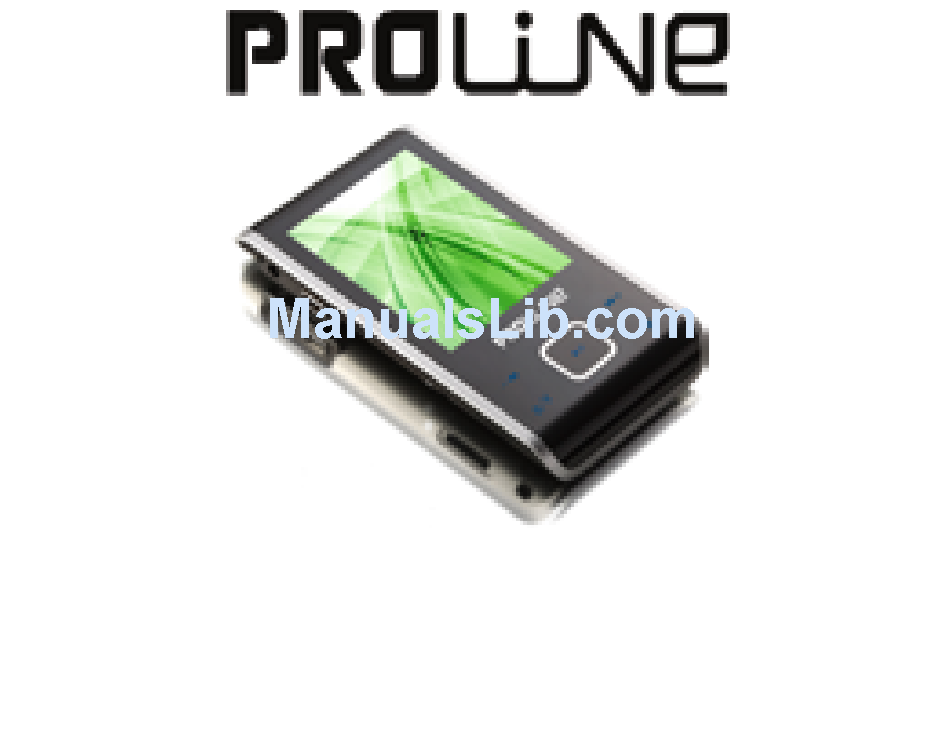

Page 1: Mp3 Player
MP3 Player MP557 User Manual... -
Page 2: Important Safety Warnings
Important Safety warnings To prevent electric shock, do not remove any cover. If anything goes wrong, don't try and fix it yourself, get a qualified service agent to look at it. Small parts do not let young children play with the equipment. Never operate the equipment and try to view video while driving a vehicle. - Page 3 - Continuous use of earphones at high volume can damage the user’s hearing. - Connect earphones with the volume set low and increase it if required. Function features The player supports MP3/WMA /WAV/AAC/APE/FLAC music file formats. Support USB 2.0 to enable faster communication with your PC. The player can record outside voice and FM radio.
- Page 4 Components and Button functions 1. 【 】 :Previous one/ Backward/Volume down 2.【R/V】:Record /Volume button 3. 【 】 :Play/Pause/Confirm /Enter button. Next 【 】 one/Forward/Volume up 【 】 Confirm/Enter/Save/Menu button 6. LCD display 7. Earphone jack 8. USB jack 9. Micro SD/T-FLASH card slot 10.【HOLD】: Power on/off/Lock/Unlock button 11.
- Page 5 approximately 3 hours. To stop recharging, disconnect the USB cable. Notes Before your first time use, please recharge your player. Your computer must be turned on while connected to your player for charging. Do not overcharge your player, or it may shorten the battery’s life. CAUTION Danger of explosion if battery is incorrectly replaced.
- Page 6 To turn unit off: Slide and hold the【HOLD】button in the direction of NOTE: Please reset your player by pressing the RESET hole for 2 seconds while failing to power on or hanging up in power on mode. Please insert Micro SD/T-Flash card as the indicated direction, in case of happening anything wrong, do not insert or pull out the card while power on.
- Page 7 Delete files from the removable USB storage (use the "Delete" command). Remove the player from PC – please follow the steps in case of damaging the player or data loss. Click the left mouse button on the icon that is on the taskbar at the bottom right corner of the desktop.
- Page 8 CAUTION: Do not remove the player while files within the USB Mass Storage are being played on your computer. Do not disconnect the player from your computer while transferring files, or it will cause damage to the player or data loss. Menu Navigation M button: Enter main menu, submenu, confirm or save button.
- Page 9 Repeat Mode Select “Repeat Mode” and short press M / button to enter. Short press 【 】 buttons to select your desired option (e.g. Once, Repeat One, Normal, All Repeat, Intro). Short press M / button to confirm. Short press R/V button to return. Play Mode Select “Play Mode”...
- Page 10 Short press R/V button to return. NOTE: EQ mode is not obvious while playing WMA format music files. User EQ Setup You can setup the EQ as your opinion, just need to pitch on the adjustment frame by 】buttons to adjust. pressing【M】button and then press【...
- Page 11 Radio In main menu, short press【 】buttons to select “Radio“ mode and enter by pressing M / button. Press button to switch between “manual search” and “PRESET” mode. In “Searching” mode, short press【 】button to tune FM frequency between 87.5MHz and 108MHz. (At intervals of 0.1 MHz); Or in “Preset” mode, press 】button to select the preset stations (Total 30 preset stations).
- Page 12 Press【 】button to select previous/next picture. Press and hold M button to return to main menu. NOTE: The player supports JPEG, BMP and GIF format image files. EBook In main menu, short press【 】buttons to select “EBook” mode and enter by pressing M / button.
- Page 13 Long press M button to save and exit the record mode. You can playback the recorded files in Music mode. Whilst in playback mode short press M button to enter into submenu (e.g. Repeat Mode, Play Mode, MSEQ, EQ Sel, User EQ Setup, Display). this part please refer to <music playback submenu>.
- Page 14 Display Setting: Short press【 】buttons to select: Light Time, Brightness, Light Mode. Light Time: Select “Light Time” and press M / button to enter. Press【 】buttons to select: 5 Seconds, 10 Seconds, 15 Seconds, 20 Seconds, 30 Seconds, Always On Short press M / button to confirm.
- Page 15 Language: Short press【 】buttons to select the system language: CHI(Simp), English, Deutsch, Italian, Portuguese, Dutch, French, Spanish, Polish, Russian, Turkish, Czech, Denish, Japanese, Swedish, Korean, Hellenic, CHI(Trad), Thai, Hebrew. Short press M / button to confirm. Short press R/V button to return. System Information: Select “System Information”...
- Page 16 Format the player The player is “FAT” format. If you wish to format it, right click removable disk and choose “Format” mode, then click “Start” to format in operating system. As following pictures show:...
- Page 17 Notice Unlock the button before using the player. Can’t identify the sixth and above sixth level of directory. Our packages use cardboard, polyethylene, and do not use any unnecessary materials As U-disk, the disk will be write-protected if you switch the hold button to lock direction.
- Page 18 Technical Specification Name Description Capacity of Flash Support Micro SD/T-Flash Card, up to 8G; Memory Build-in Flash Memory, up to 8G. USB Interface USB2.0 (High Speed) LCD Display 2.4’ TFT(240x320) Power supply Li-Polymer, 330mAh S/N ratio ≥80dB Audio Frequency Range 20Hz –...
