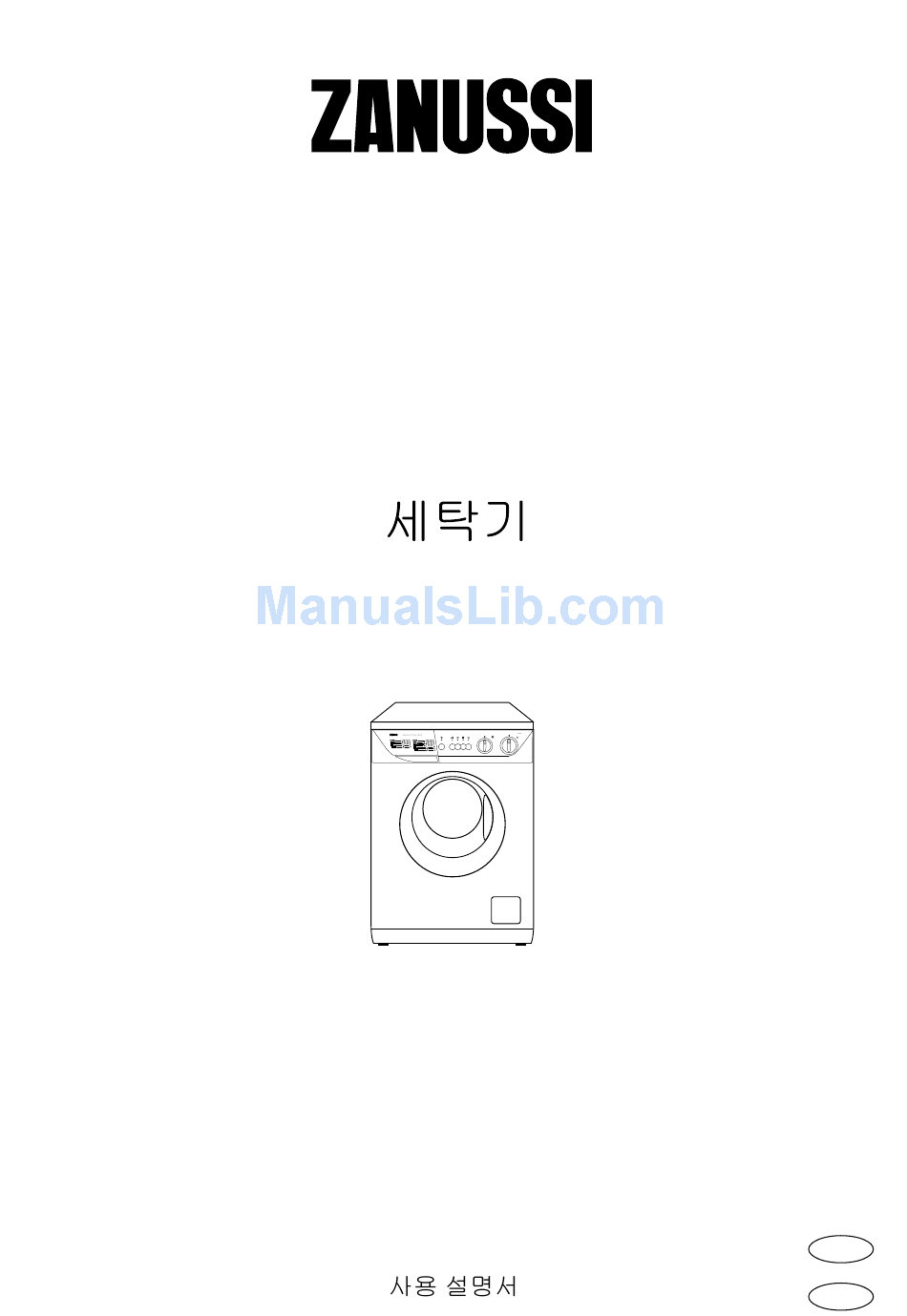

WASHING MACHINE F 804 USER MANUAL 132 996 990... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Maintenance Door seal Disposal Bodywork Detergent dispenser drawer Tips for environmental protection 5 Drain filter Water inlet filter Technical specifications Emergency emptying out The dangers of freezing Installation Unpacking Something not working? 20-21 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Use only the recommended quantities of fabric softener. An excessive amount could damage the • All internal packing must be removed before using laundry. -
Page 5: Disposal
Child safety • Keep all detergents in a safe place out of children’s reach. • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 57 cm MAXIMUM LOAD Cotton Synthetics 2.5 kg Delicates 2.5 kg Woollens SPIN SPEED 850 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220 V/60 Hz TOTAL POWER ABSORBED 2050 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE Minimum... -
Page 7: Installation
Installation Unpacking 7. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. -
Page 8: Water Drainage
The inlet hose is provided with a water stop device, which protects against damage caused by water leaks in the hose which could develop due to natural ageing of the hose. This fault is shown by a red sector in the window “A”. Should this occur, turn the water tap off and refer to your Service Centre to replace the hose. -
Page 9: Your New Washing Machine
Your new washing machine This new machine meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. • The temperature selector dial will allow you to choose the most suitable temperature for your laundry. •... -
Page 10: Use
Control panel 1 Programme chart 6 Extra rinse button A programme chart in Korean is in the front part of By depressing this button on programmes A-B for the detergent dispenser drawer. cotton and linen the machine will perform 4 rinses The programme chart in english is supplied with the instead of 3. -
Page 11: Washing Hints
Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 12: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 13: Operating Sequence
4. Select the desired option(s) Operating sequence Depress one or more buttons depending on the selected programme. Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 14: At The End Of The Programme
7. At the end of the programme The machine stops automatically. If you have selected a programme which ends with the water of the last rinse left in the tub (programmes F - G - J - K - L), drain the water before opening the door. -
Page 15: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 16: Washing Programmes
Programme table Washing programmes for cotton and linen Max. load 6 kg Additional Programme Temp. Fabrics Programme description functions 60°-90° WHITES with PREWASH, for Prewash at 40°C example work garments, sheets, Wash at 60°-90°C household linen, underwear, 3 rinses towels Long spin Wash at 60°-90°C 60°-90°... - Page 17 Programme table Washing programmes for synthetics, mixed fabrics, delicates and wool Max. load 2.5 kg, wool 2 kg Addi-tional Programme Temp. Fabrics Programme description func-tions 40°-60° SYNTHETICS WITH PREWASH, Prewash at 40°C for example underwear, coloured Wash at 40°-60°C items, shirts, blouses 3 rinses Stop with water in the drum(*) 40°-60°...
-
Page 18: Maintenance
Maintenance 1. Door seal 4. Drain filter Check from time to time the door seal and eliminate The drain filter collects threads and small objects eventual possible objects that could be trapped in inadvertently left in the laundry. Check regularly that the fold. -
Page 19: Emergency Emptying Out
6. Emergency emptying out If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 20: Something Not Working
Something not working? Problems which you can resolve yourself. Problem Possible cause • The machine does not start up: • The door is not firmly closed. • The machine is not plugged in or there is no power at the socket. •... -
Page 21: Laundry Is Not Spun Enough
Problem Possible cause • Spinning starts late or the • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
