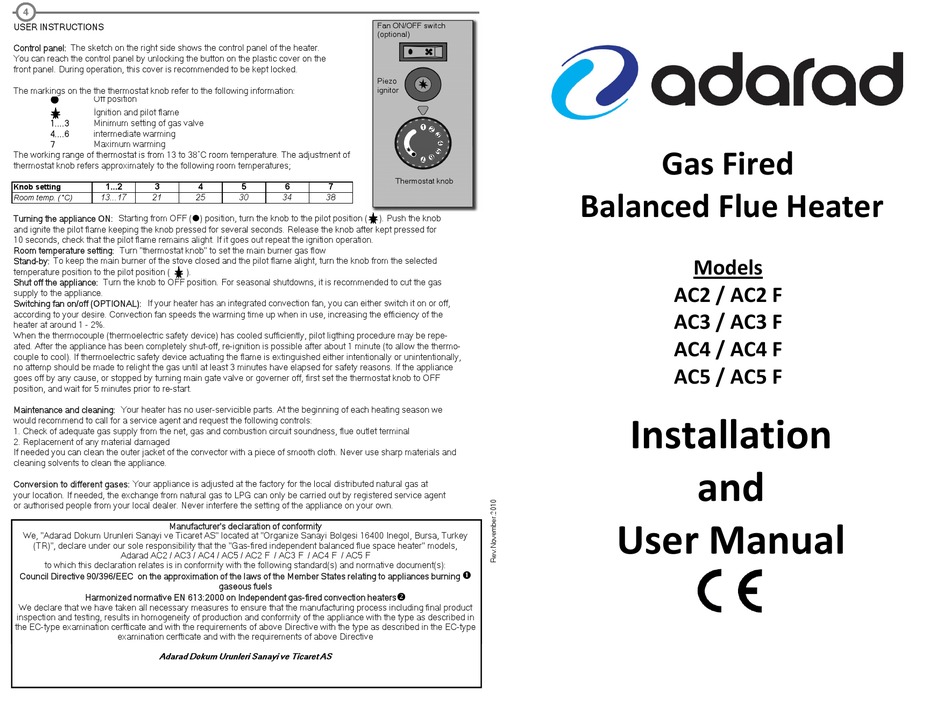

Adarad AC2 Installation And User Manual

4 4 4 4 4

USER INSTRUCTIONS

Control panel: The sketch on the right side shows the control panel of the heater.
You can reach the control panel by unlocking the button on the plastic cover on the
front panel. During operation, this cover is recommended to be kept locked.
The markings on the the thermostat knob refer to the following information:
Off position
İgnition and pilot flame
1....3 Minimum setting of gas valve
4....6 intermediate warming
7 Maximum warming
The working range of thermostat is from 13 to 38˚C room temperature. The adjustment of The working range of thermostat is from 13 to 38˚C room temperature The adjustment of
thermostat knob refers approximately to the following room temperatures;
1...2 3 4
Knob setting
13...17 21 25
Room temp. ( ˚C)
Turning the appliance ON: Starting from OFF ( ) position, turn the knob to the pilot position (
and ignite the pilot flame keeping the knob pressed for several seconds. Release the knob after kept pressed for
10 seconds, check that the pilot flame remains alight. If it goes out repeat the ignition operation.
Room temperature setting: Turn "thermostat knob" to set the main burner gas flow
Stand-by: To keep the main burner of the stove closed and the pilot flame alight, turn the knob from the selected
temperature position to the pilot position ( ).
Shut off the appliance: Turn the knob to OFF position. For seasonal shutdowns, it is recommended to cut the gas
supply to the appliance.
Switching fan on/off (OPTIONAL): If your heater has an integrated convection fan, you can either switch it on or off,
according to your desire. Convection fan speeds the warming time up when in use, increasing the efficiency of the according to your desire. Convection fan speeds the warming time up when in use, increasing the efficiency of the
heater at around 1 - 2%.
When the thermocouple (thermoelectric safety device) has cooled sufficiently, pilot ligthing procedure may be repe-
ated. After the appliance has been completely shut-off, re-ignition is possible after about 1 minute (to allow the thermo-
couple to cool). If thermoelectric safety device actuating the flame is extinguished either intentionally or unintentionally,
no attemp should be made to relight the gas until at least 3 minutes have elapsed for safety reasons. If the appliance
goes off by any cause, or stopped by turning main gate valve or governer off, first set the thermostat knob to OFF
position, and wait for 5 minutes prior to re-start.
Maintenance and cleaning: Your heater has no user-servicible parts. At the beginning of each heating season we
would recommend to call for a service agent and request the following controls:
1. Check of adequate gas supply from the net, gas and combustion circuit soundness, flue outlet terminal
2. Replacement of any material damaged
If needed you can clean the outer jacket of the convector with a piece of smooth cloth. Never use sharp materials and
cleaning solvents to clean the appliance.
C Conversion to different gases: Your appliance is adjusted at the factory for the local distributed natural gas at i t diff t Y li i
your location. If needed, the exchange from natural gas to LPG can only be carried out by registered service agent
or authorised people from your local dealer. Never interfere the setting of the appliance on your own.

Manufacturer's declaration of conformity

Manufacturer's declaration of conformity
We, "Adarad Dokum Urunleri Sanayi ve Ticaret AS" located at "Organize Sanayi Bolgesi 16400 Inegol, Bursa, Turkey We, "Adarad Dokum Urunleri Sanayi ve Ticaret AS" located at "Organize Sanayi Bolgesi 16400 Inegol, Bursa, Turkey
(TR)", declare under our sole responsibility that the "Gas-fired independent balanced flue space heater" models, (TR)", declare under our sole responsibility that the "Gas-fired independent balanced flue space heater" models,
Adarad AC2 / AC3 / AC4 / AC5 / AC2 F / AC3 F / AC4 F / AC5 F Adarad AC2 / AC3 / AC4 / AC5 / AC2 F / AC3 F / AC4 F / AC5 F
to which this declaration relates is in conformity with the following standard(s) and normative document(s): to which this declaration relates is in conformity with the following standard(s) and normative document(s):
Council Directive 90/396/EEC on the approximation of the laws of the Member States relating to appliances burning Council Directive 90/396/EEC on the approximation of the laws of the Member States relating to appliances burning
Harmonized normative EN 613:2000 on Independent gas-fired convection heaters Harmonized normative EN 613:2000 on Independent gas-fired convection heaters
We declare that we have taken all necessary measures to ensure that the manufacturing process including final product We declare that we have taken all necessary measures to ensure that the manufacturing process including final product
inspection and testing, results in homogeneity of production and conformity of the appliance with the type as described in inspection and testing, results in homogeneity of production and conformity of the appliance with the type as described in
the EC-type examination cerfticate and with the requirements of above Directive with the type as described in the EC-type the EC-type examination cerfticate and with the requirements of above Directive with the type as described in the EC-type
examination cerfticate and with the requirements of above Directive examination cerfticate and with the requirements of above Directive
Adarad Dokum Urunleri Sanayi ve Ticaret AS
Fan ON/OFF switch Fan ON/OFF switch Fan ON/OFF switch Fan ON/OFF switch Fan ON/OFF switch
(optional) (optional) (optional) (optional) (optional)
Piezo Piezo Piezo Piezo Piezo
ignitor ignitor ignitor ignitor ignitor
5 6 7
30 34 38
). Push the knob
dj t d t th f t f th l l di t ib t d t
gaseous fuels gaseous fuels
Thermostat knob Thermostat knob Thermostat knob Thermostat knob
Balanced Flue Heater Balanced Flue Heater Balanced Flue Heater Balanced Flue Heater
l t
Gas Fired Gas Fired Gas Fired Gas Fired Gas Fired
Models Models Models Models
AC2 / AC2 F AC2 / AC2 F AC2 / AC2 F AC2 / AC2 F
AC3 / AC3 F AC3 / AC3 F AC3 / AC3 F AC3 / AC3 F
AC4 / AC4 F AC4 / AC4 F AC4 / AC4 F
AC5 / AC5 F AC5 / AC5 F AC5 / AC5 F

Installation

Installation Installation
and and and
User Manual User Manual
Distribuitor: CALOR SRL
Str. Progresului nr. 30-40, sector 5, Bucuresti
tel: 021.411.44.44, fax: 021.411.36.14
www.calorserv.ro - www.calor.ro
