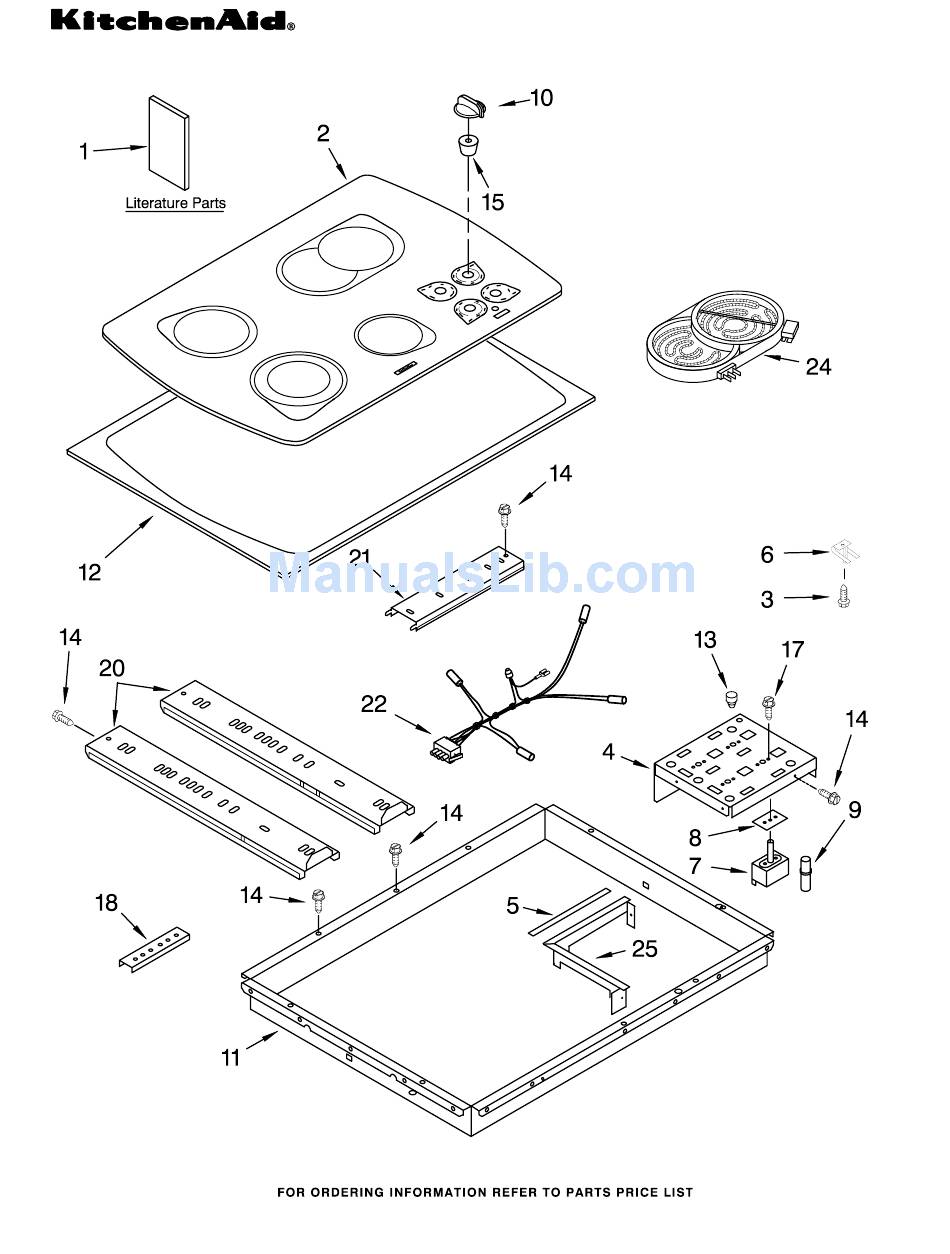

- Page 1 COOKTOP PARTS For Models: KECC507KBL0, KECC507KWH0, KECC507KSS0, KECC507KBT0, KECC507KWW0 (Black) (White) (S.Steel) (Biscuit) (Designer White) 36" ELECTRIC BUILT−IN COOKTOP Part No. 8185795 Rev.A 10−02 Litho in U.S.A. (cre)
- Page 2 COOKTOP PARTS For Models: KECC507KBL0, KECC507KWH0, KECC507KSS0, KECC507KBT0, KECC507KWW0 (Black) (White) (S.Steel) (Biscuit) (Designer White) Illus. Part DESCRIPTION Literature Parts LIT4455836 Installation Instructions LIT8284911 Wiring Diagram LIT8284718 Use & Care Guide LIT3191638 Safe Cooking Tips COOKTOP PARTS Cooktop, Glass 8284887 Black...
- Page 3 MISCELLANEOUS PARTS For Models: KECC507KBL0, KECC507KWH0, KECC507KSS0, KECC507KBT0, KECC507KWW0 (Black) (White) (S.Steel) (Biscuit) (Designer White) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous 3172515 Mtg. Hardware Kit 3192408 Bracket, Support (2) SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga.
