Summary of Contents for Optiview Vehicle Video Recorder

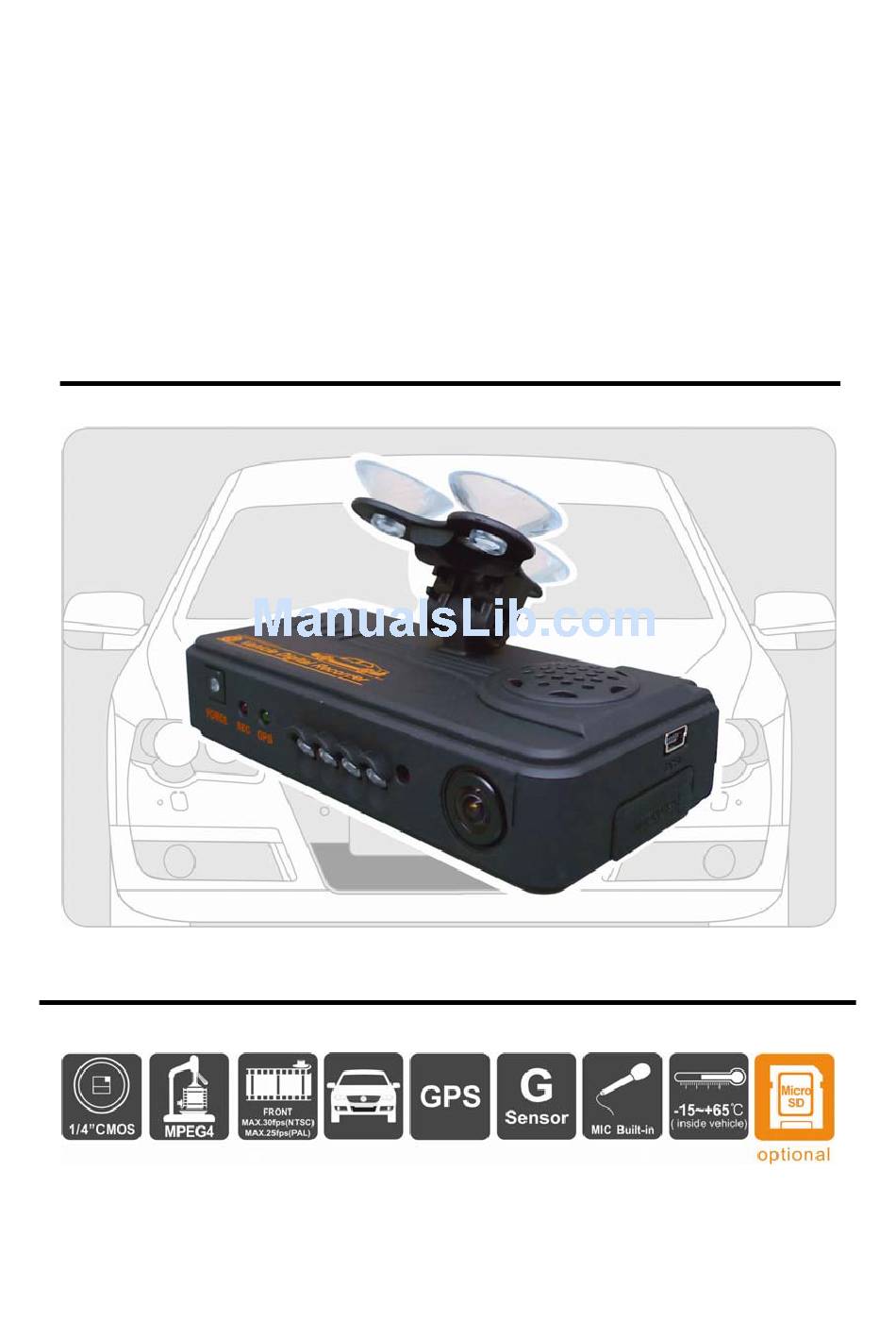

- Page 1 ALL IN ONE Vehicle Video Recorder User Manual 2010 NOV. V1.0...
-
Page 2: Table Of Contents
Table of Contents Features ...................... 1 Specification....................... 1 Structure of Product .................. 3 Dimension ...................... 3 Installation Guide .................... 4 Led Indicator Instruction ................... 5 Software Player Instruction ................ 5 ... -
Page 3: Features
A. Features 1. Ideal for taxi, trucks and buses. 2. Easy to install. Small in size to prevent blocking the driver's view. 3. Plug-n-Play. Both front & back cameras can record synchronously. 4. G-sensor, GPS and Image data will be recorded and playable by software player. - Page 4 Microphone High Sensitivity Microphone. Auto-calibrating by GPS signals. If GPS is not available, the Time Setup built-in clock will be used. G-Sensor Internal 3D G-Sensor. (a) Emergency Button : For emergency recording. Gleams in nighttime. (b) Red light: Recording indicator. In emergency recording, it flashes more frequently.
-
Page 5: Structure Of Product
C. Structure of Product Recording Indicator Indicator Manual Recording Button IR LED Backward Facing Lens DC5V(2) DC5V(1) Forward Facing MICRO SD ★ Caution：Please do not plug the power in both micro-USB terminals. The machine might be damaged. D. Dimension UNIT：mm... -
Page 6: Installation Guide
Installation Guide Make the bracket facing Assemble the sucking disc. Set up the machine in proper upward. position. Adjust the viewing angle. Connect the power cable (plug either 5 or 6 socket, please do not plug in both sockets at the same time) Plug in the cigarette adapter. -
Page 7: Led Indicator Instruction
F. Led Indicator Instruction Recording Indicator Indicator Backward Facing Lens Manual Recording Button IR LED 1. Power On / Recording Turn the power on and machine will start and finish booting within one minute. Green light will flash during system boot up procedure. The machine will starting recording automatically and the Red LED light will be flashing. - Page 8 1. Play Video Start the program “IBoxPlayer2.exe” (you can locate it in the CD-R), The main screen will be like the picture below. Press button, and choose where you insert memory card to play the files, or click on button to manually select the memory card or recorded file in the hard disk.
- Page 9 Play next frame Play next file Open file Disk back up Google map Setting Snapshot Format SD Disk Disk Backup Save the recorded files to your PC. Click on the button and it will pop up the screen as below. Step1: Select the origin for the SD card Setp2: Select the recorded file which you want to backup...
- Page 10 Step3: Choose the backup file format (1)SD Card Backup (*.sd) (2)AVI File Backup (*.avi) Backup format： (1) SD card backup format SD File type (*.sd) (2) AVI File Backup(*.avi) When using AVI format, it will produce an AVI file and a file for subtitle display (*.srt).
- Page 11 Video Select the video Quality: High/ Normal / Low Quality Set the recording frame rate for front camera NTSC(5 / 10 / 15 / 30) fps PAL(5 / 10 / 15 / 25)fps Video Frame Turn the recording off for inside camera Set the recording frame rate for inside camera (5 / 10 / 15)fps (NTSC/PAL)
- Page 12 You can set up the speed unit here. Km/h: kilometer per hour Unit Of Mile/h: mile per hour Speed Knot：knot per hour ★ Note：1 KM=0.6214 mile, 1 mile=1.6093KM, 1 Knot =1.853KM Time Zone: Time zone GMT (GPS auto time correction) Audio Audio recording ON/ OFF Recording...
-
Page 13: Formatting Memory Card
Speed Meter & Volume Direction Speed Meter Latitude & Longitude Volume Coordinates Video Search & Play Speed Video Search Play speed (1)Video Search：You can use the mouse to drag the bar to search the video quickly. (2)Play Speed：Support 2x, 4x fast forwarding and -2x, -4x slow play mode. - Page 14 Window Vista / 7 security restrictions. Please run the program as Administrator to prevent from this problem. LOCK The steps are shown in below: 1. Insert the CD in your PC and open the directory ”IBoxPlayer” Find and run ”IBoxPlayer” program and click on “Format SD Disk”.
-
Page 15: Restoring Memory Card
3. When formatting is completed, please insert the card into the machine for recording. Open the plastic Insert the SDHC Press the SDHC Close the plastic lid . card in correct card in until it is lid. direction. set. Restoring Memory Card When you have backup the recorded files into PC and want to use the SDHC card for other purposes, you have to restore it first so it can be used correctly. - Page 16 How to restore it? Steps: Insert the SDHC card into Connect the card reader the card reader (Please with the PC make sure the direction is correct) 3. Insert the CD in your PC and open the directory ”IBoxPlayer” Find and run ”IBoxPlayer”...
