Summary of Contents for Zanussi Electrolux DCE5655

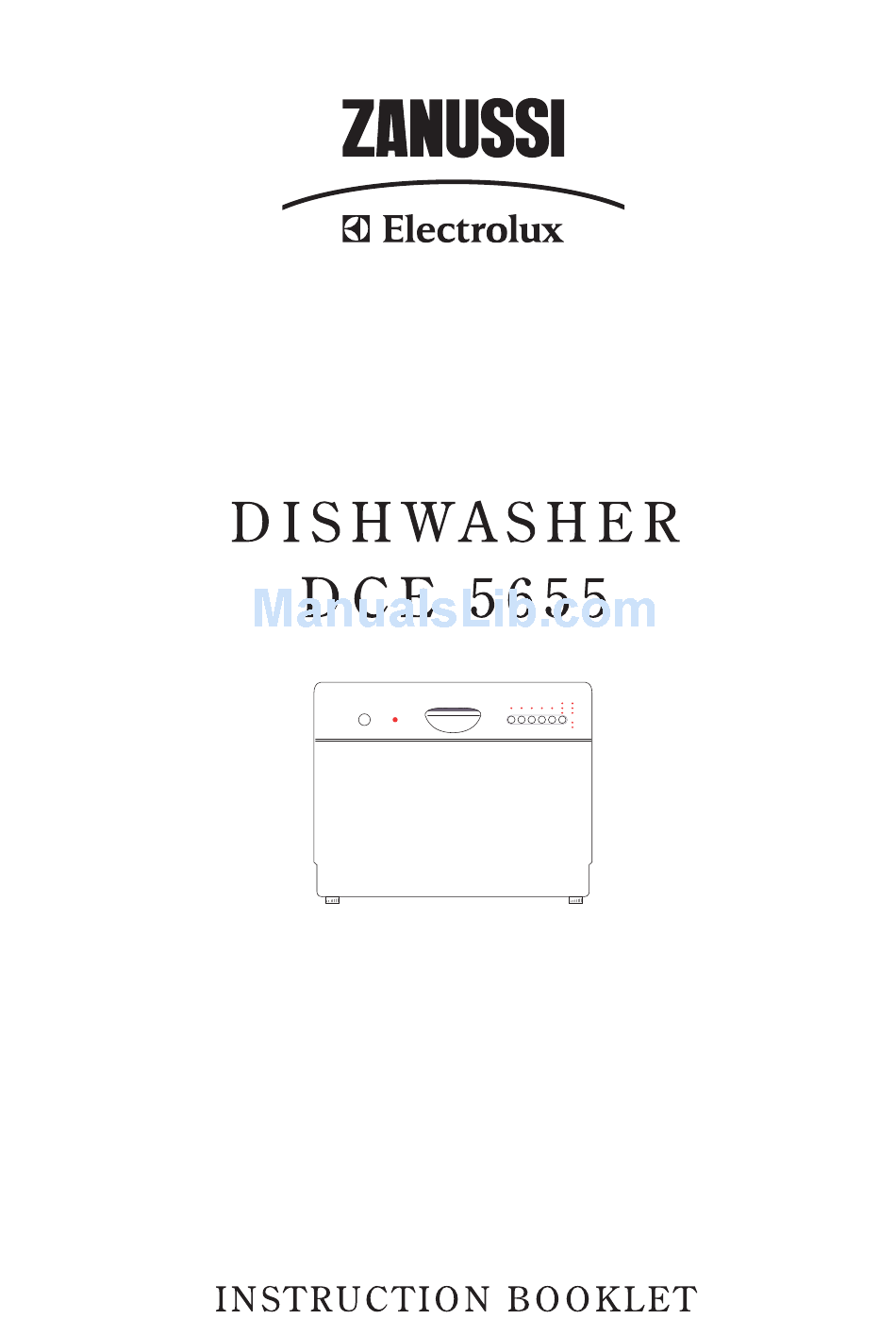

- Page 1 822 61 10-23...
-
Page 2: Table Of Contents
Contents For the Installer For the user Technical Specifications Safety Information Unpacking Description of the appliance - Damages - Spray arm - Use - Coarse strainer/microfilter - Identification of materials - Fine filter - Detergent dispenser Installation - Rinse aid dispenser - Positioning - Water softener - Water inlet... -
Page 3: Safety Information
Safety information Before installing and first using the dishwasher, read this instruction booklet carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the dishwasher are thoroughly familiar with its operation and safety features. Save these instructions and make sure they remain with the dishwasher if it is moved or sold, so that everyone using it through its life can be properly informed on appliance use and safety. -
Page 4: Description Of The Appliance
Description of the appliance - 4 -... -
Page 5: Spray Arm
Spray arm (1) Do not fill the rinse aid dispenser with liquid detergent. It is important to keep all the holes in the spray arm clear. A clogged hole can seriously affect washing efficiency. Zanussi recommends the use of Finish dish- If the spray arm needs cleaning, unscrew the nut anti- washer detergent and Rinse Aid. -
Page 6: The Control Panel
The control panel Indicator and control lamps Indicator lamps delayed start On/Off button Water softener Delay start button button Functions Programme Control lamp button buttons Water softener and functions button: In addition to selecting a programme you can press these two buttons to adjust the setting of the water softener. -
Page 7: Adjusting The Water Softener
Adjusting the water softener To prevent limescaling on the dishes and to the interior of the Contact your local Water Authority to find the dishwasher, the dishes must be washed with soft water. exact water hardness level for your area. This dishwasher is equipped with a water softener, where tap- The water softener has 5 settings: water which is harder than 4 °d (german degree) is softened. -
Page 8: Programme Chart
Programme chart All types of Coffee cups, Type of Plates and dishes delicate items dishes cooking pots • heavily Type of • normaly • normaly • lightly • lightly soiled soil: soiled soiled soiled soiled • dried-on food • dried-on food remnants remnants especially egg-... -
Page 9: Using The Appliance
Using the appliance Starting the programme Pause function 1. Scrape or rinse off solid food remnants. With the pause function the programme can be temporarily interrupted for a short period of time. 2. Load the dishwasher. (See the basket and loading). 1. -
Page 10: Loading And Unloading
Loading and unloading the dishwasher How to load the dishes Baskets The illustration shows the dishwasher loaded with six Main basket place settings. Your own dishes are not likely to be Cutlery basket identical to this load, but if you follow the advice below we are sure you will be pleased with the results. -
Page 11: Maintenance And Cleaning
Maintenance and cleaning General cleaning Moving the dishwasher Inspect the filters and spray arm nozzle before re-loading If you have to move the dishwasher (you are moving the dishwasher and remove any food scraps. Wipe round house, etc): the rubber gasket at the bottom of the door to remove 1. -
Page 12: Something Not Working
Something Not Working Before calling out an engineer, please check through the details below because some faults can be rectified easily without the need to call out an engineer. If an engineer is called to resolve a problem listed below or to repair a fault caused by incorrect installation or mis-use a charge will be made, even if the appliance is under guarantee. -
Page 13: Service
For general enquiries concerning your Zanussi Electrolux For Customer Service in Ireland please contact us at appliance or for further information on Zanussi Electrolux the address below: products, please contact our Customer Care Department by letter or telephone at the address below or visit our Zanussi Electrolux website at www.zanussi.co.uk... -
Page 14: Guarantee Conditions
Standard guarantee conditions We, Zanussi Electrolux, undertake that if within 12 months from the date of the purchase this ZANUSSI ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 15: Technical Specifications
Installation instructions Any electrical work required to install this appliance, should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance, should be carried out by a qualified plumber or competent person. Technical specifications Capacity: 6 place settings accordance EN 50242... -
Page 16: Unpacking
Unpacking Damages If the dishwasher has been damaged during transport, you should immediately notify the company responsible for delivering it. If you discover any damage, faults or that anything is missing, you should notify your retailer immediately. Never leave packaging material in a place where children may play with it. -
Page 17: Installation
Installation Positioning The dishwasher is intended to be installed on a kitchen sink, worktop or built-in. To function properly, make sure that the appliance is level. Its height can be adjusted with the adjustable feets (5 mm each). See the illustration for built-in measurements. -
Page 18: Water Drainage
Installation Water drainage To protect the dishwasher against water damage it is equipped with a water safety system. In the event of a fault the drain-pump starts automatically and the remaining water inside the dishwasher is pumped out. The water safety system also works when the dishwasher is switched off. -
Page 19: Power Supply
Power supply The dishwasher is supplied with a lead and electrical plug for connection to a 230 V, 13 A earthed wall socket. Before any work is carried out on the dishwasher, it must be isolated from the electric mains supply, for example by removing the plug from the wall socket. - Page 20 © Electrolux plc 2003...
