Summary of Contents for MPI FCX

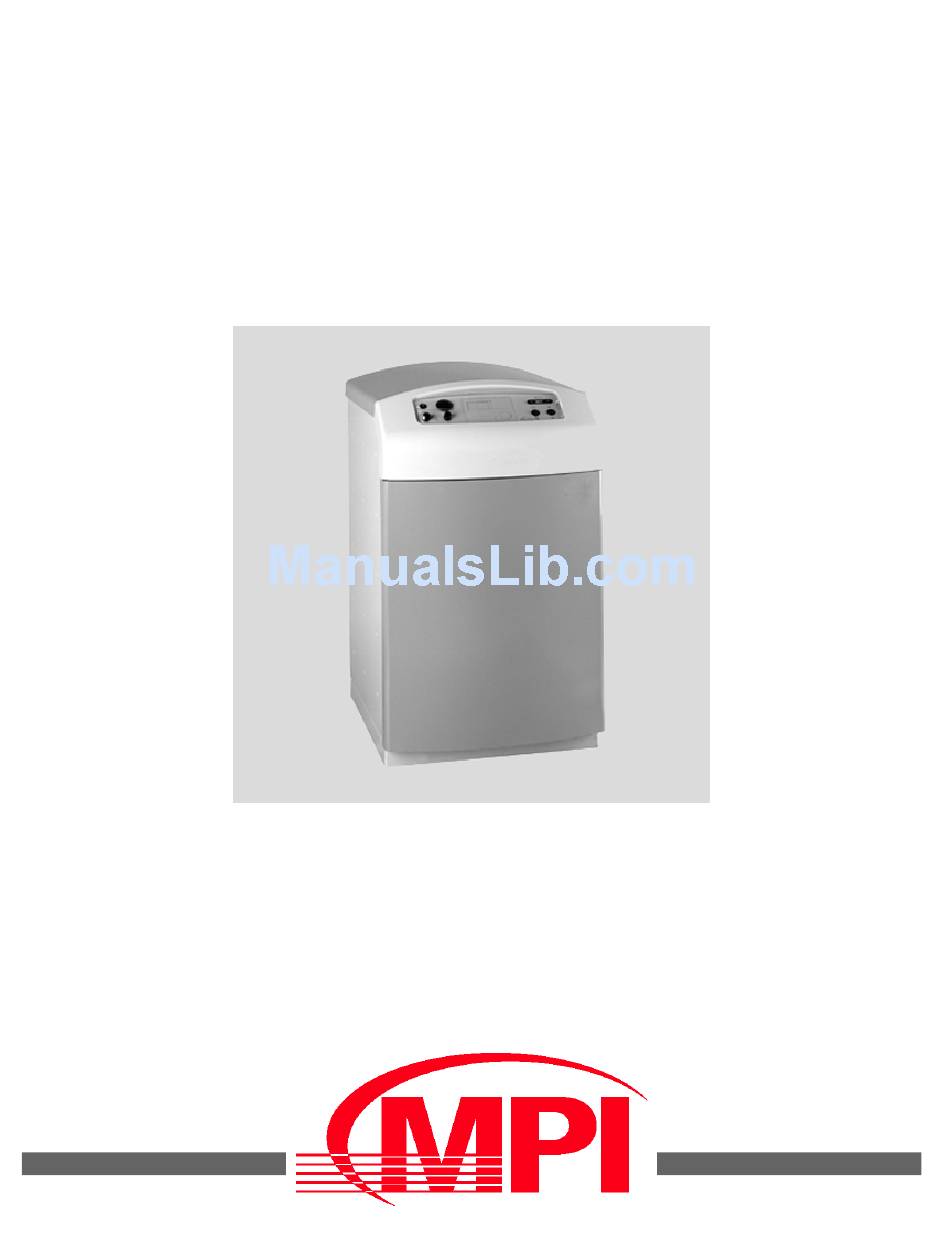

- Page 1 & & & )&; T30.30306.02...
- Page 2 - PRODUCT DESCRIPTION........................3 - DESIGNATION OF COMPONENTS ..................... 4 - BOILER OPERATION..........................5 - PRODUCT STANDARD RATINGS ....................... 6 - DIAMETER OF PIPE CONNECTIONS....................6 - OPENING THE UNIT..........................7 - LOCATION OF THE UNIT ........................7 - FLUE CONNECTIONS AND ROUTING ....................8 - CONDENSATE DRAIN CONNECTION....................
- Page 3 Model FCX oil fired boiler utilizes a sealed combus- • A control panel assembly and all electrical con- tion system that operates at a temperature at which trols for operation of the boiler, including a wa- the flue products will condense. The flue products ter temperature thermometer in circuit 1 temperature is so low that the unit is suitable for use •...
- Page 4 View from above Front view Rear view...
- Page 5 Circuit heating return circuit heating output circuit heating output Combustion air is drawn into the oil burner by the Water is circulated through the boiler heat exchan- burner fan through the air intake hose connected to ger and condenser circuits where it is heated by the the coaxial flue/combustion air intake separator combustion of the oil burner.
- Page 6 Ratings for Model FCX are provided in the following table: Rated Output BTUH 76,000 Rated Input BTUH 81,250 Combustion Chamber Length Inches 8.98 Combustion Chamber Diameter Inches 11.5 Combustion Chamber Volume Cu. Inches Combustion Prod. Circuit Volume Cu. Inches 3051 Flue Pressure Drop Inches H2O 0.10...
- Page 7 To open Model FCX to access for installation, and/ or service, follow these steps : - Remove the control panel escutcheon molding (2) by grasping it on both sides and pulling it outward towards you and up. The escutcheon will come free of the attachment clips leaving the con- trol panel exposed.
- Page 8 Connection of the coaxial flue/combustion air piping system is in the back of the unit to the separator tube assembly. The combustion products are ven- ted from the boiler and condenser through the cen- ter of the coaxial tube, while the combustion air is supplied through the outside ring of the coaxial tube.
- Page 9 A90.12172 Black N40.12165 25 - 45 deg Tile Tile N40.12166 35 - 55 deg Tile Tile Slate - N40.12167 35 - 55 deg Black Shingle - joint fitting - 45 ° bend 90 ° bend 3.15 inch 4.92 inch N40.28395 45 deg (80mm) (125mm)
- Page 10 All flue-piping components must be assembled to provide an airtight flue/ combustion air system. The flue/combustion air system piping may be either horizontal or vertical or a combination of both, ob- Application of liquid soap over the flue pipes to be serving the following: joined will aid in assembly of the parts.
- Page 11 Options: - 1 90 deg concentric elbow Options: - 3 Concentric extensions - 1 90 deg concentric elbow - 2 45 deg concentric elbows - Concentric extensions - 1 concentric vertical terminal - 1 concentric vertical terminal - 1 sleeve tile roof flange - 1 sleeve tile roof flange - 1 roof plate - 1 roof plate...
- Page 12 90° elbow 90° elbow 45° elbow 45° elbow View from above View from above rear boiler rear boiler Options: Options: - 1 45 deg concentric elbow - 1 90 deg concentric elbow - 1 90 deg concentric elbow - 3 Concentric extensions - Concentric extensions - 3 45 deg concentric elbows - 1 concentric vertical terminal...
- Page 13 90° elbow 45° elbow view from above rear boiler 1 in Options: - 1 45 deg concentric elbow - 2 90 deg concentric elbow - 1 concentric extension - 1 straight horizontal flue kit Connection of the condensate drain piping system is to the back of the unit beneath the flue/combus- tion air separator tube assembly.
- Page 14 Water circuit connections are made in the back of • Isolation valves may be used in the various cir- the unit utilizing the four 1" male pipe thread cou- cuits to facilitate boiler maintenance without plings provided. Model FCX can be connected to va- having to completely drain each circuit.
- Page 15 Various typical water circuits (cont) &RQQHFWLRQ WR D GRXEOH KHDWLQJ FLUFXLW & 5DGLDWRU FLUFXLW ‡ ‡Ã ‡Ã & 8QGHUIORRU KHDWLQJ FLUFXLW q q q q &RQQHFWLRQ WR D GRXEOH KHDWLQJ FLUFXLW ZLWK D GRPHVWLF KRW ZDWHU SURGXFWLRQ V\VWHP & 5DGLDWRU FLUFXLW ‡...
- Page 16 Electrical power and control connections are made down caused by an unrelated electrical circuit fault, to pigtail leads that exit through a hole in the right the unit and any related electrical components rear of the unit (facing the front of the unit). should be connected to a separate branch circuit specifically dedicated for that purpose.
- Page 17 The hole in the right rear of the unit is a large flat Route the factory supplied main power pigtail leads oval. Mount a Listed 2 x 4 inch, "HandiBox" type through the connector from inside the unit and secu- junction box over the oval hole in such manner that re the connector clamp on the wires.
- Page 18 Before starting normal operation of the boiler and freeze solution if appropriate. Open any shut- heating system, perform the following final installa- off valves in the system. tion procedures: • Fill the condensate drain trap with water. • Leak-check the flue/combustion air system to •...
- Page 19 While the oil burner is adjusted at the factory, it is re- commended that the operating characteristics of the burner be determined at start-up and readjusted if necessary. Run the unit long enough at the burner maximum firing rate to make sure the burner has reached a stable maximum operating temperature.
- Page 20 It is recommend that the boiler and flue/combustion air system be inspected and maintained annually by a qualified technician. To gain access to the inside of the unit, first remove plate by removing the screws in the rear and lifting. the control panel cover escutcheon by grasping it on Remove the control panel cover screws and remove both sides and pulling directly outward towards you...
- Page 21 Once adjusted properly, regular maintenance of the if necessary. Cleaning and adjustment is always ap- oil burner is not generally required. A routine exami- propriate during periodic inspection. nation of the burner should include examination of If burner firing rate adjustment is required, follow the burner fan and nozzle for dirt and the spark elec- instructions in "Adjusting the Oil Burner".
- Page 22 Replacement of the thermostats or the thermometer remove the thermostat. Replace the thermos- requires removal of the bulb from its location and the tat with another, routing the bulb capillary the control from the control box. same way as the original, replacing the bulb properly into the pocket as far as possible.
- Page 23 During the course of seemingly normal operation, there may be operating faults experienced in the system. Some of the more common faults that may be encountered are: - The burner may shut down for any of several reasons, at which point the burner safety device light (red) on the control pa- nel will be ON and the there will be a green fault in- dicator light lit on the oil burner.
- Page 24 MPI - P.O. BOX 3408 PRINCETON, NEW JERSEY 08543 - PHONE 866•588•HEAT (4328) | 570•258•SAVE (7283) | www.MZBoiler.com...
