Summary of Contents for Clarke CDM65
- Page 1 3 - 1 SUPER DETECTOR 3 - 1 SUPER DETECTOR MODEL No: CDM65 Part No: 4500135 OPERATING & MAINTENANCE INSTRUCTIONS 1207...
- Page 2 Thank you for purchasing your new CLARKE 3 - 1 SUPER DETECTOR. Before use, please read this instruction manual thoroughly and follow all directions carefully. The CLARKE 3 - 1 super detector is ideal for DIY and Trade use. GUARANTEE • This product is guaranteed against manufacturing faults for a period of 12 months from the date of purchase.
-
Page 3: Parts Identification

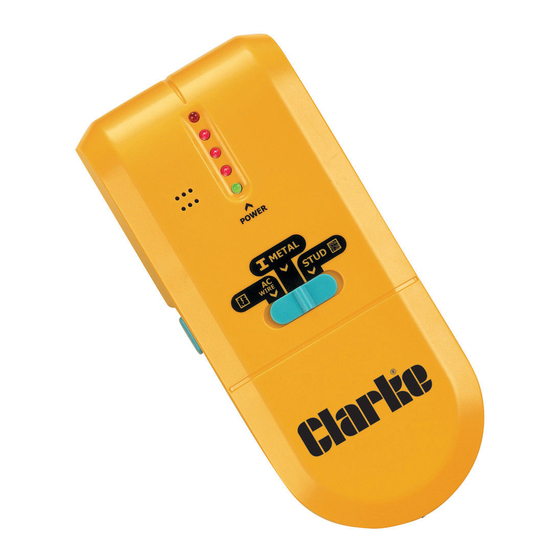

PARTS IDENTIFICATION Groove Signal LEDs Power Indicator Test Button Scan mode selector Inserting the battery Remove the battery door on the rear of the unit. Connect a 9V PP3 battery to the battery clip. Place the battery into the compartment. Replace the battery door. - Page 4 AC VOLTAGE DETECTION Set the selector switch to the AC WIRE position. Calibration Hold the unit in the air away from any metal objects, Press and hold the TEST button. • The unit will beep twice when calibration is complete. Do not release the TEST button.
- Page 5 AC VOLTAGE DETECTION Notes • Some walls containing metal fibres (used in fireproofing) will cause the detector to register a voltage over a wider area. • Rubbing or banging the wall may generate static electricity, causing a false reading. • Touching a damp wall being tested may also cause a false positive reading.
- Page 6 METAL DETECTION Set the selector switch to the METAL position. Calibration Hold the unit in the air away from any metal objects, Press and hold the TEST button. • The unit will beep twice when calibration is complete. Do not release the TEST button. Using Keep holding the TEST button and place the unit on the wall, slowly move the unit sideways across the wall.
- Page 7 METAL DETECTION Notes • Wearing rings or other hand jewellery may cause a false reading.
- Page 8 STUD DETECTION Set the selector switch to the STUD position Calibration Place the unit against the wall, press and hold the TEST button. • The unit will beep twice when calibration is complete. Do not release the TEST button. Using Keep holding the TEST button and slowly move the unit sideways across the wall.
- Page 9 STUD DETECTION Notes • You can use the detector on wallpaper, however it may not be effective on some types of foil backed wallpapers. • If the unit is placed over studding during the calibration, the unit will not work, simply re-calibrate the unit 150 mm away from the last place.
- Page 10 TIPS • Re-calibrate the unit frequently to avoid inaccurate readings. • Take several readings vertically above, below, to the left and right to confirm the reading. Detection Depths Iron Pipe (25mm) ..........30 mm Studding (30 x 30mm) ........18 mm AC Voltage (90-250V @50/60 Hz) ....
-
Page 11: Specifications
SPECIFICATIONS Model: ..............CDM65 Part No: ............. 4500135 Battery ......... 9V, PP3 or Equivalent Weight: ..............164 g Dimensions: ....(H x W x D) 151 x 65 x 31 mm Storage Temperature ......-20 C To 50 Operating Temperature ......-7...
